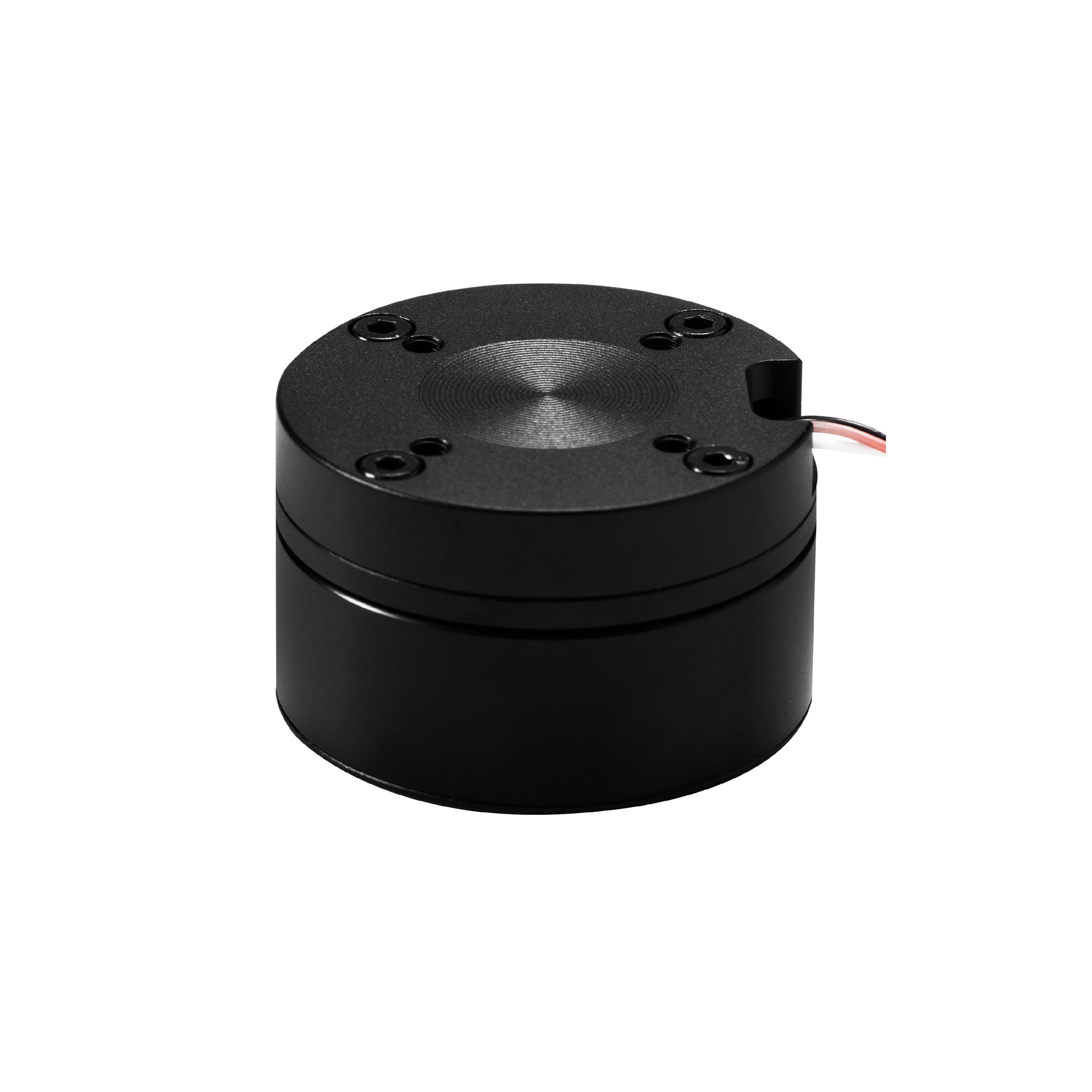

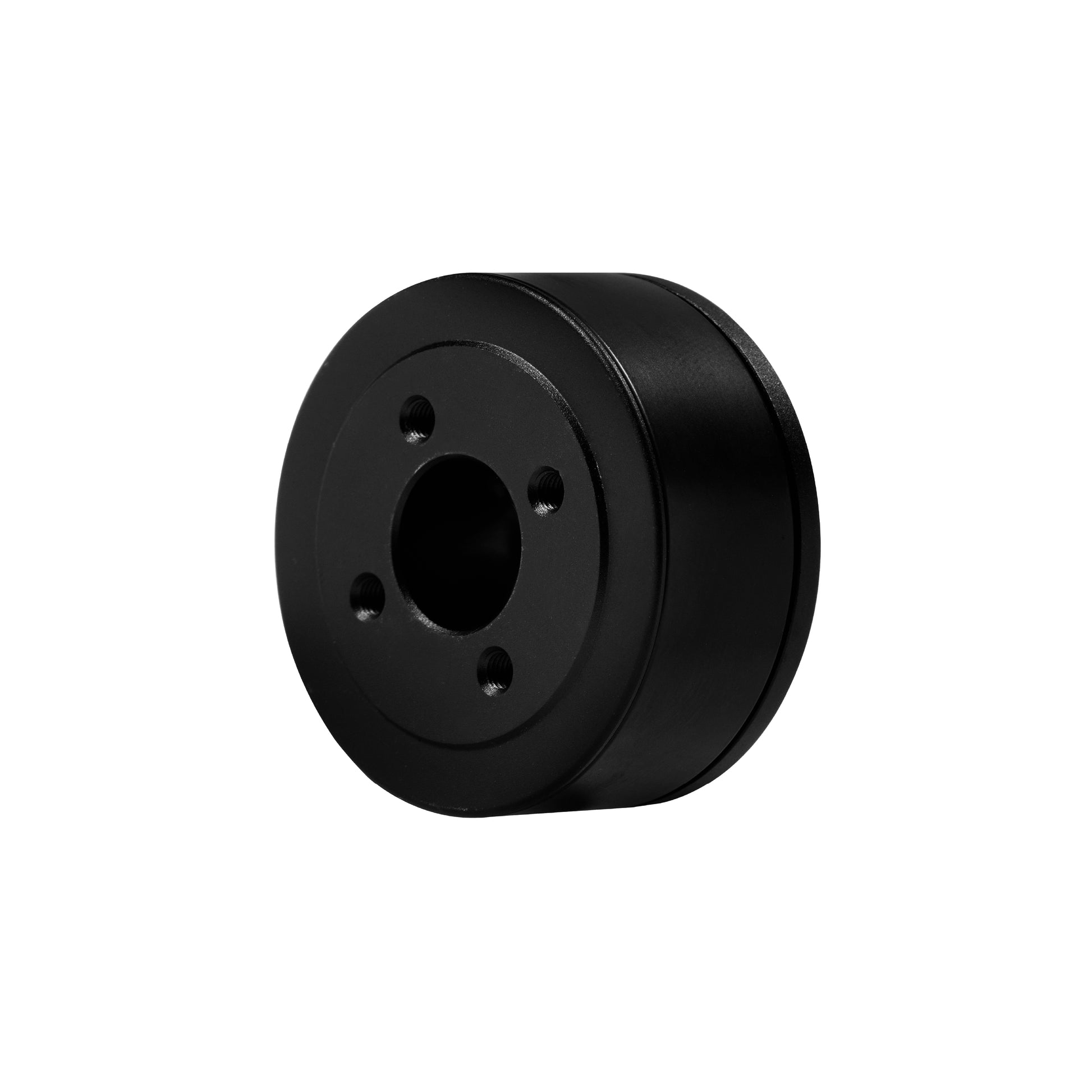

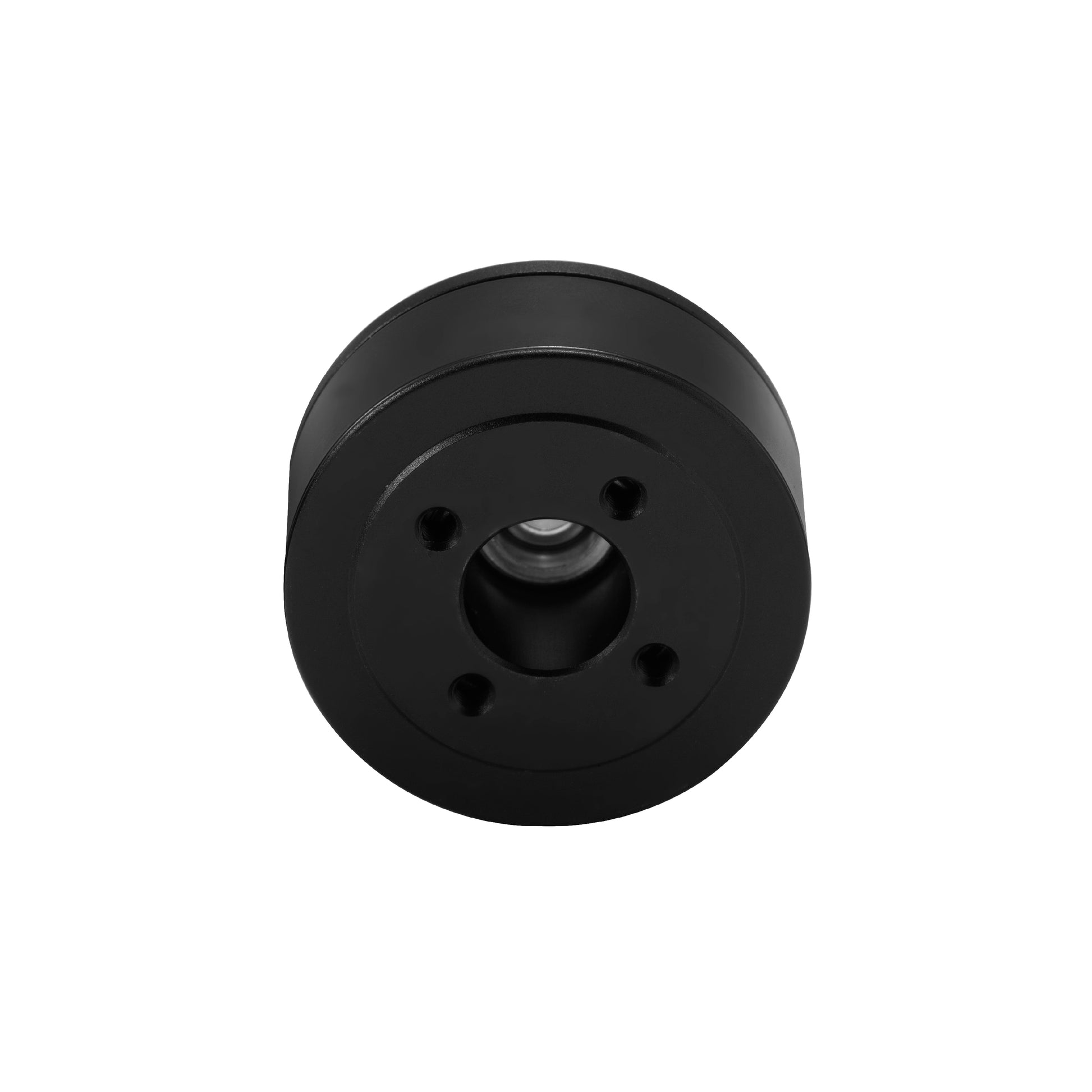

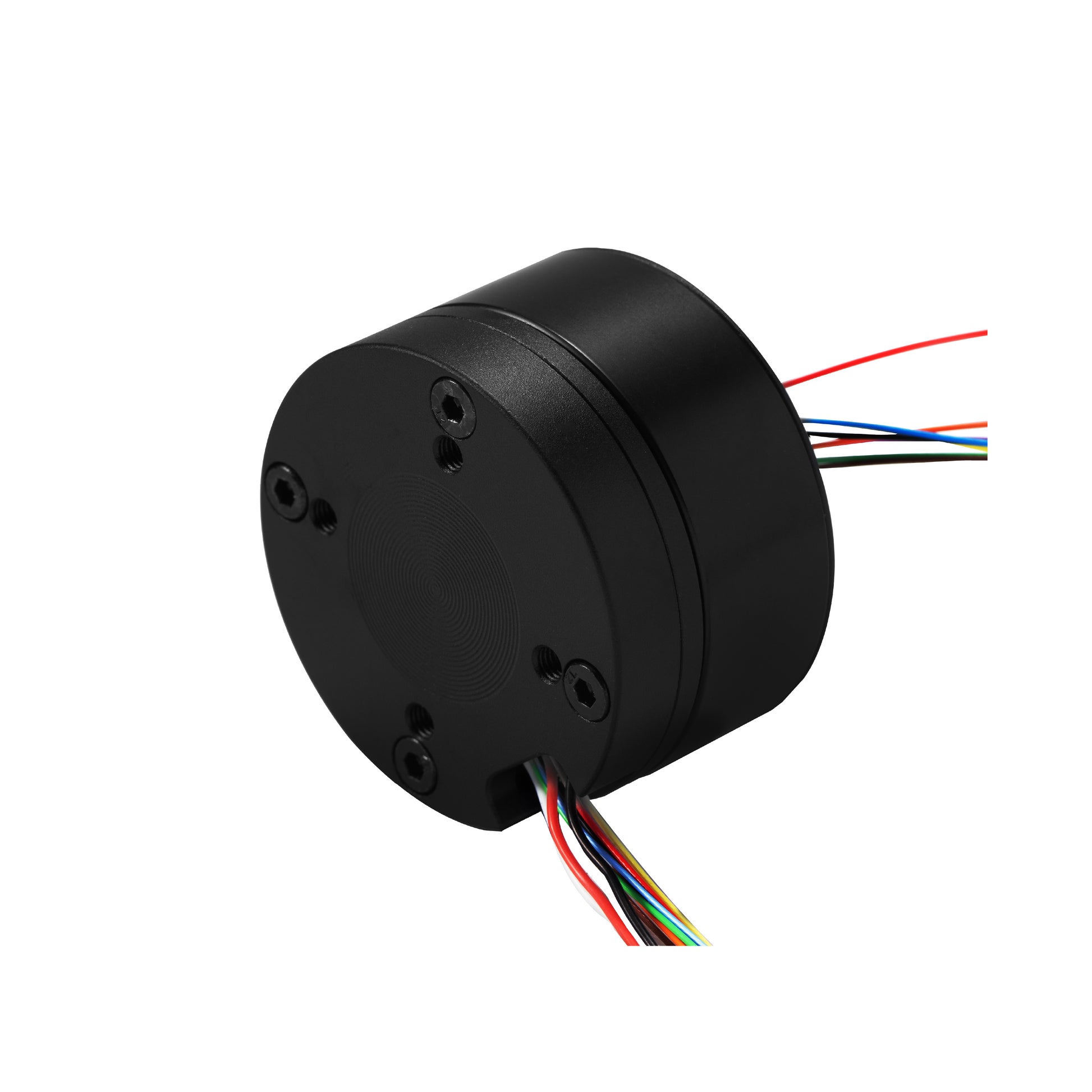

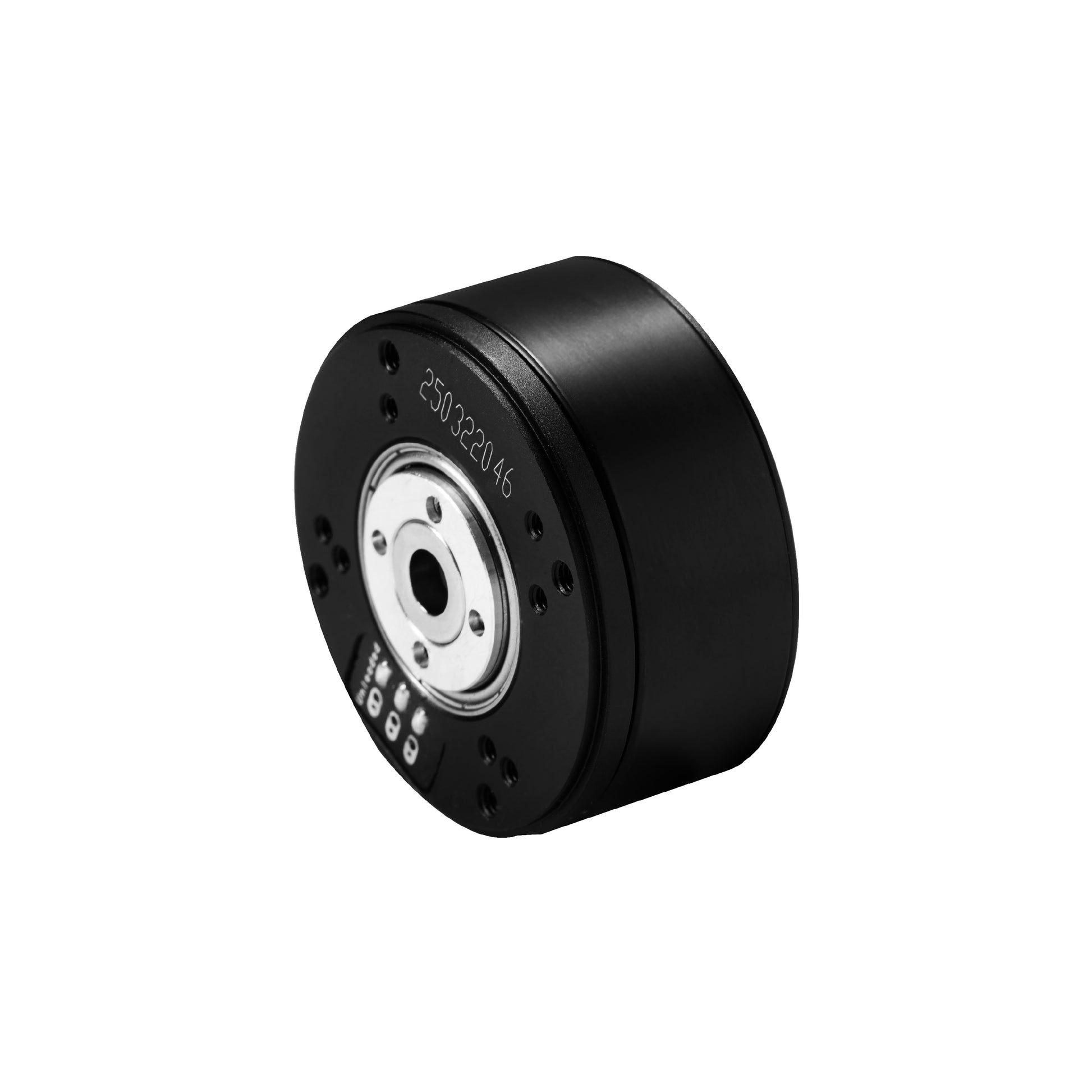

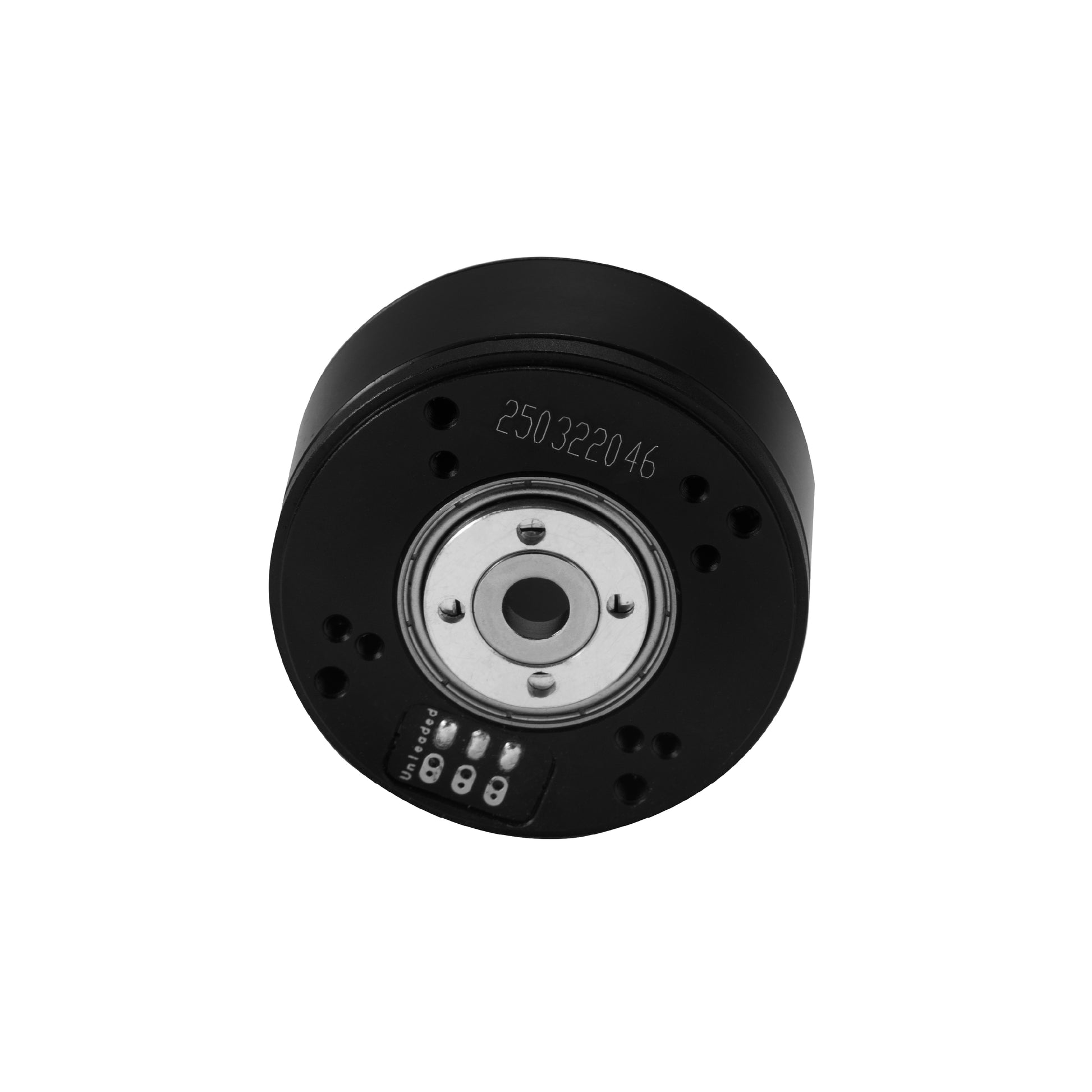

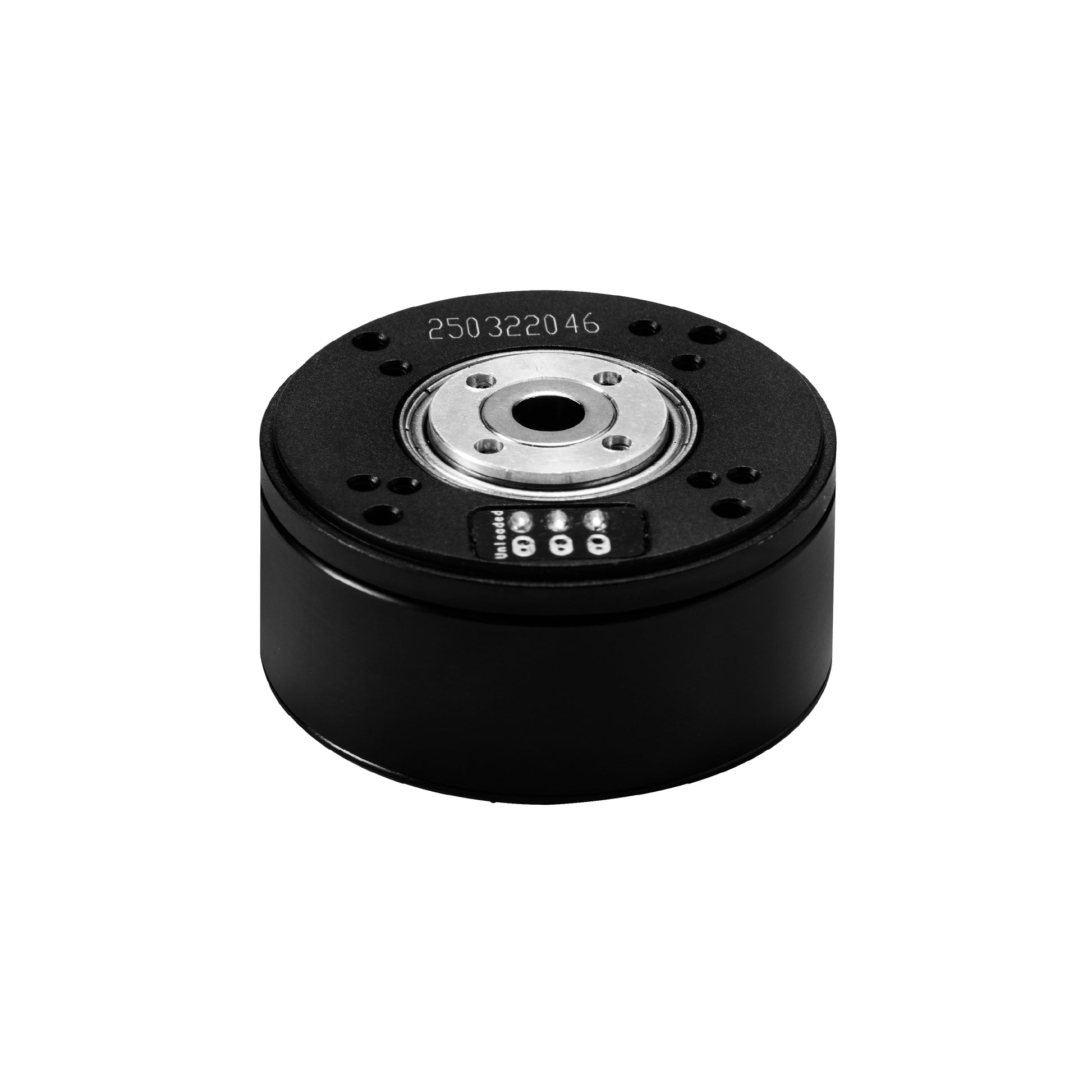

SteadyWin GB3510 Brushless DC Permanent Magnet Synchronous Motor With Slip Ring 32-bit 3-axis Hanging Warehouse Code Disk PTZ Controller

SteadyWin GB3510 Brushless DC Permanent Magnet Synchronous Motor With Slip Ring 32-bit 3-axis Hanging Warehouse Code Disk PTZ Controller

(100+ ratings)

$20.82

$30.00

GB3510 Motor

Only Motor
with AS5600 Encoder
with AS5048A Encoder

Encoder Interface Type

without Encoder and Encoder Cover
PWM
I2C
SPI

Quantity

Must-Read Before Ordering !!!

Please Note：

1. About Brushless DC Motor (Gimbal Motor)
Frameless Motor + Housing = Gimbal Motor
A Gimbal Motor ( BLDC Motor) is built from a frameless motor core.
It is designed to be used with an encoder and requires an external driver (e.g., SDC300). Typical applications include camera gimbals, rotating LiDAR, small UAV pods, and precision rotary tables.
【For GB motors, our current solution is to use an external drive.】

2. About Encoder

1) AS5600 encoder for PWM interface: Default connector type is SH1.0-3P.
2) 【Only AS5048a/AS5047p encoders are compatible with our external driver.】
3) AS5048A encoder for PWM interface: Default connector type is SH1.0-3P
(will be replaced with GH1.25-3P when used with our external driver).
4) AS5048A encoder for SPI interface: Default connector type is GH1.25-6P.

For other requirements, please contact: info@steadywin-motor.com

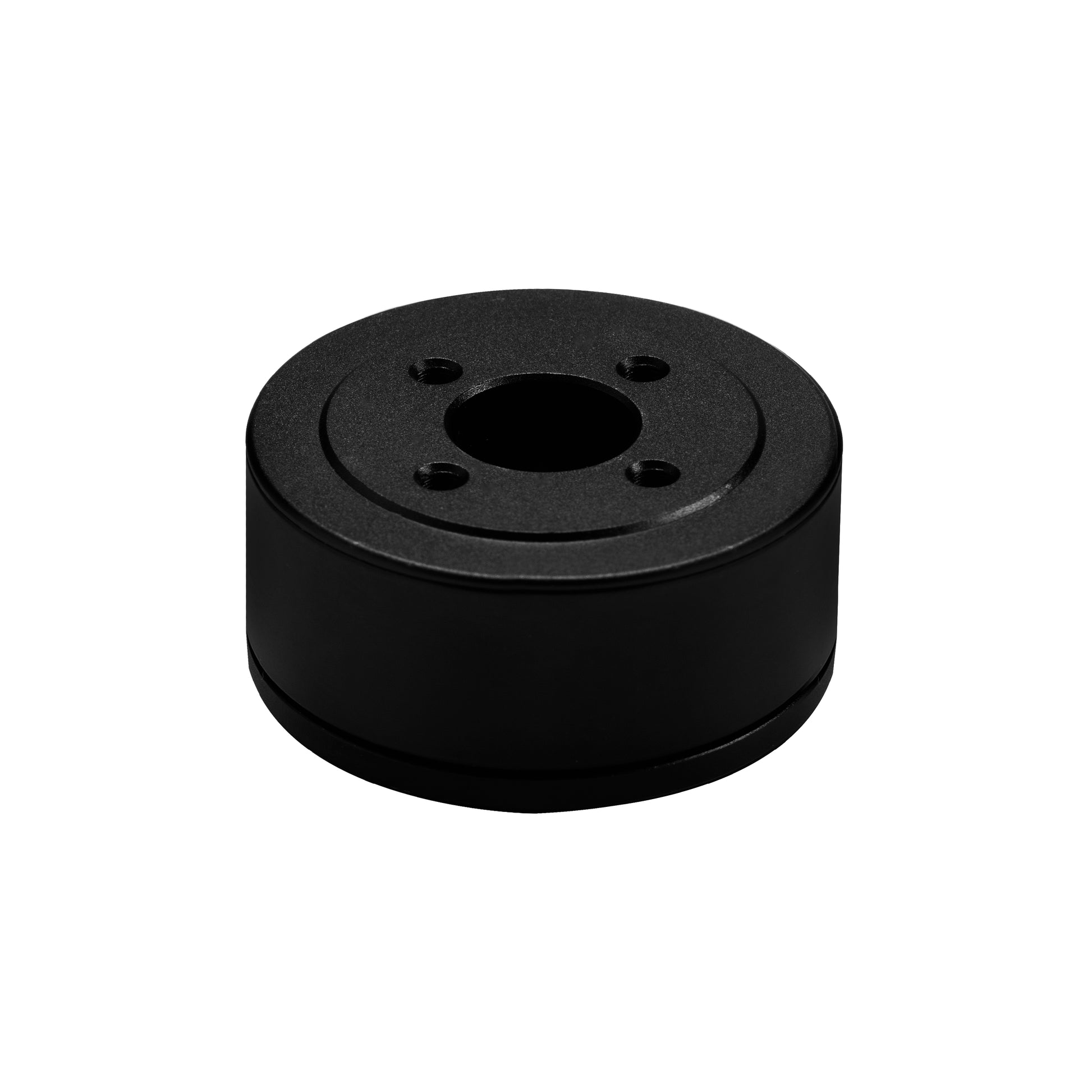

3. About the "only motor" option: It only includes the GB3510 motor, without rear cover or encoder.

CAD Files Download:
GB3510 2D Drawing
GB3510 3D Model.STEP
GB3510 3D Model (with encoder cover).STEP

More Information：
Gimbal Motor Selection Table

If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Discover the GB3510 Brushless DC Motor – the ultimate solution for applications demanding precision, efficiency, and quiet operation! With a 12V rated voltage, this motor delivers outstanding performance, reaching a maximum speed of 965RPM and generating a torque constant of 0.2Nm. Its advanced brushless design sets it apart, ensuring unparalleled reliability and longevity.

The GB3510's brushless technology not only enhances operational efficiency but also significantly extends the motor's lifespan. This means fewer replacements, lower maintenance costs, and more uptime for your critical applications. Plus, its whisper-quiet operation makes it ideal for environments where noise is a concern, whether it's in a factory setting, a home workshop, or a professional studio.
