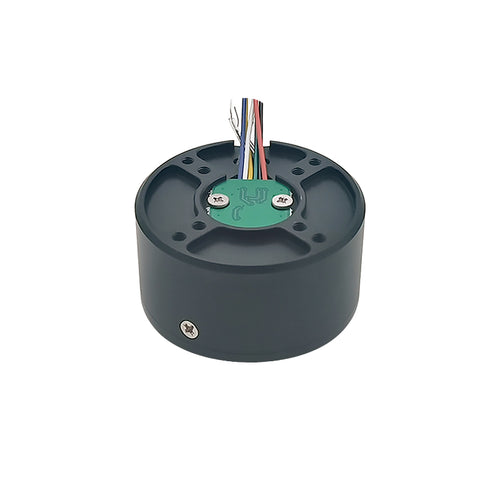

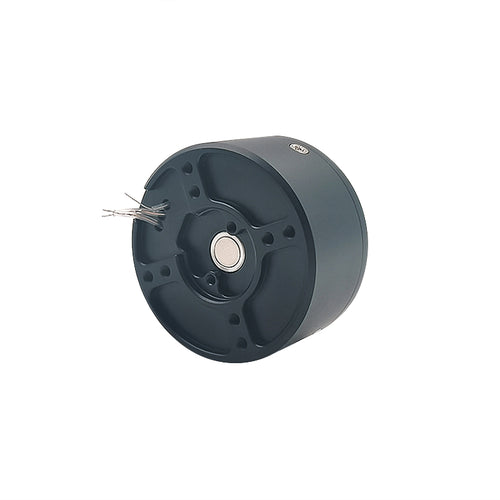

SteadyWin GIM3505-8 Built-in Planetary Reduction Motor Aloha Accessories Quadruped Robot Joint Module

SteadyWin GIM3505-8 Built-in Planetary Reduction Motor Aloha Accessories Quadruped Robot Joint Module

(100+ ratings)

$56.00

$90.00

Motor

GIM3505-8 V1.0
GIM3505-8 V1.1

Encoder&Driver

Only Motor (without encoder)
with AS5047P Encoder
Only Motor (without driver)
with GDK34 Driver
with GDZ34 Driver
with GDS34 Driver
USB-485 Adapter( for GDZ driver)
CP2102 (for GDS driver)

Quantity

Must-Read Before Ordering !!!

The GDK series driver boards are now open for pre-order, with a lead time of 15 days.
Please note that the GDZ and GDS series driver boards will be phased out subsequently.
Should you have an absolute need for the GDZ or GDS series,
please contact: info@steadywin-motor.com

Q&A

Q 1 : What's the difference between V1.0 and V1.1?

A: The GIM3505-8 V1.0 version can only install an encoder,
while the GIM3505-8 V1.1 version can only install a driver board.

Q 2 : What's the difference between GDZ34 driver and GDS34 driver?

A: The GDZ34 driver supports three communication protocols: CAN, 485, and Modbus, while the GDS34 drive board supports CAN communication.

Please Note：

For GIM3505-8 motor, dual encoders not supported.

【 Dual encoder support is not available for models GIM3505-8, GIM4305-10, GIM4310-10, GIM4310-36 and GIM10015-9.
Standard for all other models in GIM series.】

If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ34 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS34 driver board, a CP2102 must be used.

CAD Files Download：
GIM3505-8 2D Drawing.pdf
GIM3505-8 3D Model.STEP
GIM3505-8 2D Drawing (with driver).pdf
GIM3505-8 with GDZ34 Driver 3D Model.STEP

Document of Driver Download：
GDZ34 Driver
GDS34 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Step into the future of robotic motion with the GIM3508-8 Planetary Gear Reducer – a marvel of engineering designed to redefine precision, power, and safety in robotics and mechanical systems! This state-of-the-art gear reducer is the perfect blend of innovation and reliability, crafted to meet the demanding needs of modern applications.

With a versatile voltage range stretching from 12V to a powerful 48V, the GIM3508-8 offers unmatched adaptability, ensuring seamless integration into a wide spectrum of power setups. Its operational speed range of 225-384RPM guarantees swift and accurate motion, making it an ideal choice for applications where speed and precision are crucial.

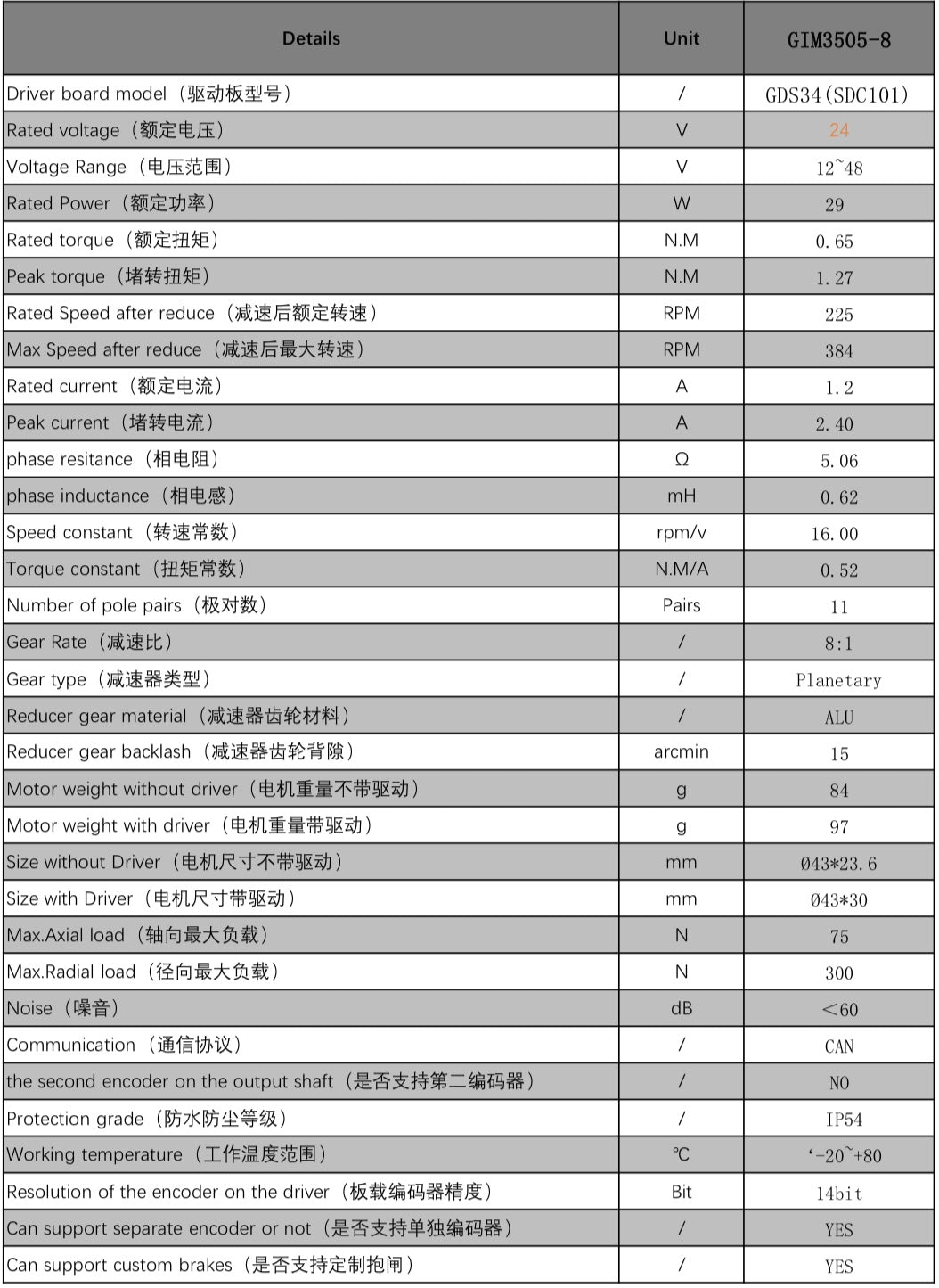

detailed parameters
