SteadyWin GIM4305-10 Built-in Planetary Reduction Motor Aloha Accessor

Customer Reviews

Owen Law O. L. Owen L. 30-05-2026

Question asked: I think i burned the motor control boards of 13 of my motors (Pupper v3), how much is a control board ? I'm sure the boards are so much cheaper. Can u give me a quote. Can you ship to the USA?

30-05-2026

Hello, the price of GDS34 driver board is $69.8/unit. (please note that we do not provide free shipping)You can find it on my website.https://steadywin-motor.com/products/steadywin-driver-boardWe usually ship to the USA via air-shipping DDP (Delivered Duty Paid) route by default.

Owen Law O. L. Owen L. 13-03-2026

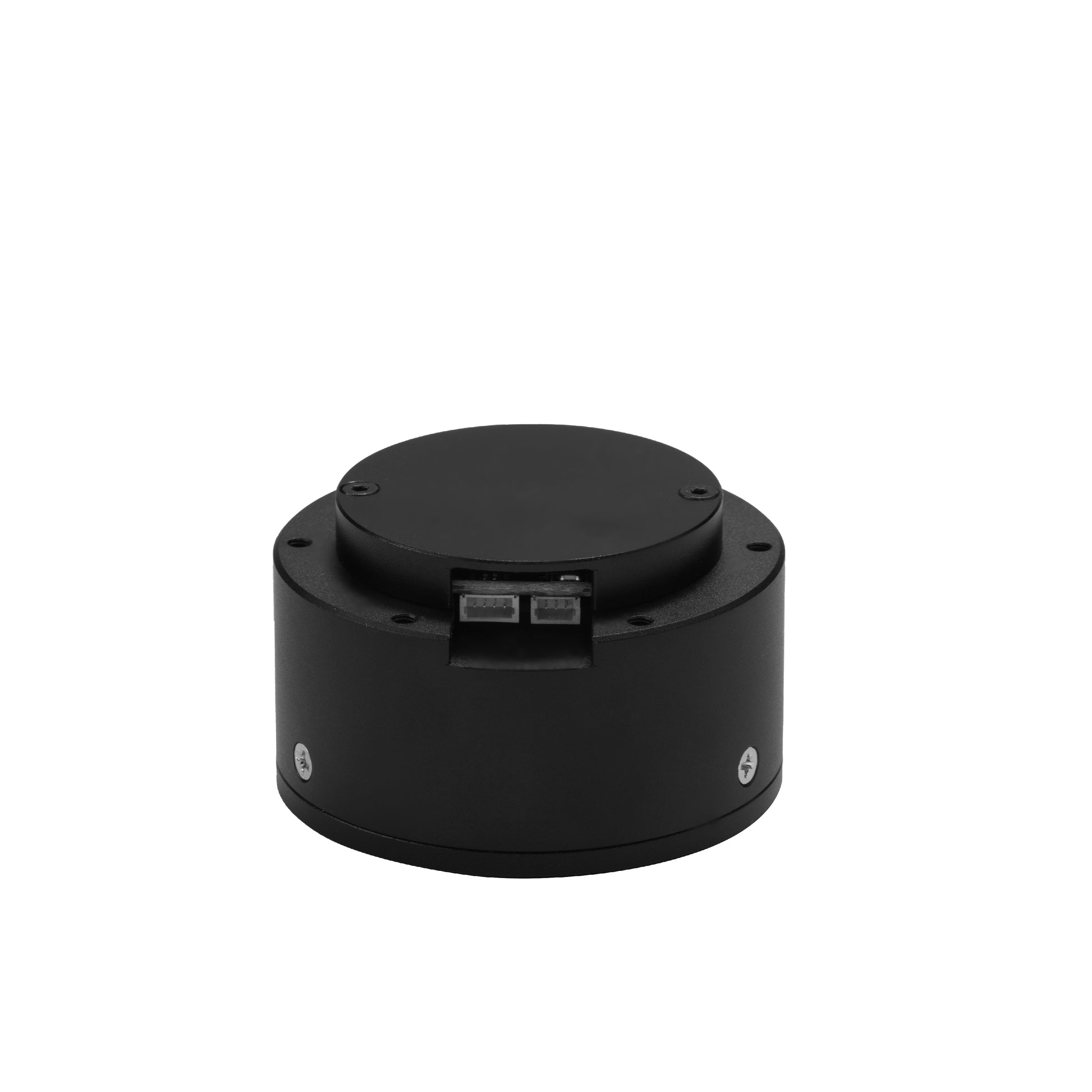

Question asked: I bought 12 GIM4305-10 motors with GDS34 Driver, but im supposed to use the Pupper V3 version of the motor. The motor i got has a 3pin sh connector and a separate 4pin sh connector, but i cannot find any documentation on the pinouts for this. I can only find documentation pinouts on motors with 2x 4 pin sh connectors. Can you send me information on those? Chinese documentation is fine, I just need the pinouts.

I bought 12 GIM4305-10 motors with GDS34 Driver, but im supposed to use the Pupper V3 version of the motor. The motor i got has a 3pin sh connector and a separate 4pin sh connector, but i cannot find any documentation on the pinouts for this. I can only find documentation pinouts on motors with 2x 4 pin sh connectors. Can you send me information on those? Chinese documentation is fine, I just need the pinouts.

13-03-2026

Hello, there is a drawing of GDS34 driver. You can also find in in the zip file of GDS34 driver.GDS34 driver drawing.pdf

Questions & Answers

Have a Question?

Ask a Question

Could you please let me know whether a CAN communication cable is included with the motor and GDK34 driver? If it is not included, could you please provide the connector specifications?

Hi, yes, a CAN communication cable( XT30(2+2) cable) will be included for GDK34 driver.
But you need to prepare a USB-CAN adapter to using our debugging software.
I bought 12 GIM4305-10 motors with GDS34 Driver, but im supposed to use the Pupper V3 version of the motor. The motor i got has a 3pin sh connector and a separate 4pin sh connector, but i cannot find any documentation on the pinouts for this. I can only find documentation pinouts on motors with 2x 4 pin sh connectors. Can you send me information on those? Chinese documentation is fine, I just need the pinouts.

Hello, there is a drawing of GDS34 driver. You can also find in in the zip file of GDS34 driver.
GDS34 driver drawing.pdf

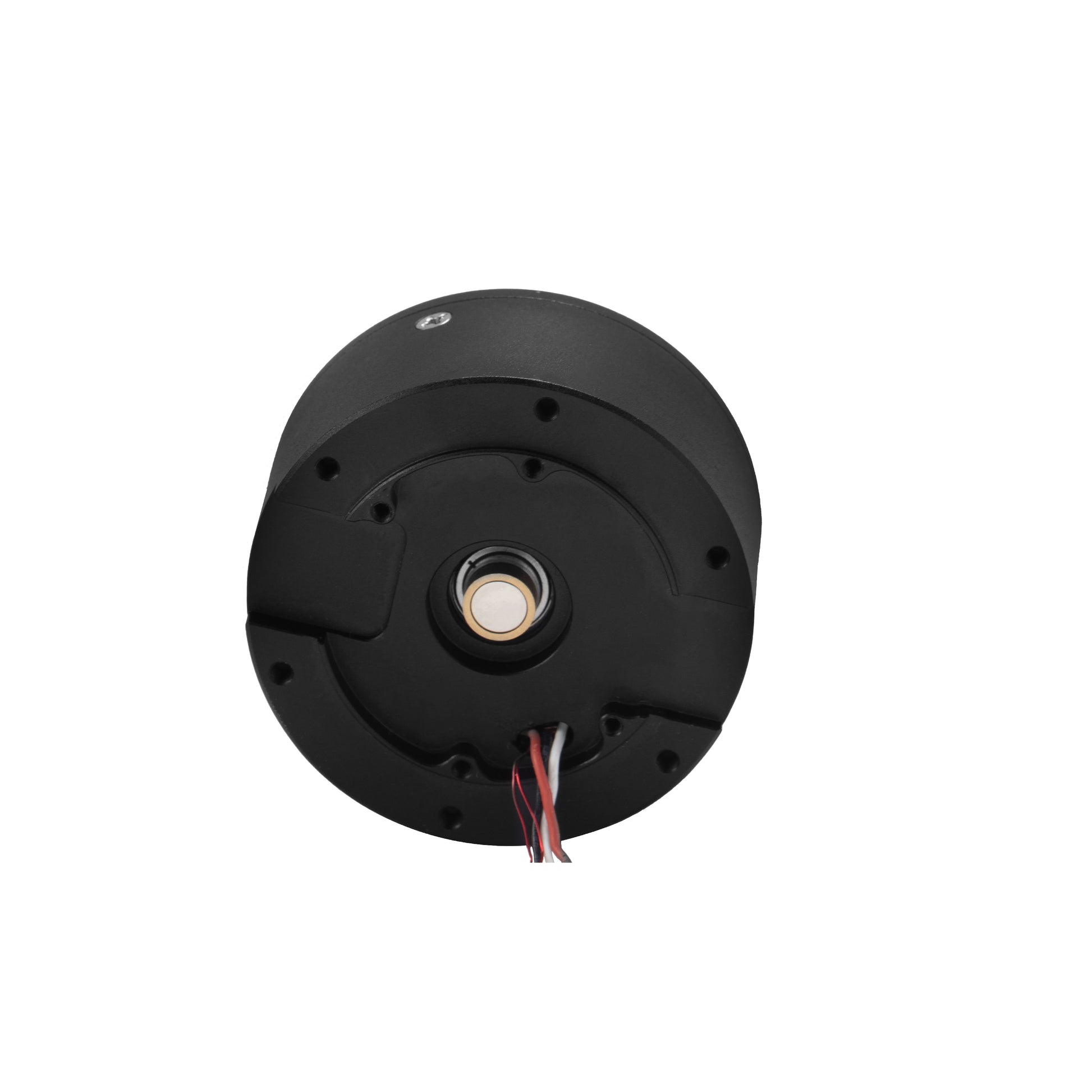

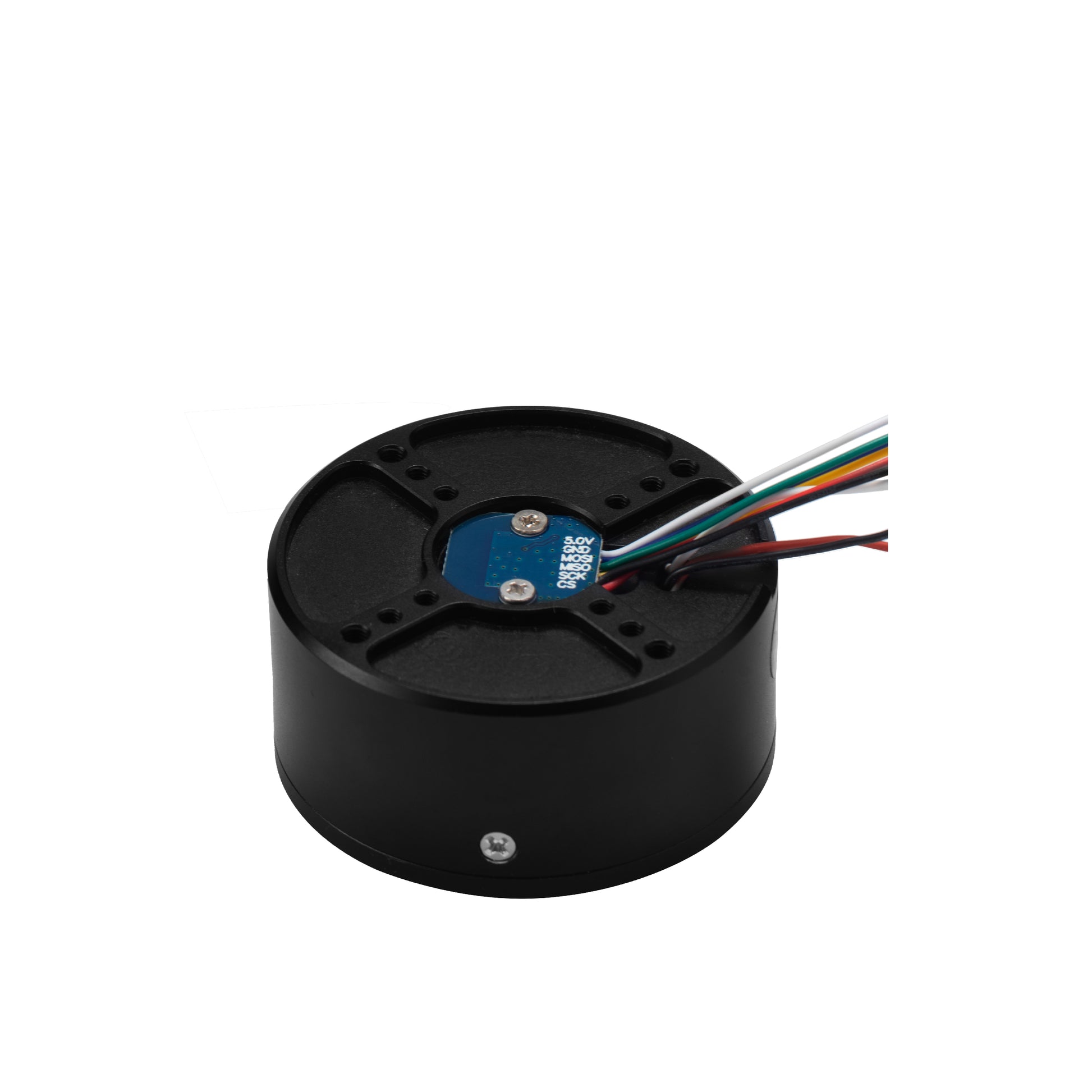

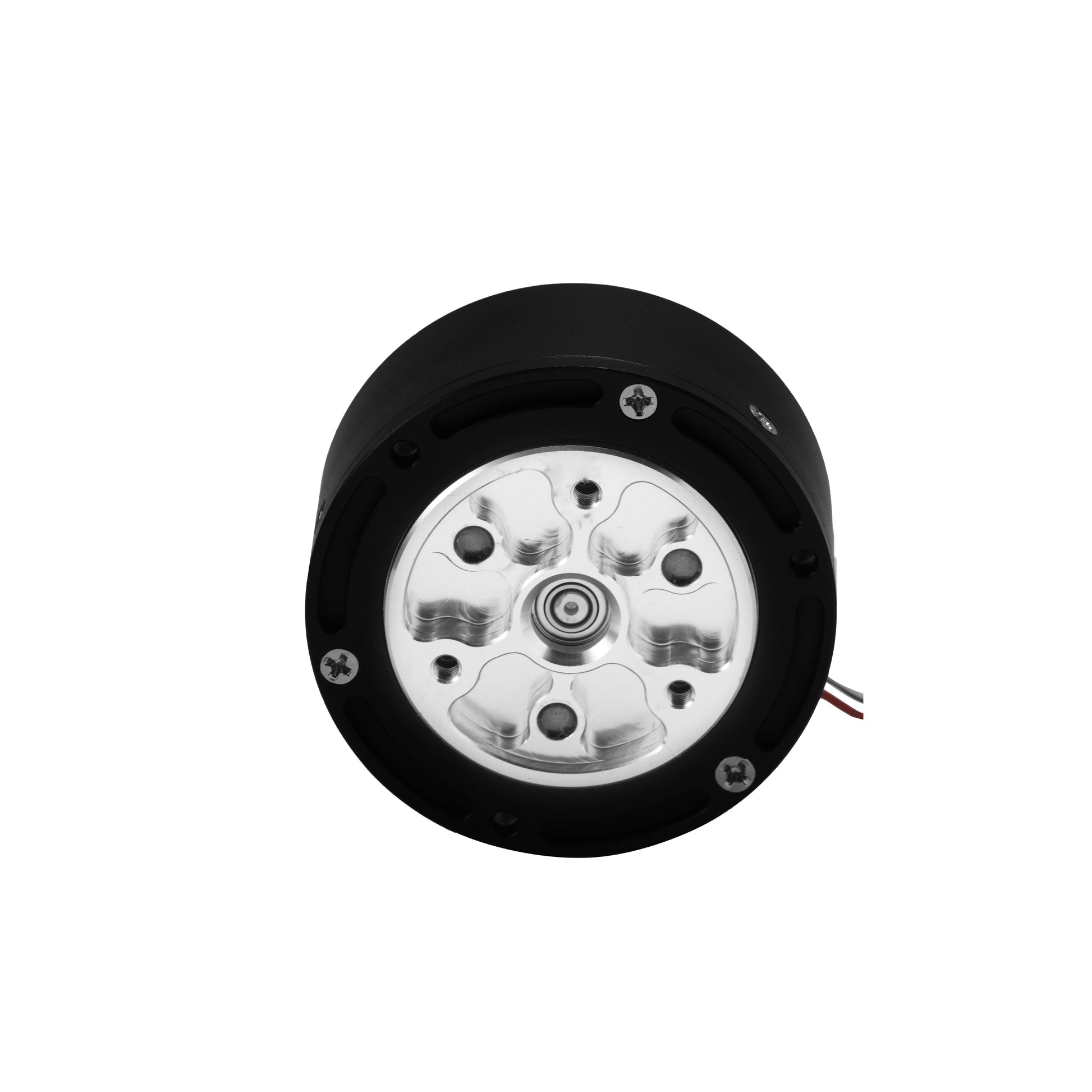

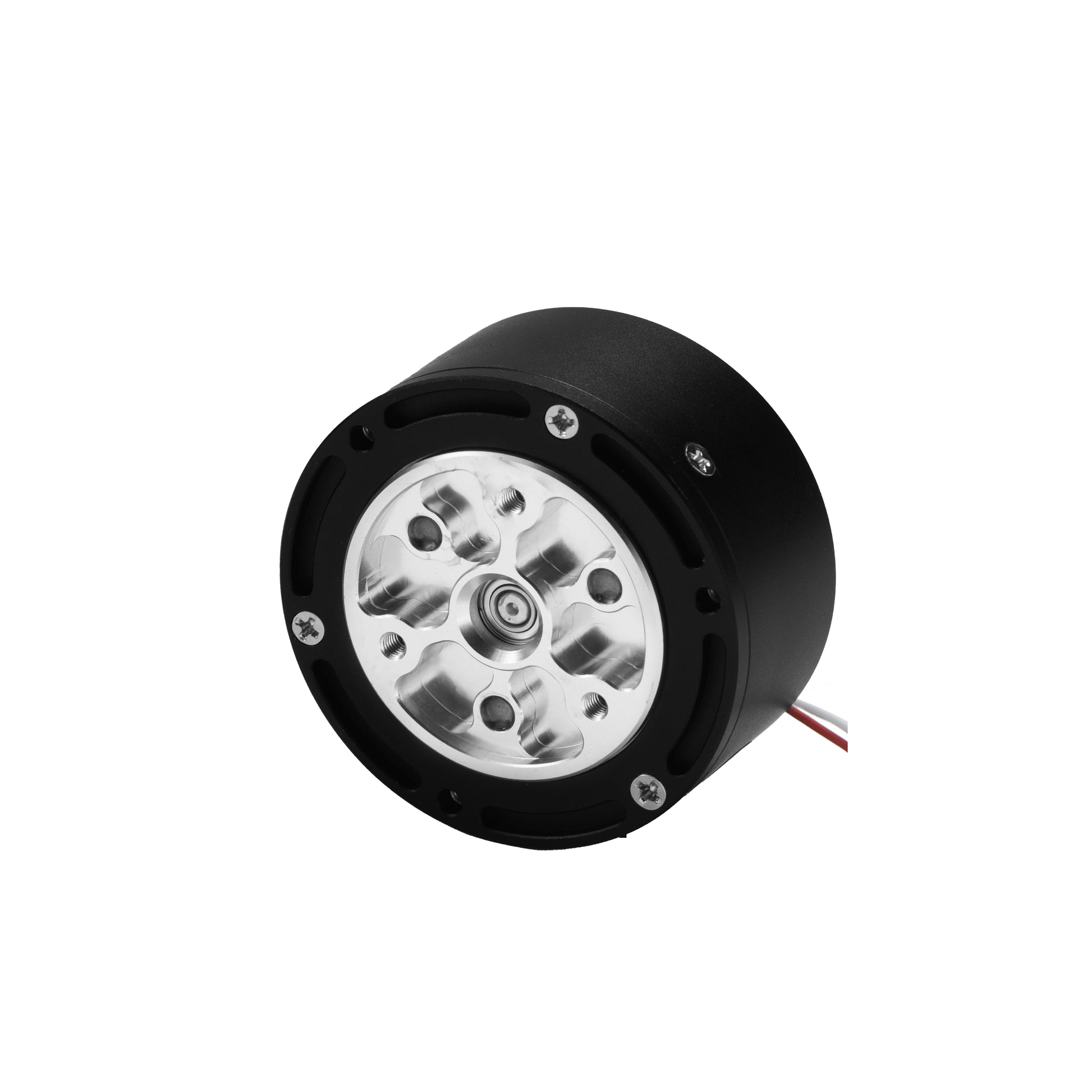

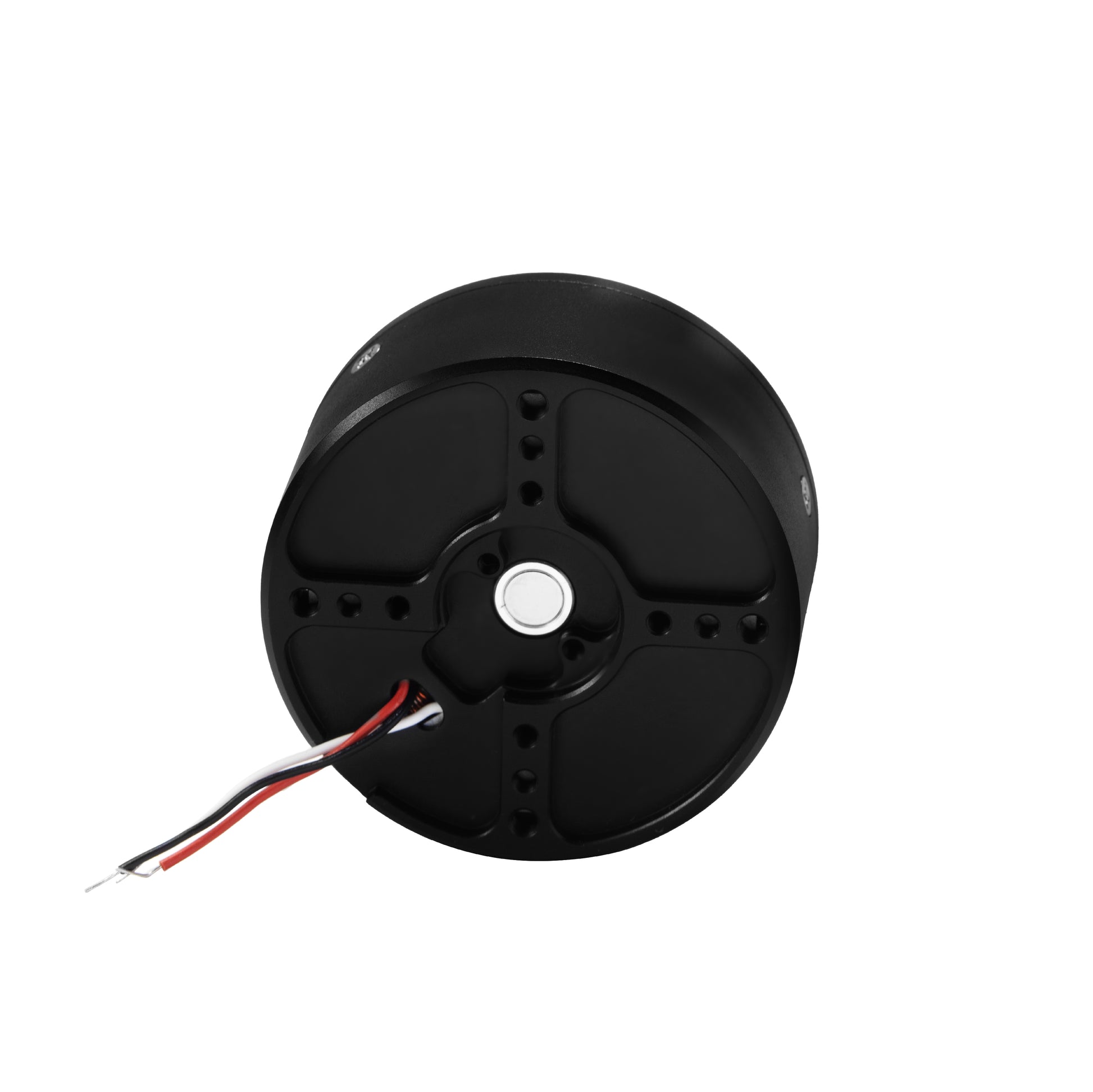

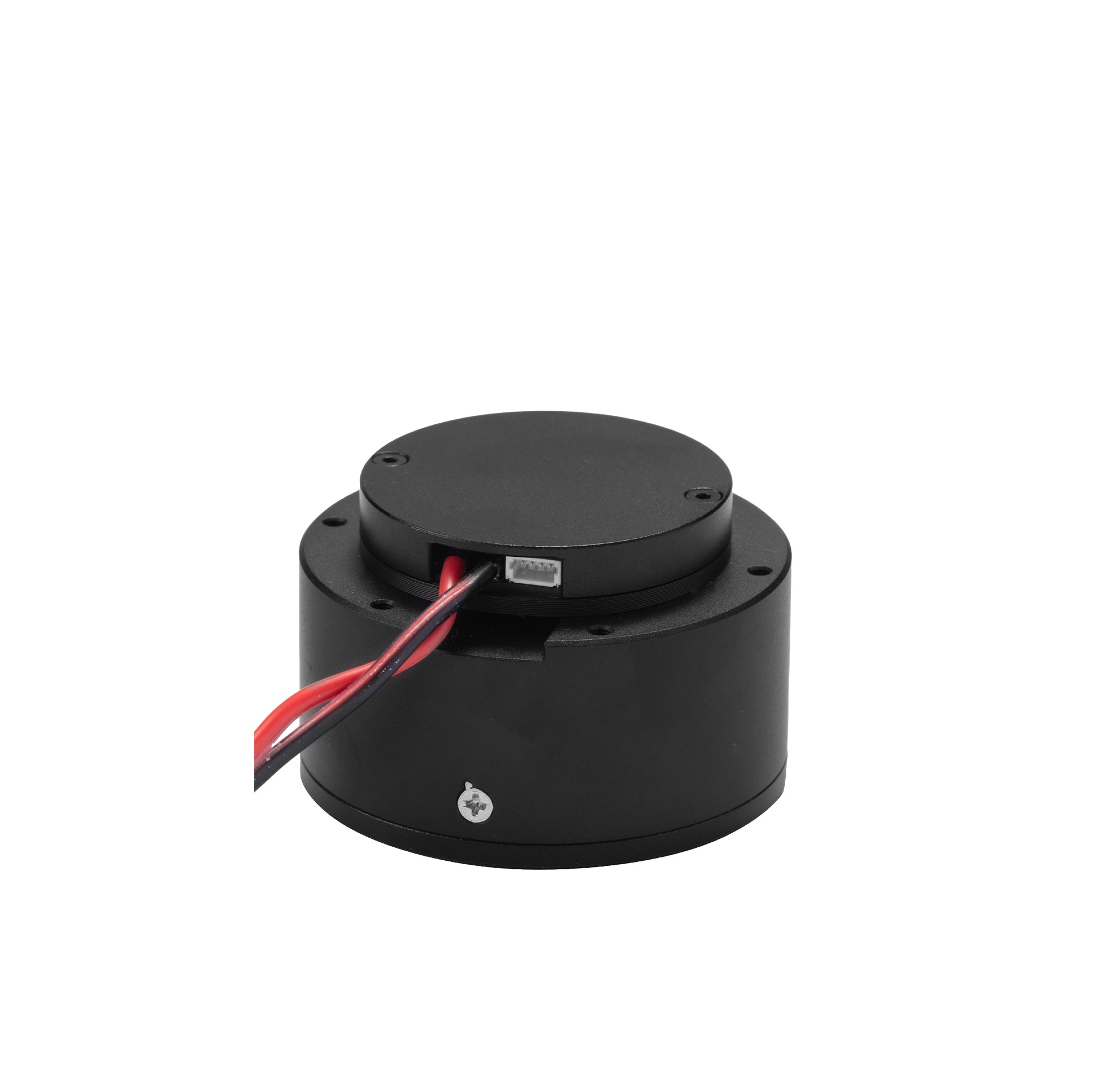

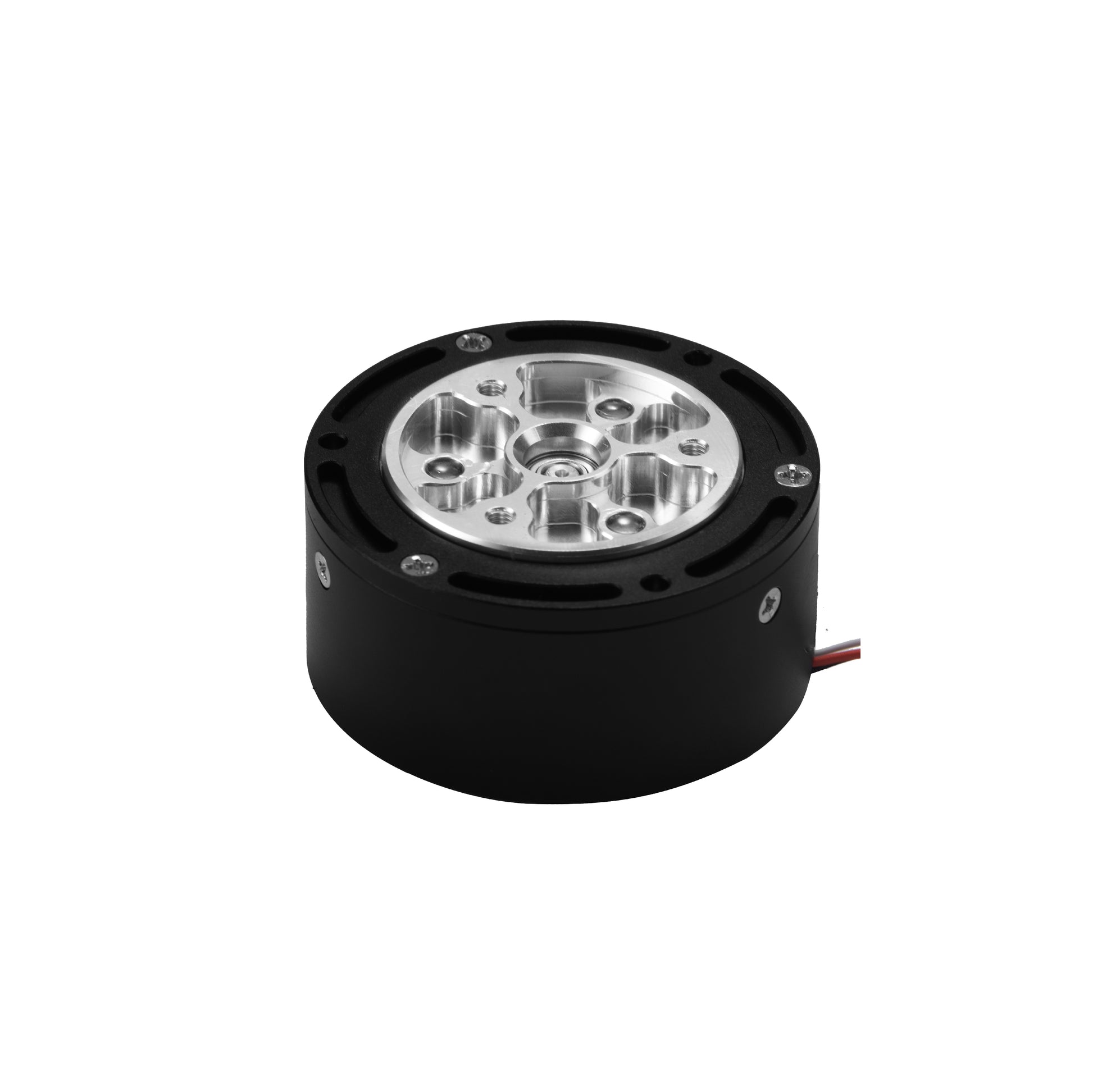

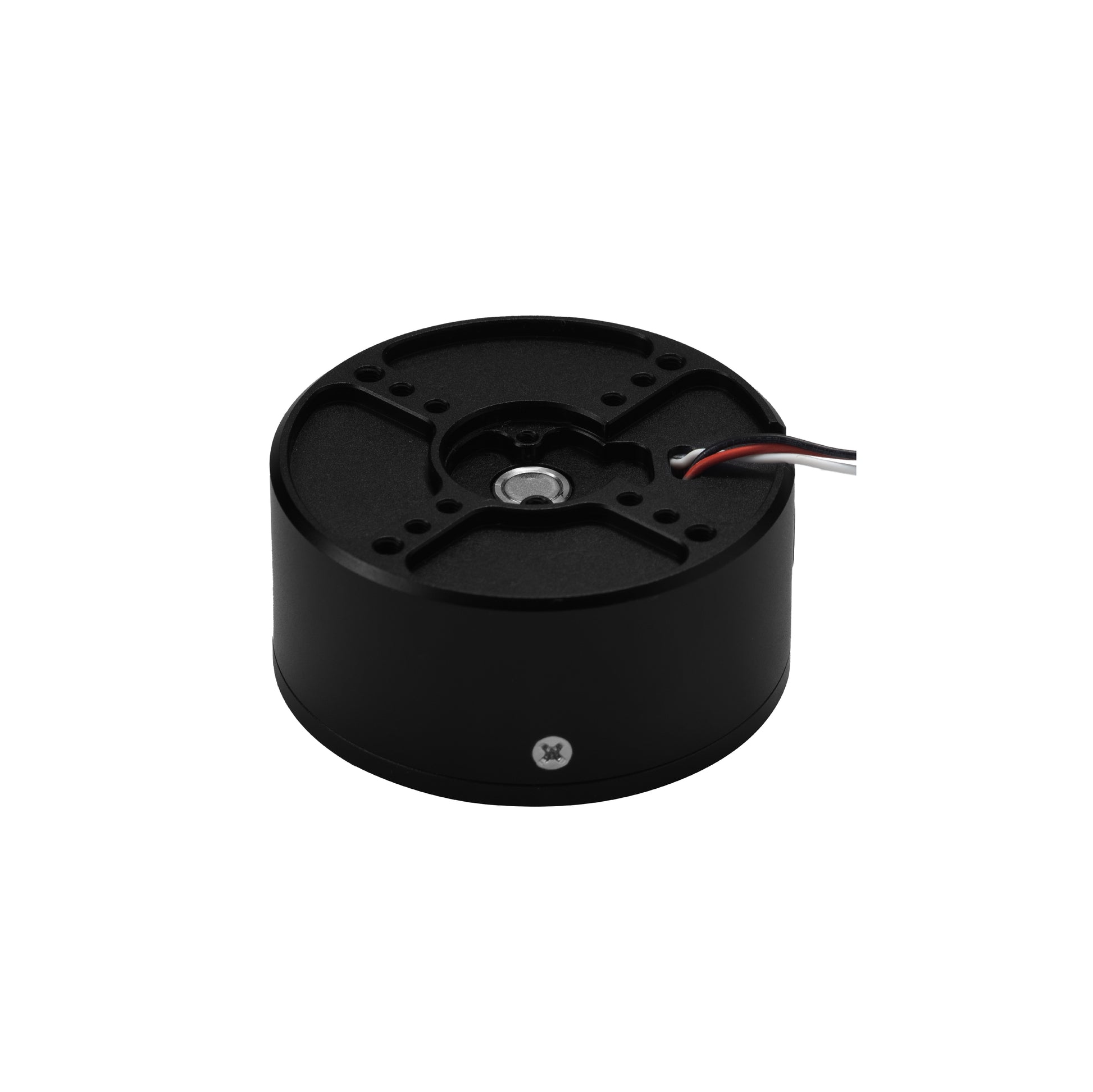

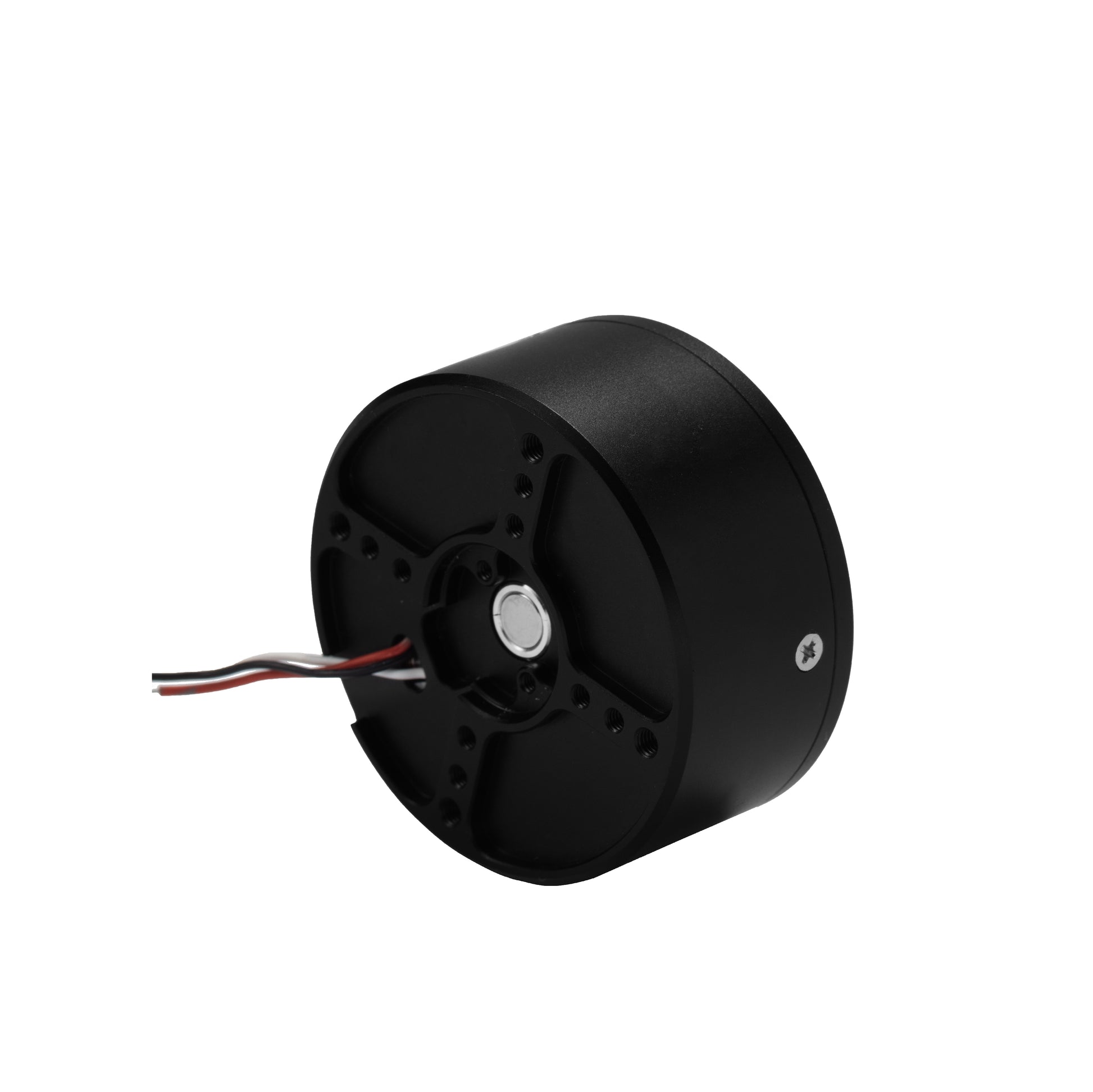

SteadyWin GIM4305-10 Built-in Planetary Reduction Motor Aloha Accessories Quadruped Robot Joint Module

SteadyWin GIM4305-10 Built-in Planetary Reduction Motor Aloha Accessories Quadruped Robot Joint Module

(100+ ratings)

$68.00

$90.00

Motor

GIM4305-10 V1.0
GIM4305-10 V1.1

Encoder&Driver

Only Motor (without encoder)
with AS5047P Encoder
Only Motor (without driver)
with GDK34 Driver
with GDS34 Driver (Pupper V3 version)
with GDZ34 Driver
with GDS34 Driver
CP2102 (for GDS driver)

Quantity

Must-Read Before Ordering !!!

The GDK series driver boards are now open for pre-order, with a lead time of 15 days.

Q&A

Q 1 : What's the difference between V1.0 and V1.1?

A: The GIM4305-10 V1.0 version can only install an encoder,
while the GIM4305-10 V1.1 version can only install a driver board.

Q 2 : What's the difference between GDZ34 driver and GDS34 driver?

A: The GDZ34 driver supports three communication protocols: CAN, 485, and Modbus, while the GDS34 drive board supports CAN communication.

Please Note：

For GIM4305-10 motor, dual encoders not supported.

【 Dual encoder support is not available for models GIM3505-8, GIM4305-10, GIM4310-10, GIM4310-36 and GIM10015-9.
Standard for all other models in GIM series.】

If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ34 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS34 driver board, a CP2102 must be used.

CAD Files Download：
GIM4305-10 2D Drawing.pdf
GIM4305-10 3D Model.STEP

Document of Driver Download：
GDZ34 Driver
GDS34 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

GIM4305-10 doesn't stop at performance – it also excels in design. With its compact and space-saving structure, this reducer seamlessly integrates into your existing setup, optimizing space utilization without compromising on functionality. And when it comes to safety, the GIM4305-10 has you covered with comprehensive over-temperature, over-voltage, and over-load protection, ensuring peace of mind and longevity for your investment.
