DD4006 Direct drive servo motor wide voltage DC brushless motor for PTZ support CAN and RS485 communication

DD4006 Direct drive servo motor wide voltage DC brushless motor for PTZ support CAN and RS485 communication

(100+ ratings)

$85.30

$90.00

Motor

DD4006-7

Quantity

Must-Read Before Ordering !!!

Please Note：

1. About Brushless Direct Drive Motor
Frameless Motor + Housing = Gimbal Motor
Gimbal Motor + Driver Board = Direct Drive Motor
Direct Drive Motors feature an integrated driver and encoder. They incorporate a semi-hollow shaft design, allowing for cable pass-through. Primary applications include LiDAR, gimbals, electro-optical pods, SCARA arms, and AGVs.

CAD Files Download:
DD4006 2D Drawing
DD4006 3D Model.STEP

Document Download:
DD Driver

More Information：
Brushless Direct Drive Motor Selection Table

If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Introducing the revolutionary DD4006-7 Direct Drive Servo Motor – a powerhouse of precision and performance, meticulously engineered to redefine motion control in your industrial applications! With a rated voltage of 12V, this motor boasts an impressive maximum no-load speed of 1412RPM, delivering unparalleled speed and agility to your machinery.

Durability is another hallmark of the DD4006-7. Built to last, this motor offers a long service life, reducing maintenance costs and downtime. Its compact size makes it ideal for applications where space is at a premium, while its high transmission efficiency and energy conversion rate ensure optimal performance with minimal energy waste.

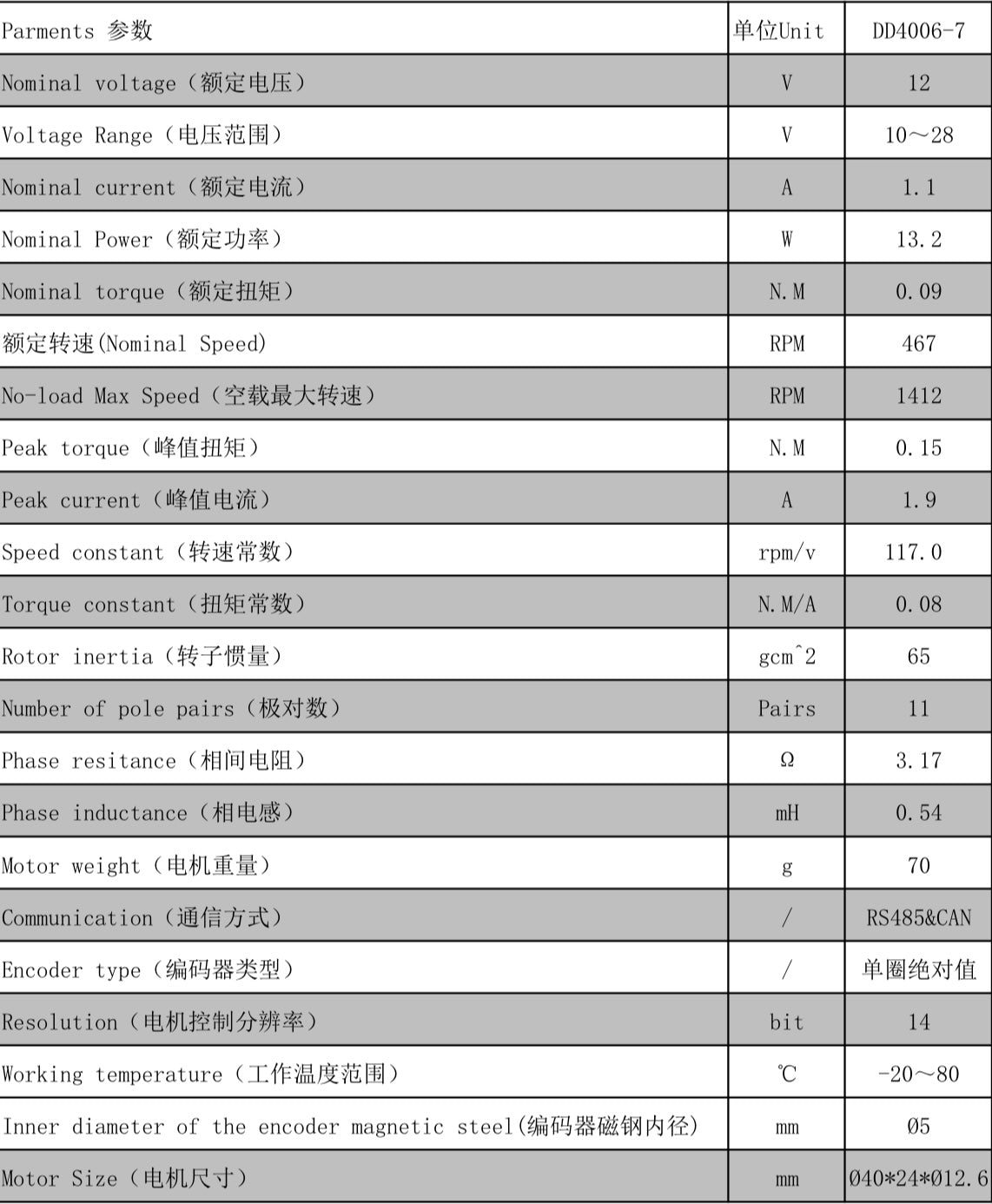

detailed parameters
