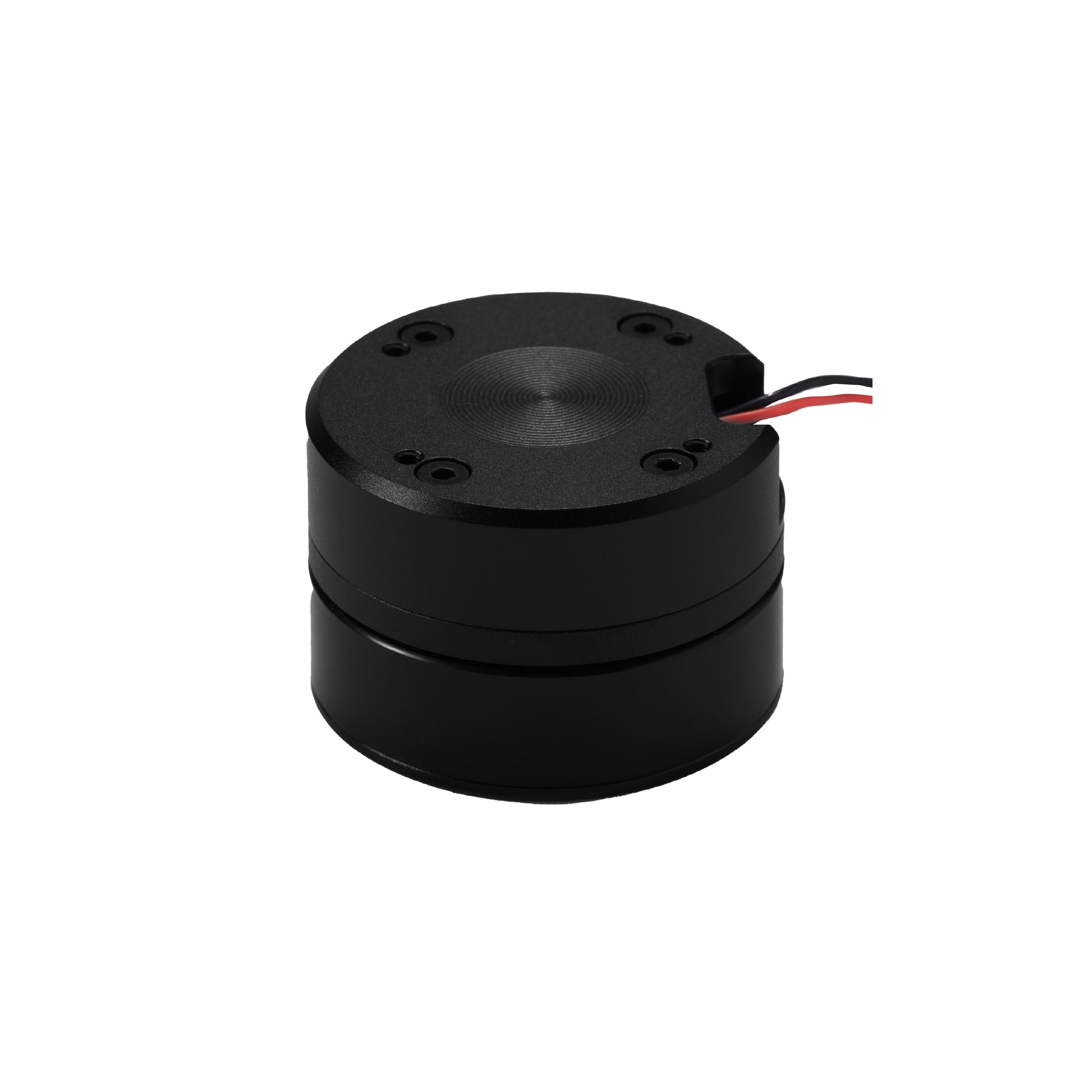

SteadyWin GB2806 Micro PTZ High Quality Three-Phase High Speed Brushless Motor Pod Parts Magnetic Encoder

SteadyWin GB2806 Micro PTZ High Quality Three-Phase High Speed Brushless Motor Pod Parts Magnetic Encoder

(100+ ratings)

$13.90

$18.00

GB2806 Motor

Only Motor
with AS5600 Encoder
with AS5048A Encoder

Encoder Interface Type

without Encoder and Encoder Cover
PWM
I2C
SPI

Quantity

Must-Read Before Ordering !!!

Please Note：

1. About Brushless DC Motor (Gimbal Motor)
Frameless Motor + Housing = Gimbal Motor
A Gimbal Motor ( BLDC Motor) is built from a frameless motor core.
It is designed to be used with an encoder and requires an external driver (e.g., SDC300). Typical applications include camera gimbals, rotating LiDAR, small UAV pods, and precision rotary tables.
【For GB motors, our current solution is to use an external drive.】

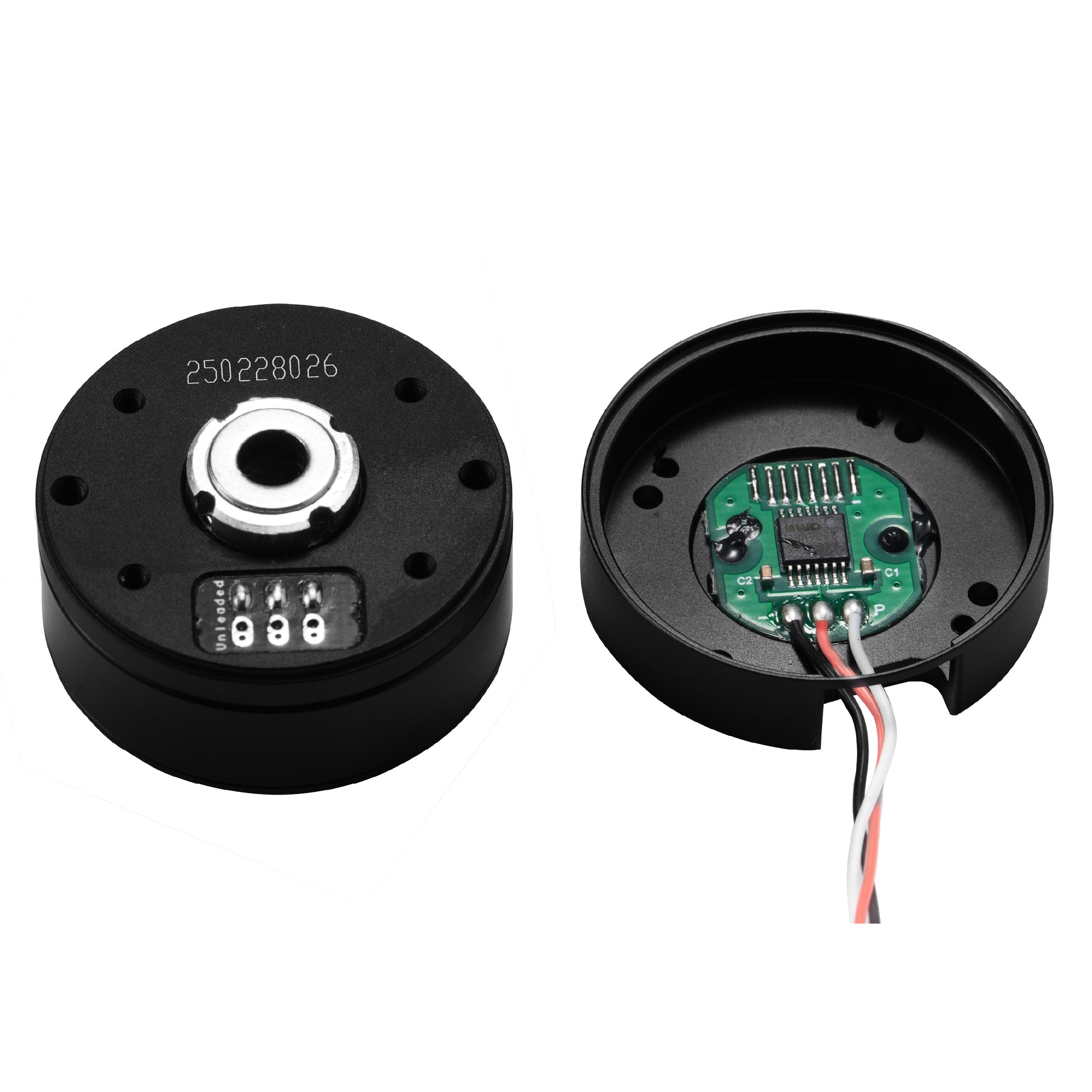

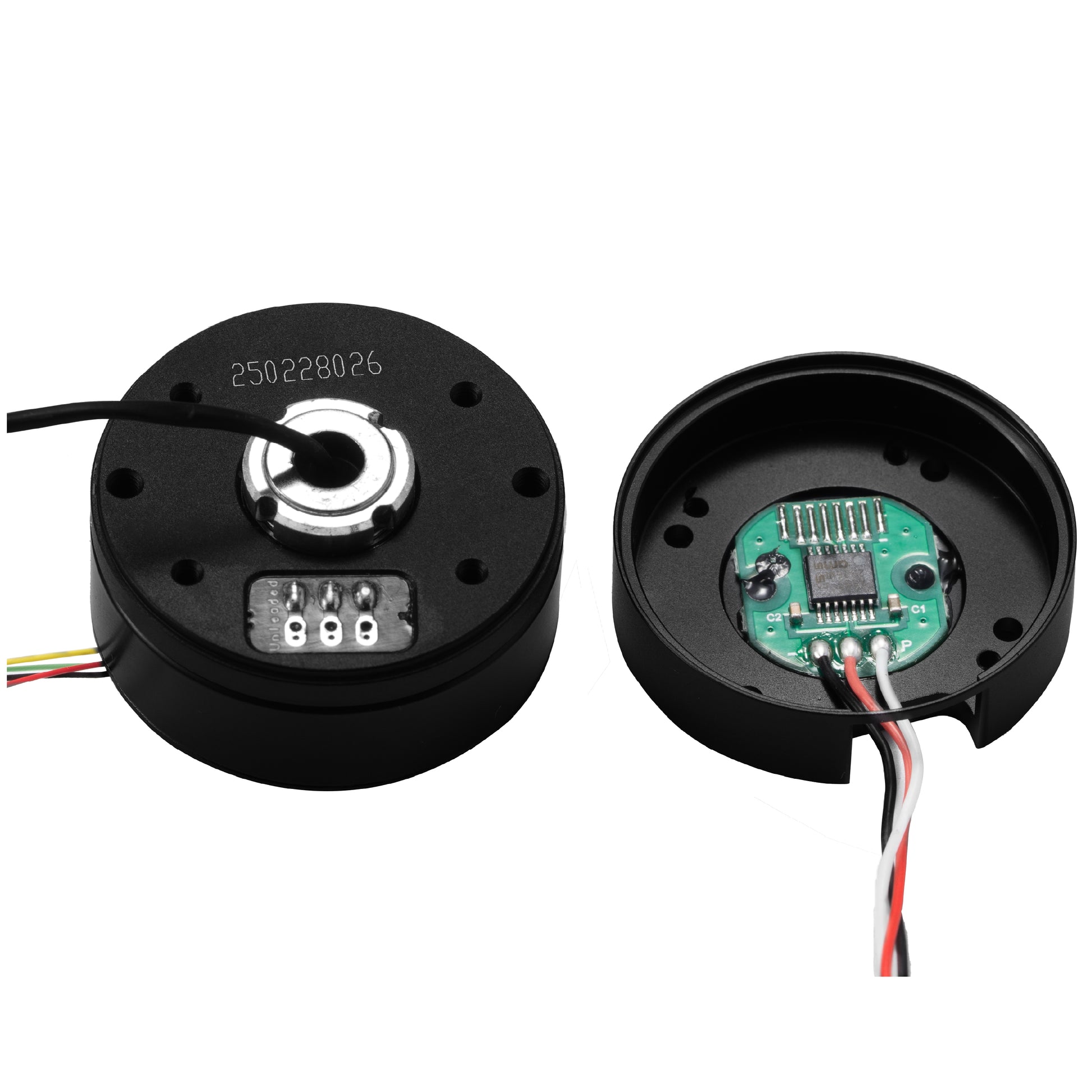

2. About Encoder

1) AS5600 encoder for PWM interface: Default connector type is SH1.0-3P.
2) 【Only AS5048a/AS5047p encoders are compatible with our external driver.】
3) AS5048A encoder for PWM interface: Default connector type is SH1.0-3P
(will be replaced with GH1.25-3P when used with our external driver).
4) AS5048A encoder for SPI interface: Default connector type is GH1.25-6P.

For other requirements, please contact: info@steadywin-motor.com

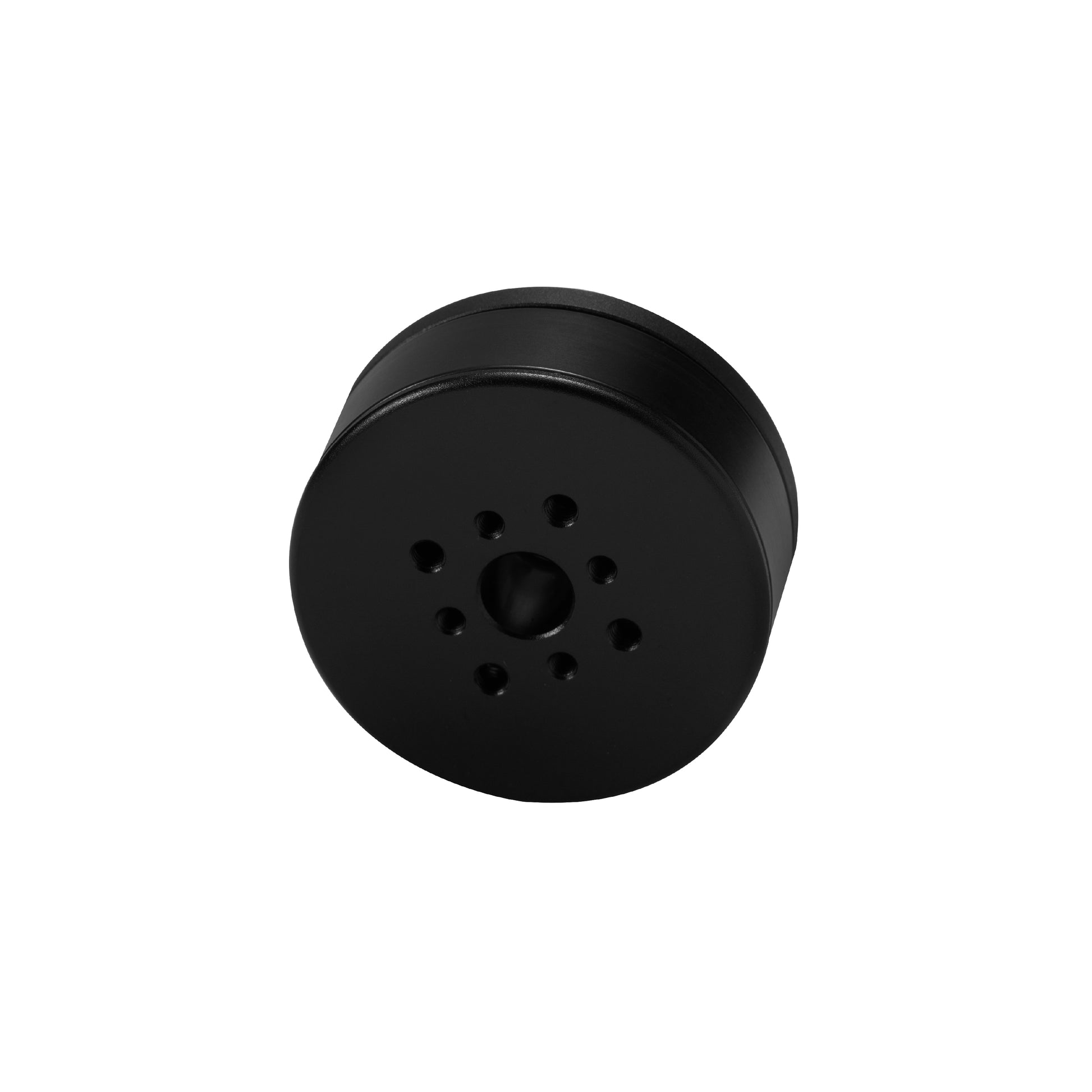

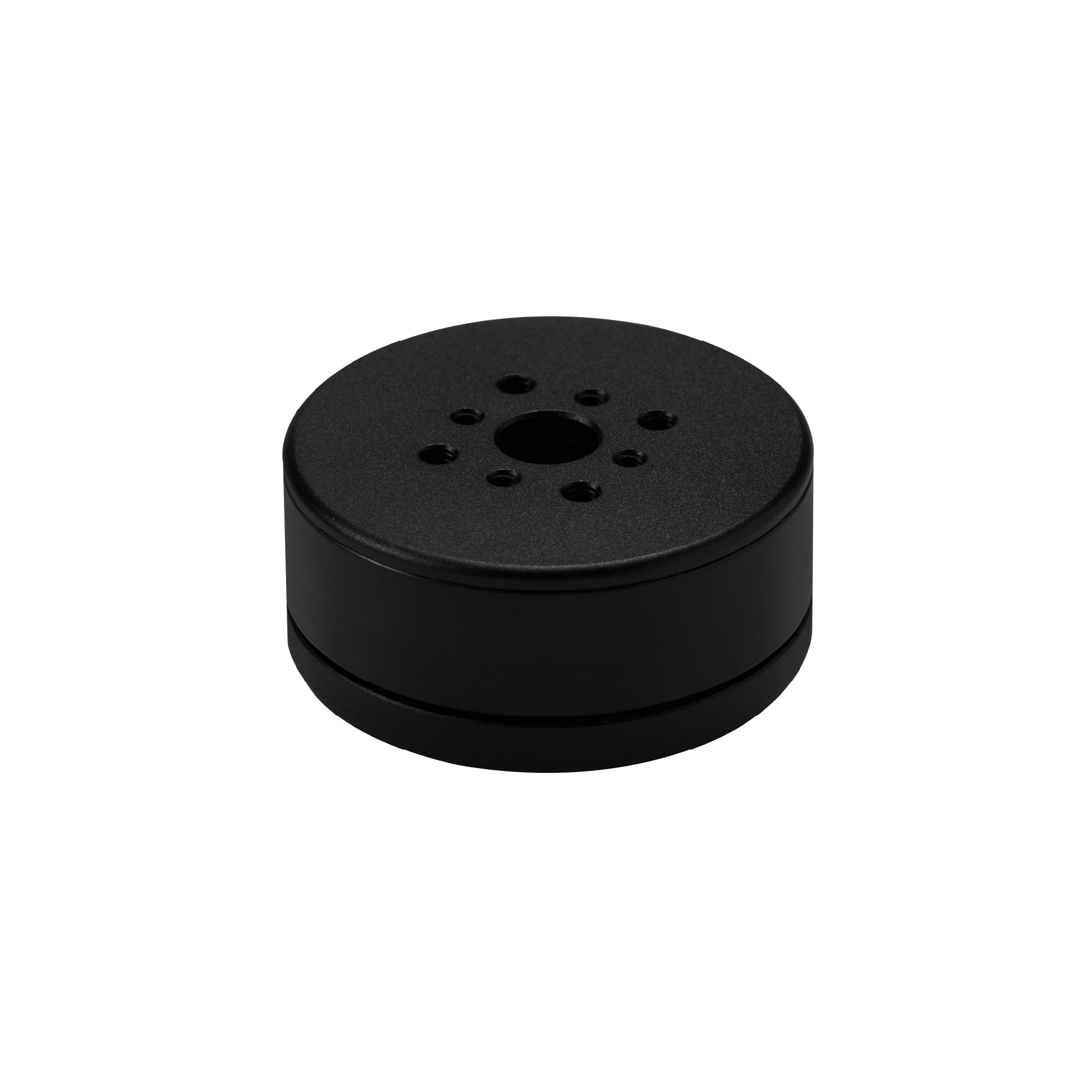

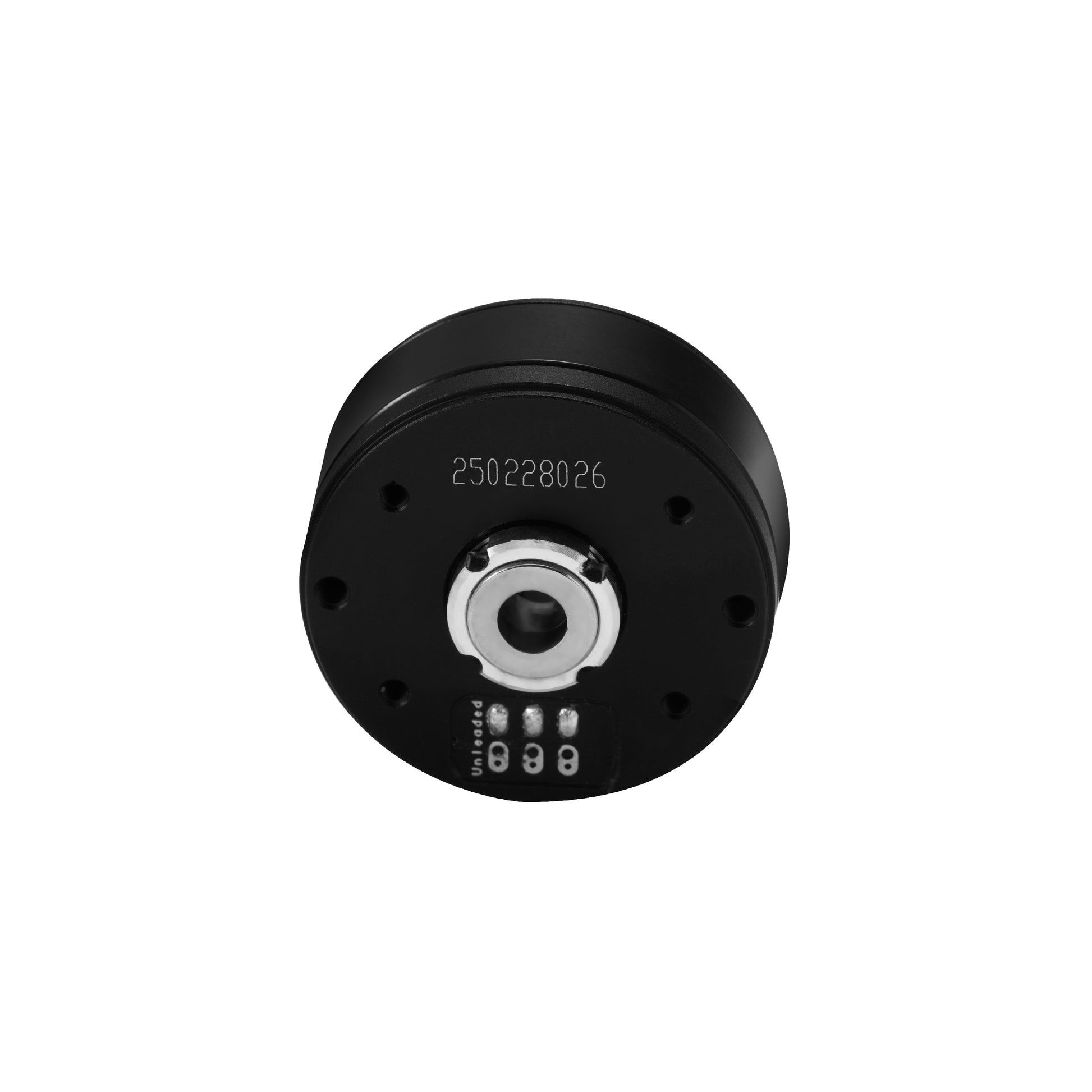

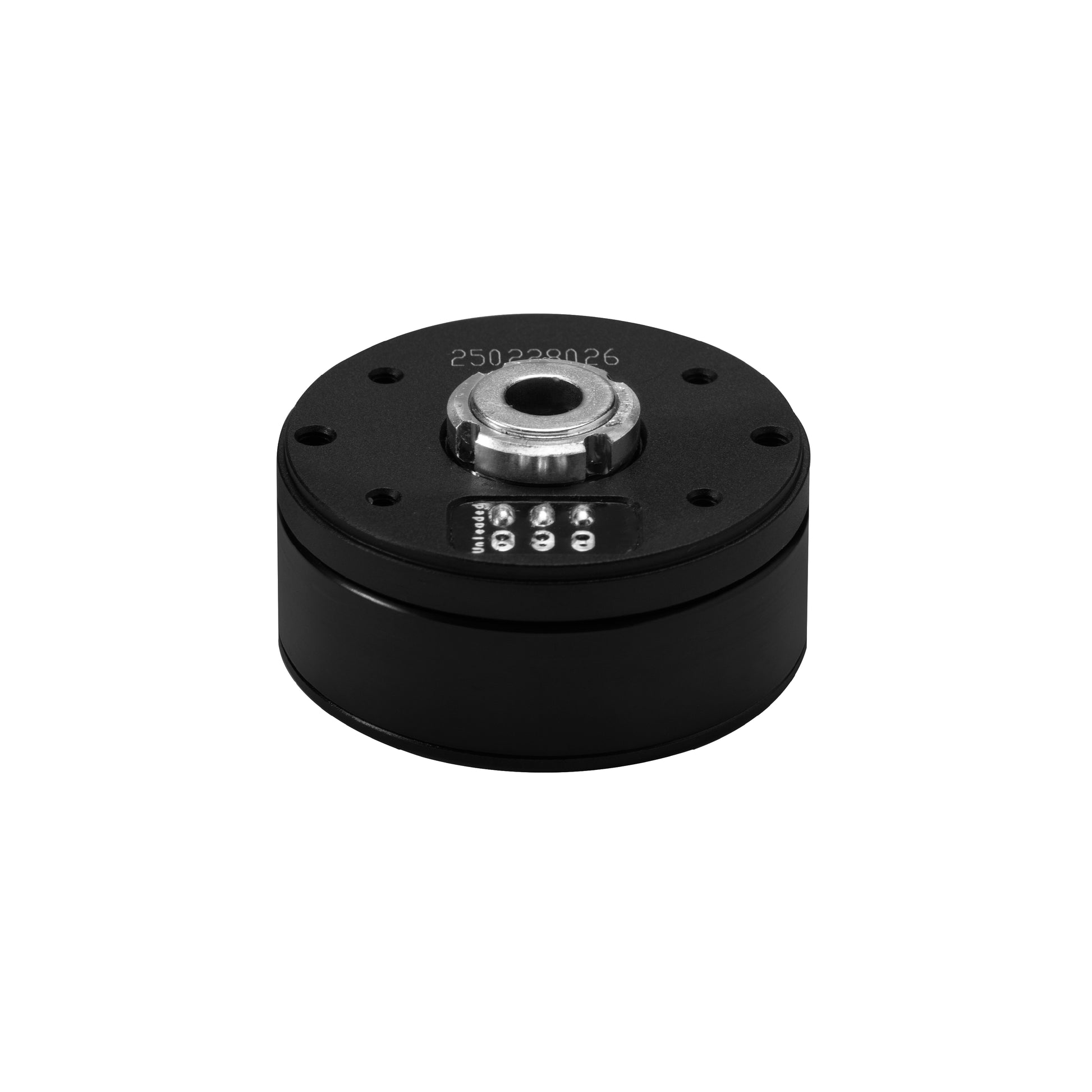

3. About the "only motor" option: It only includes the GB2806 motor, without rear cover or encoder.

CAD Files Download:
GB2806 2D Drawing
GB2806 3D Model.STEP
GB2806 3D Model (with encoder cover).STEP

More Information：
Gimbal Motor Selection Table

If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Introducing the GB2806 Brushless DC Motor – a compact powerhouse that redefines precision and efficiency in motion control! Designed to meet the rigorous demands of modern applications, this motor combines cutting-edge technology with robust performance, making it the ideal choice for professionals and enthusiasts alike.

With a nimble 12V rated voltage, the GB2806 achieves an impressive maximum speed of 2335RPM, delivering rapid and accurate motion that's perfect for time-sensitive tasks. Its torque constant of 0.07Nm ensures a steady and reliable output.

detailed parameters
