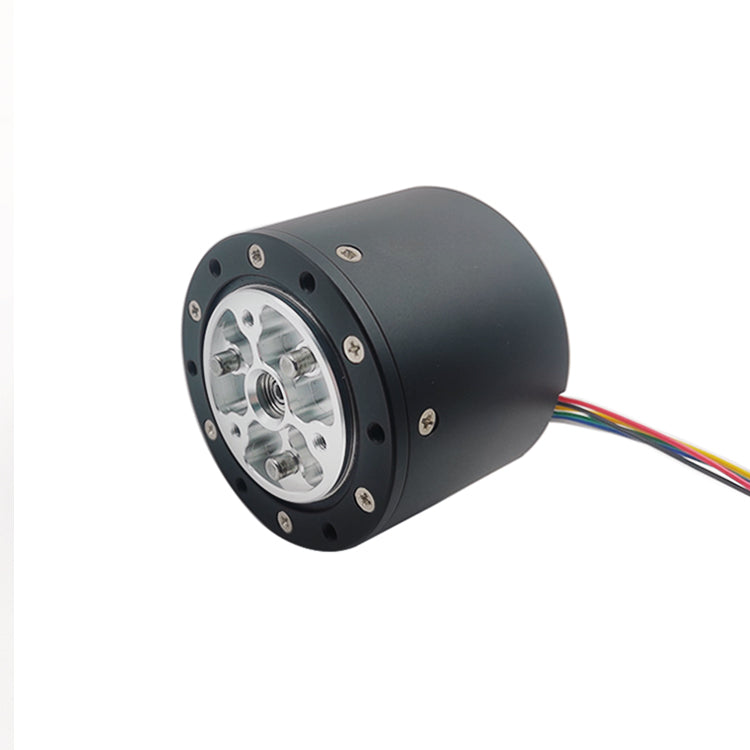

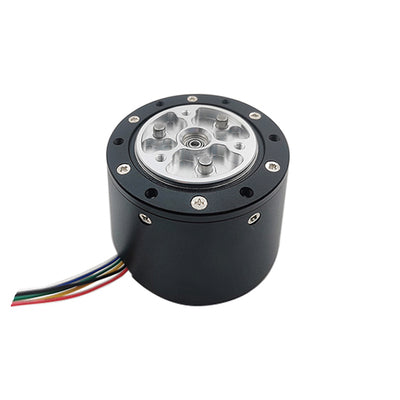

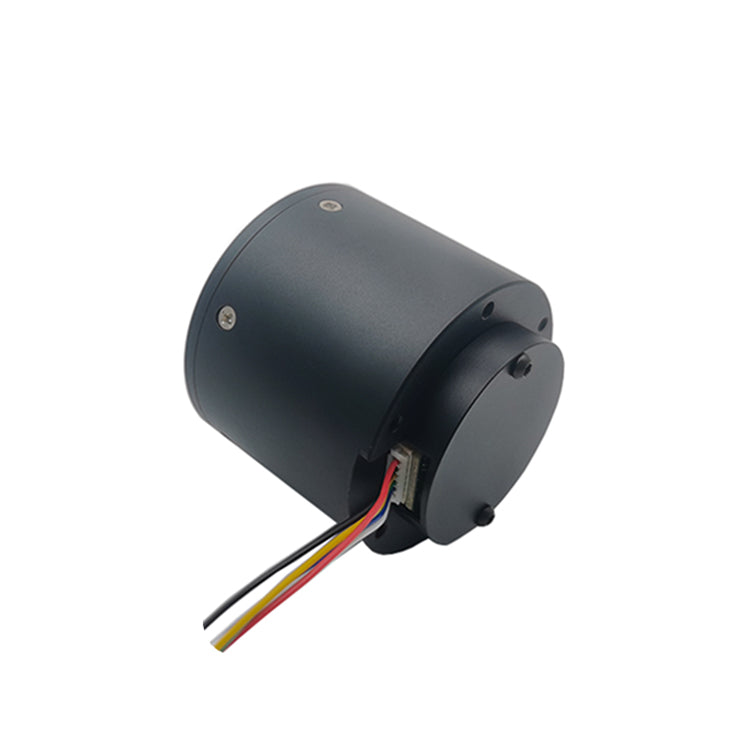

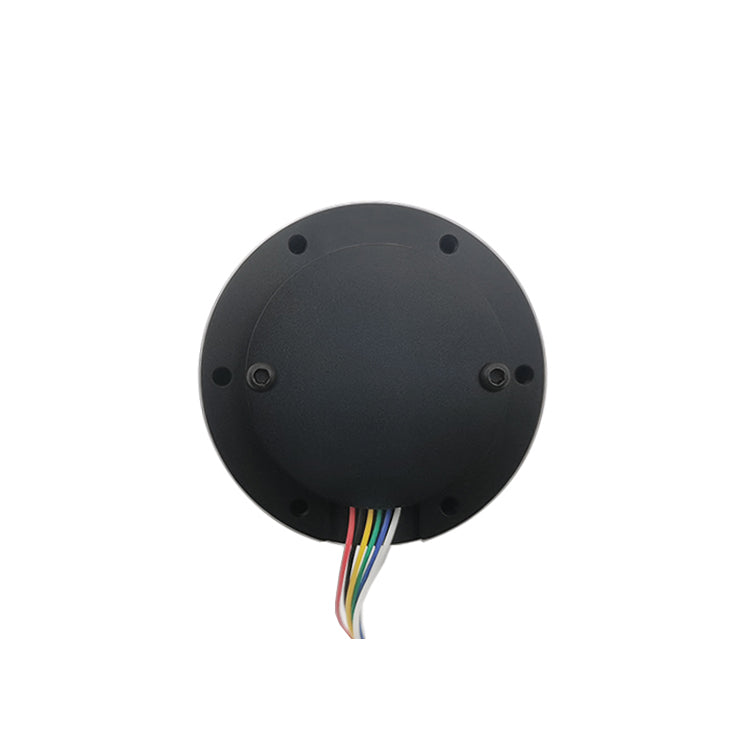

SteadyWin GIM4310-36 Built-in Planetary Reduction High Torque Small Volume Quadruped Robot Motor Joint Servo Motor

SteadyWin GIM4310-36 Built-in Planetary Reduction High Torque Small Volume Quadruped Robot Motor Joint Servo Motor

(100+ ratings)

$100.00

$150.00

GIM4310-36 Motor

without Driver
with GDZ34 Driver
with GDS34 Driver
USB-485 Adapter( for GDZ driver)
CP2102 (for GDS driver)

Quantity

Must-Read Before Ordering !!!

Q&A

Q 1 : What's the difference between GDZ34 driver and GDS34 driver?

A: The GDZ34 driver supports three communication protocols: CAN, 485, and Modbus, while the GDS34 drive board supports CAN communication.

Please Note：

For GIM4310-36 motor, dual encoders not supported.

【 Dual encoder support is not available for models GIM3505-8, GIM4305-10, GIM4310-10, GIM4310-36 and GIM10015-9.
Standard for all other models in GIM series.】

If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ34 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS34 driver board, a CP2102 must be used.

CAD Files Download：
GIM4310-36 2D Drawing.pdf
GIM4310-36 3D Model.STEP

Document of Driver Download：
GDZ34 Driver
GDS34 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Introducing the GIM4310-36 Planetary Gear Reducer – the pinnacle of precision, power, and protection for your robotic and mechanical marvels! Engineered to perfection, this gear reducer combines cutting-edge technology with robust design, making it the go-to choice for applications that demand high torque, reliability, and safety.

With a versatile voltage range of 12V to 48V, the GIM4310-36 adapts effortlessly to various power configurations, ensuring seamless integration into your existing systems. Its operational speed range of 41-63RPM provides the perfect balance between speed and torque, making it ideal for robotic joints, mechanical dog joints, and other applications where precise motion control is crucial.

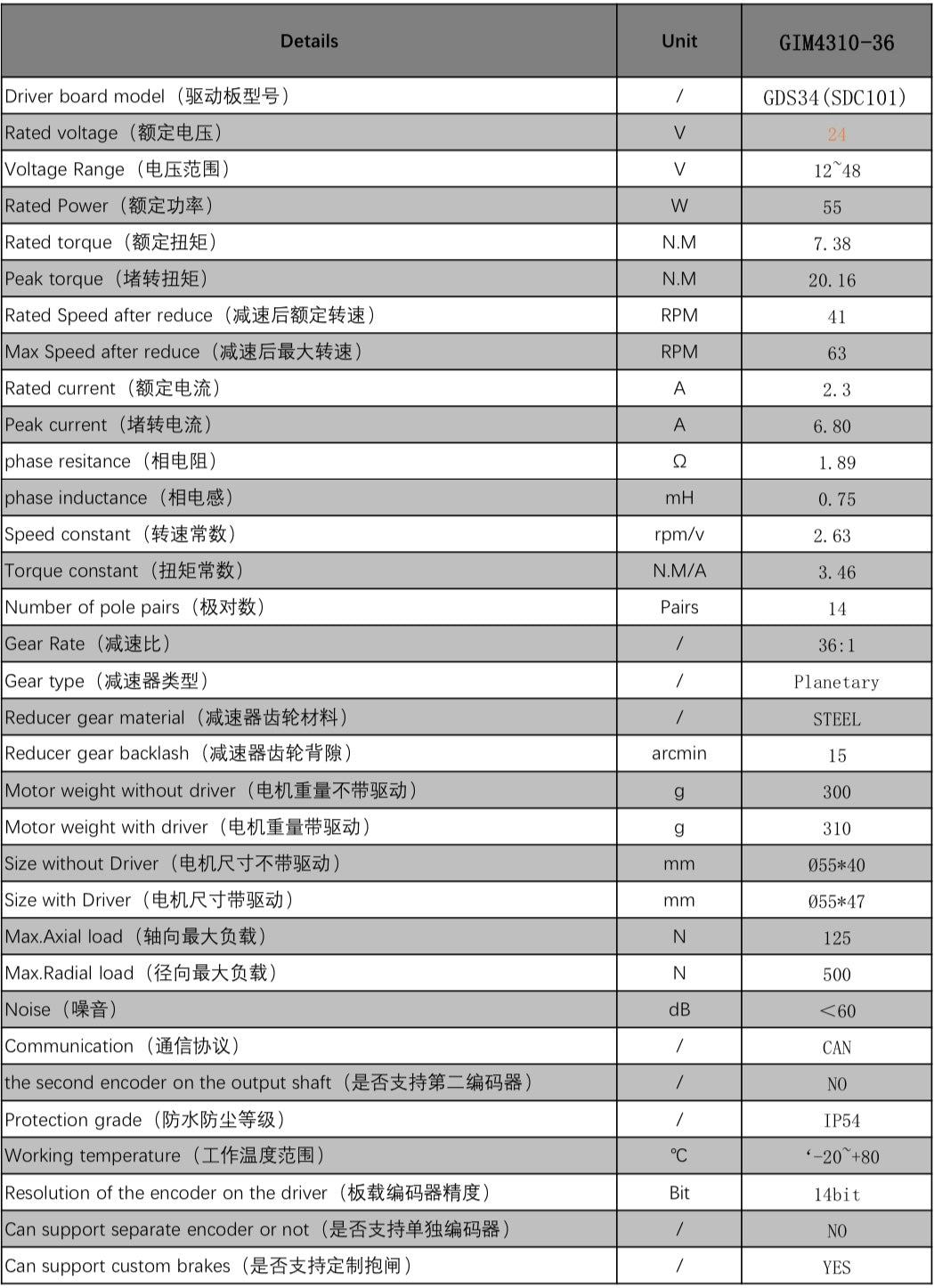

detailed parameters
