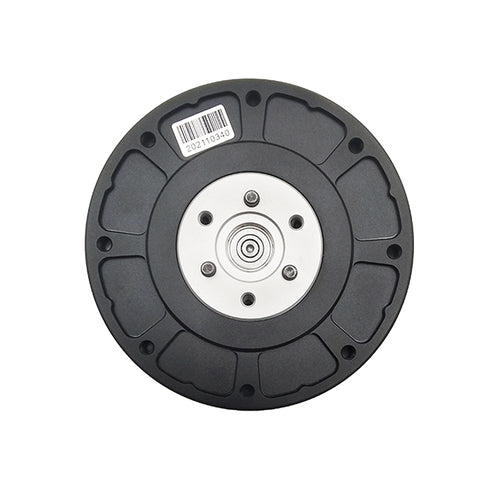

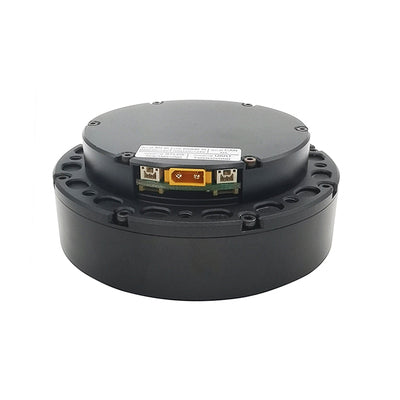

チーター四足ロボット犬高トルクブラシレス減速ギアモーター外骨格産業用ロボットアーム

Questions & Answers

Have a Question?

Be the first to ask a question about this.

Ask a Question

チーター四足ロボット犬高トルクブラシレス減速ギアモーター外骨格産業用ロボットアーム

チーター四足ロボット犬高トルクブラシレス減速ギアモーター外骨格産業用ロボットアーム

(100+ ratings)

$119.80

$320.00

モーター

運転手なし
ドライバー付き
with GDZ810 Driver with Secondary Encoder
with GDS810 Driver
with GDM810 Driver

Quantity

Must-Read Before Ordering !!!

Q&A

Q 1 : What's the difference between GDZ810 driver, GDM810 driver and GDS810 driver?

A : The GDZ810 driver board supports three communication protocols: CAN, 485, and Modbus,
the GDS810 drive board supports CAN communication,
the GDM810 driver is MIT driver.

Q 2 : What's the function of the secondary encoder?

A: The sole function of the secondary encoder is to remember the single-turn position after a power loss. 【 not to mitigate the backlash】

Please Note：

If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ810 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS810 driver board, a CP2102 is needed.
· For the GDM810 driver board, a USB2CAN adapter must be used.

CAD Files Download:
GIM8108-6 2D Drawing
GIM8108-6 3D Model.STEP

Document of Driver Download：
GDZ810 Driver
GDS810 Driver
GDM810 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

The reducer boasts an operating speed range of 152 - 199RPM. This precise speed control is crucial for applications that demand accurate motion, such as robotic joints. It allows for fine - tuning of the movement, enabling robots and mechanical dogs to perform tasks with high precision, whether it's a delicate grasping motion or a dynamic running gait.

With a wide operating voltage range of 12 - 40V, the GIM8108 - 6 offers unparalleled flexibility. Whether you're working with a low - voltage, compact power source or a more robust, higher - voltage system, this reducer can seamlessly integrate. This adaptability ensures that it can be used in a variety of applications, from small - scale robotic prototypes to large - scale industrial robots.

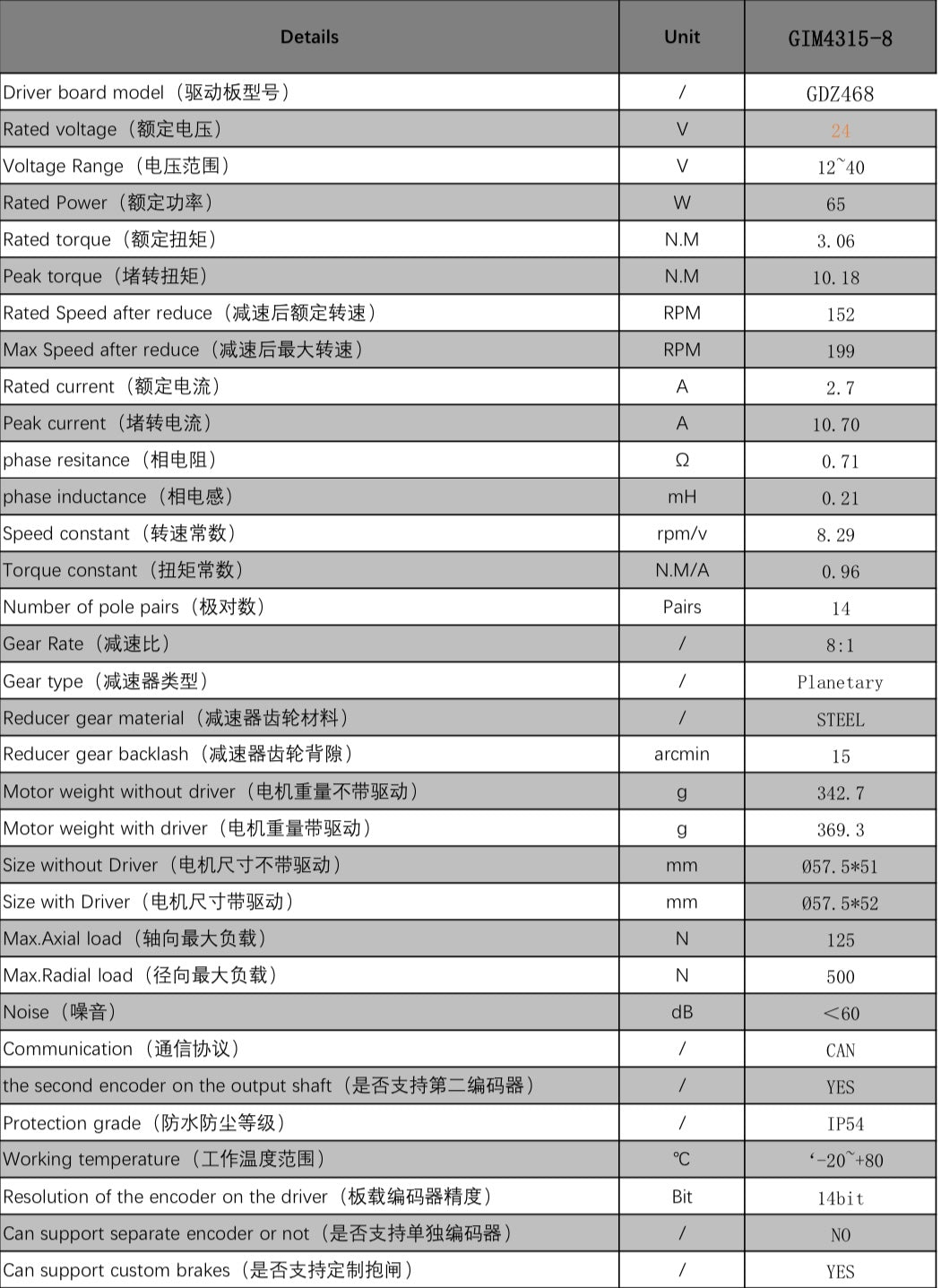

detailed parameters
