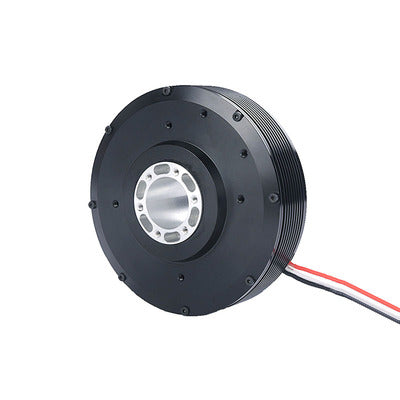

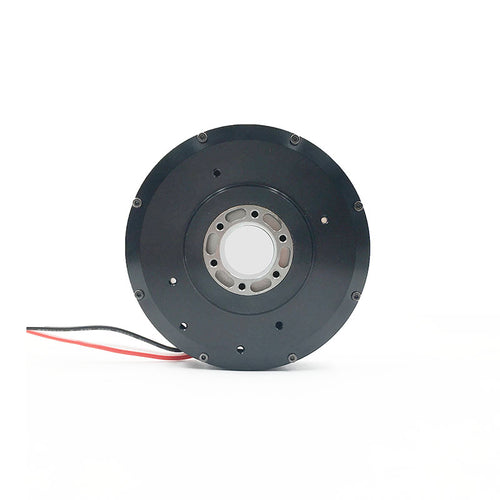

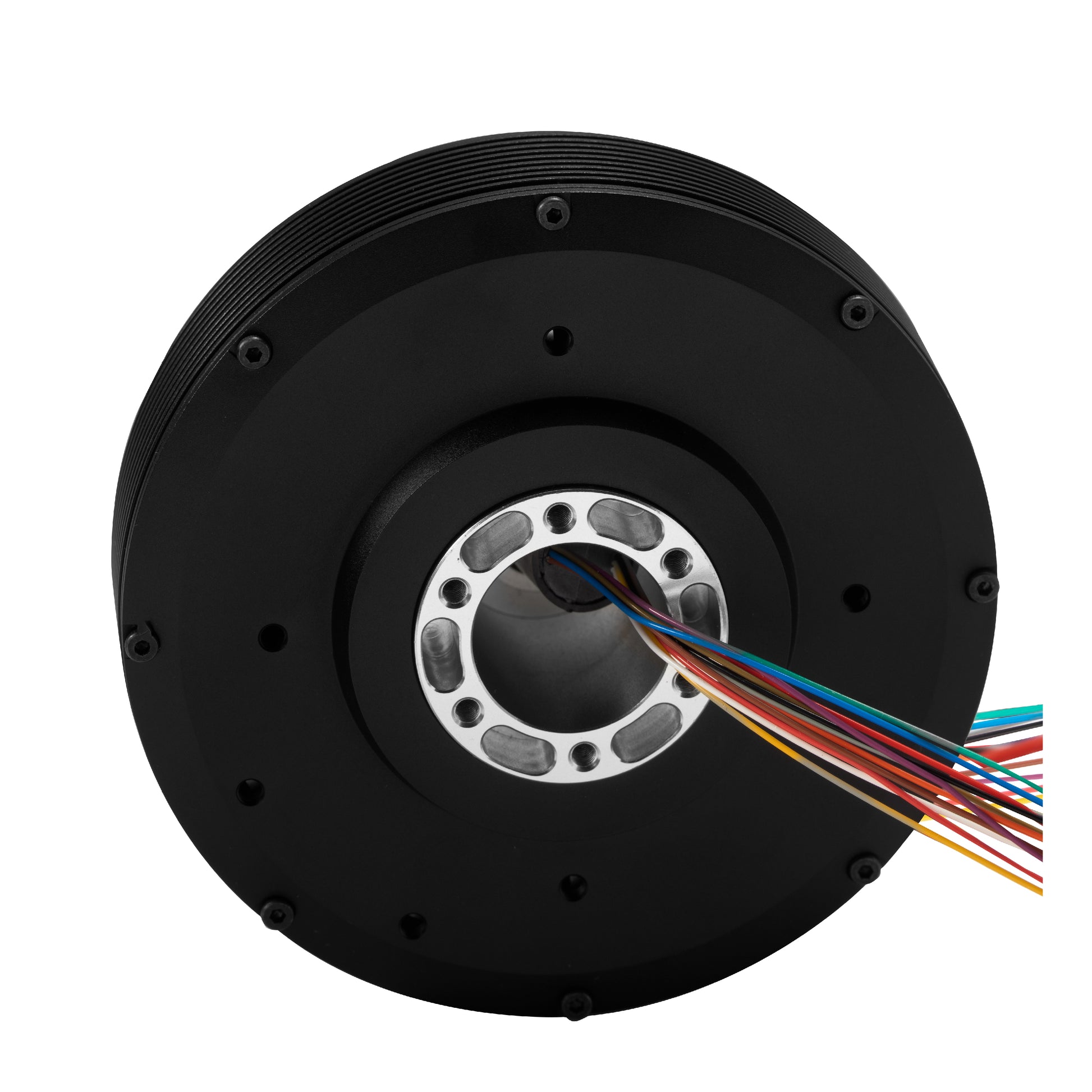

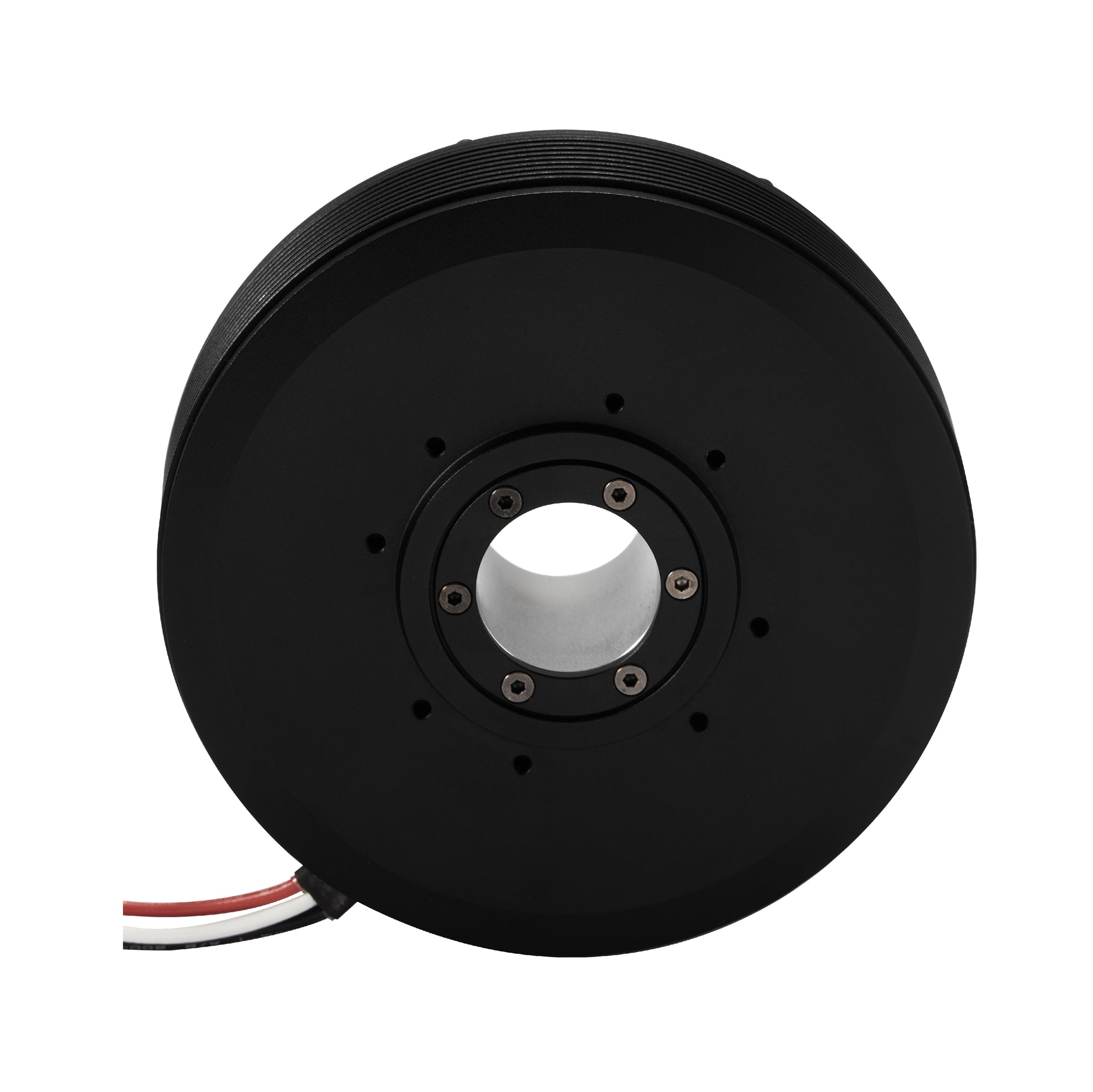

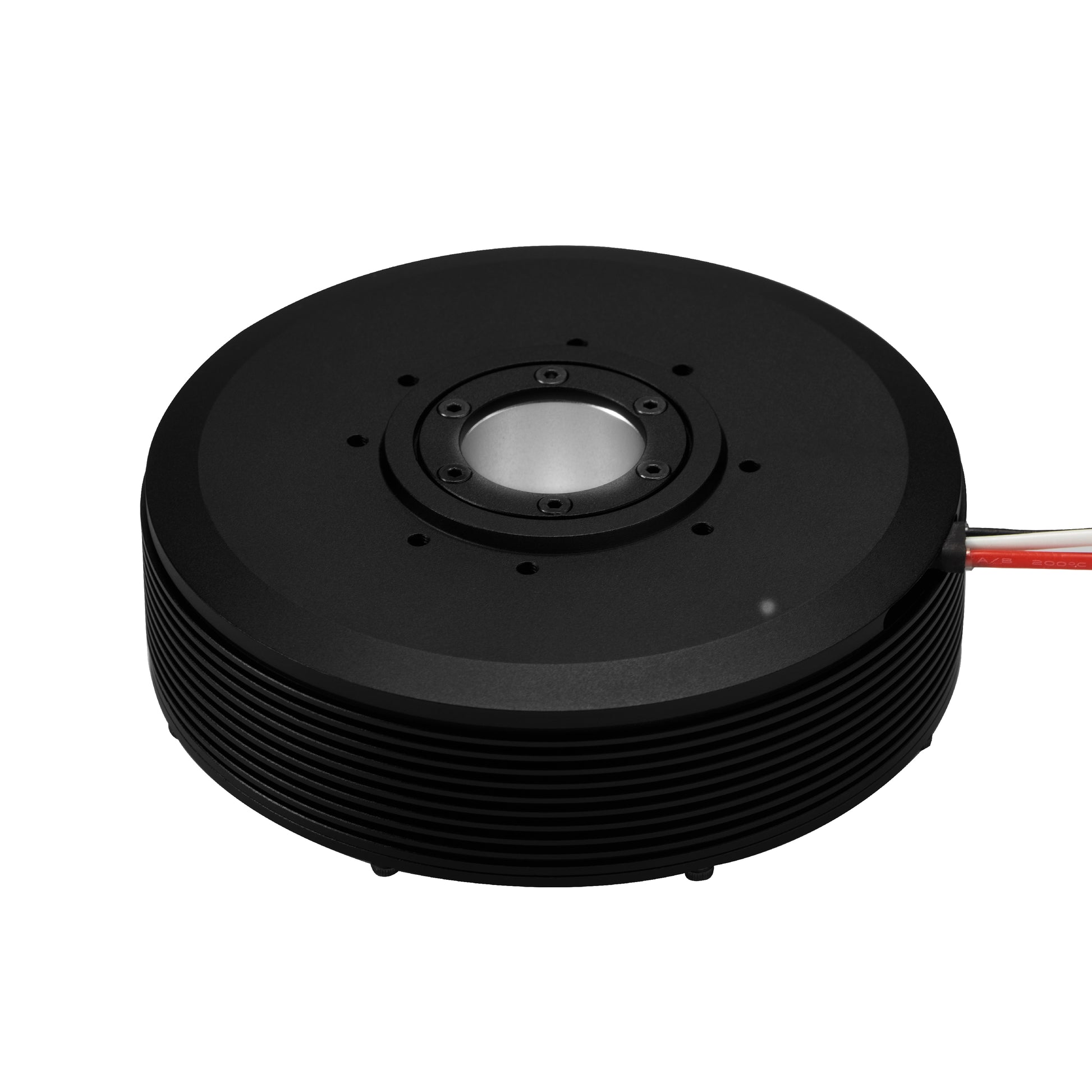

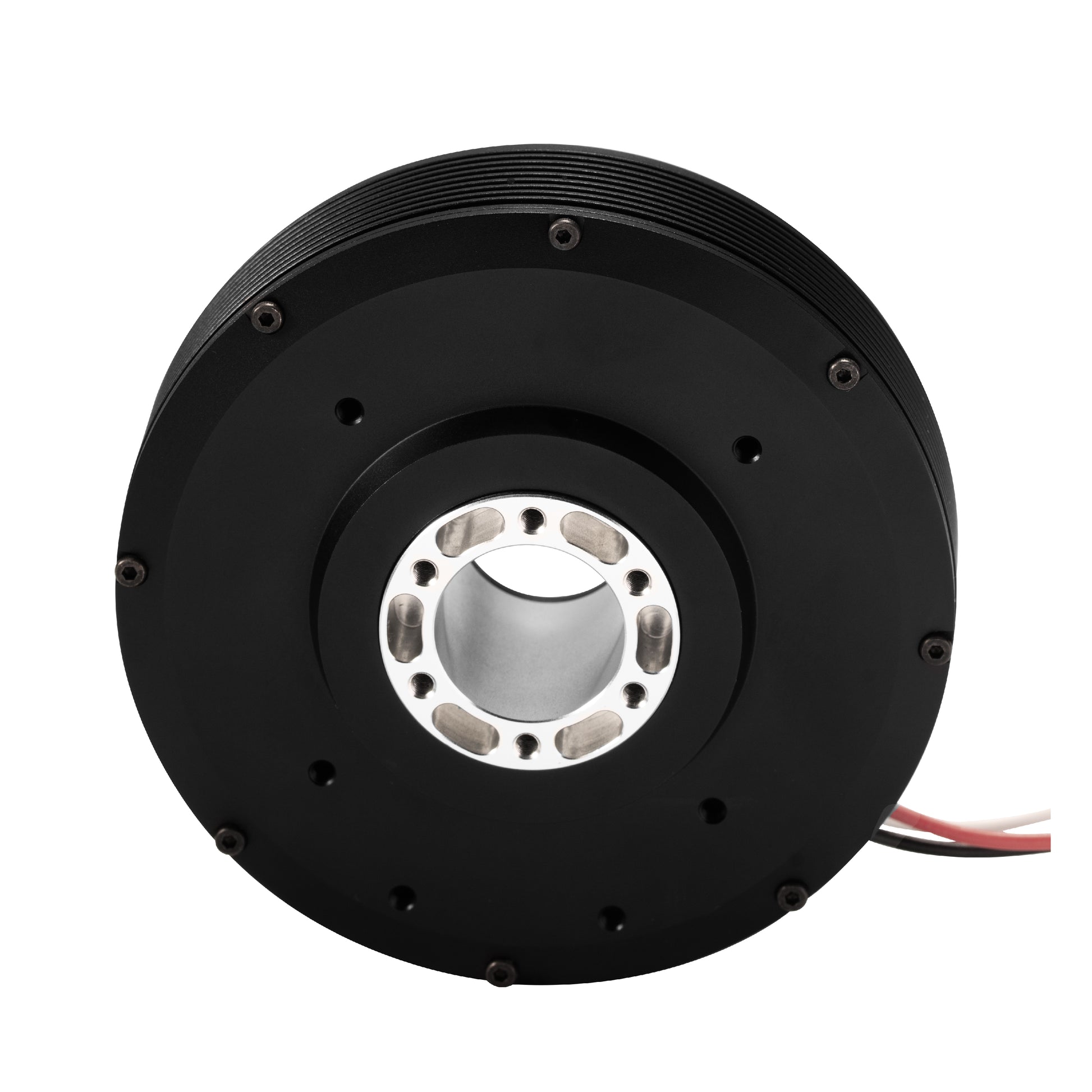

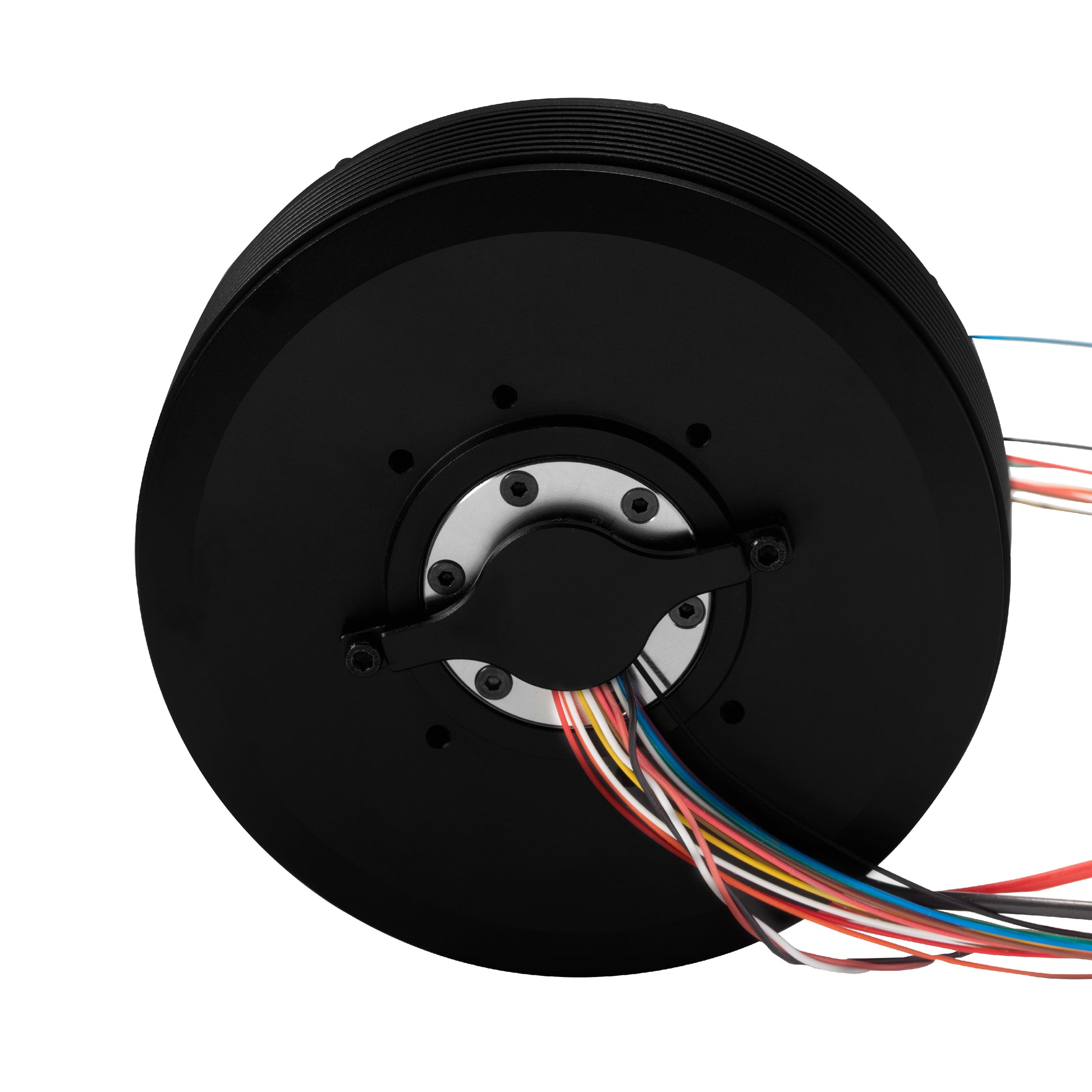

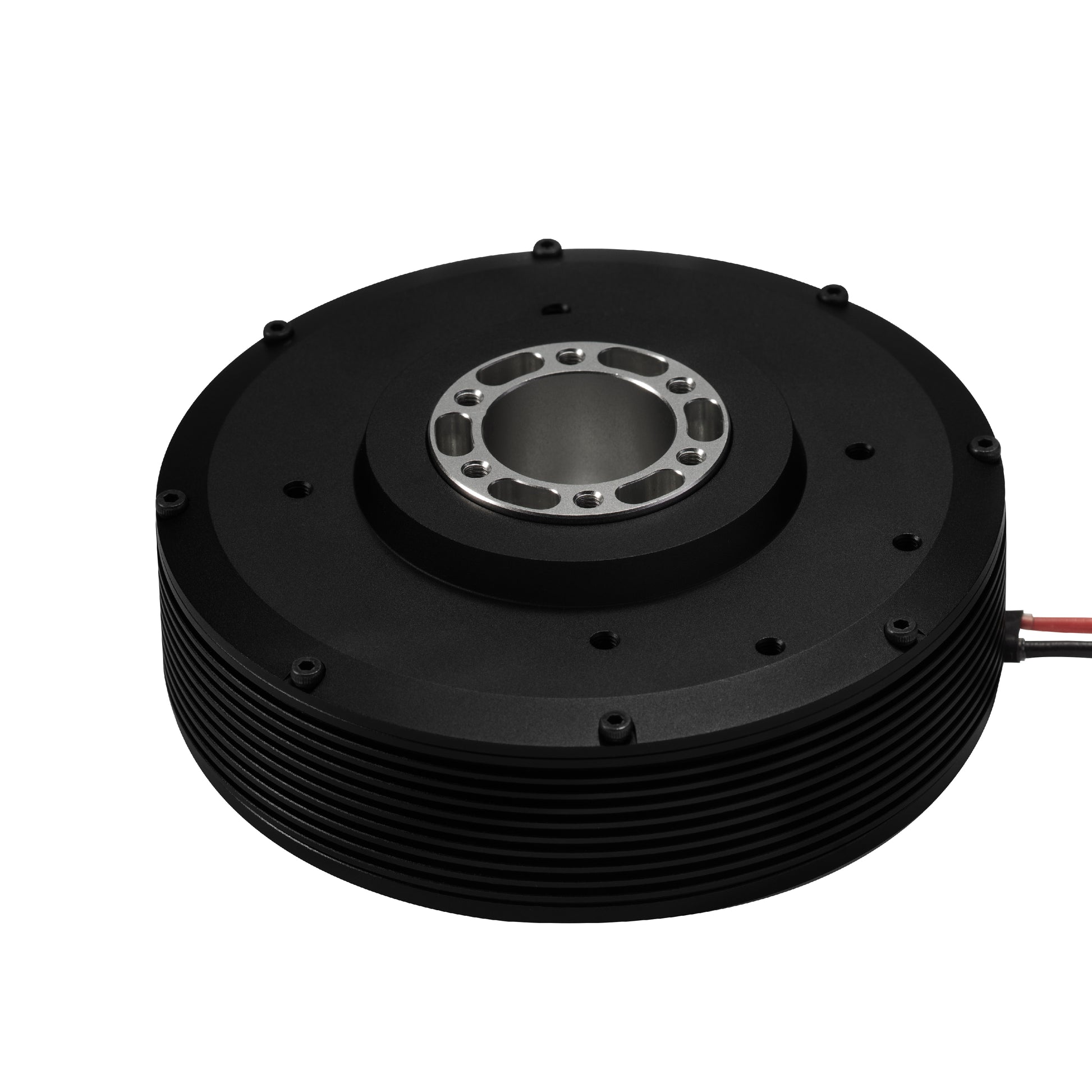

SteadyWin PM100 Brushless Motor Robotic Arm Motor DC Gimbal Motor High Torque Servo Motor

SteadyWin PM100 Brushless Motor Robotic Arm Motor DC Gimbal Motor High Torque Servo Motor

(100+ ratings)

$83.50

$95.00

PM100 Motor

without encoder
with AS5600 encoder
with AS5048A encoder

Quantity

Must-Read Before Ordering !!!

Please Note：

1. About Brushless DC Motor (Gimbal Motor)
Frameless Motor + Housing = Gimbal Motor
A Gimbal Motor ( BLDC Motor) is built from a frameless motor core.
It is designed to be used with an encoder and requires an external driver (e.g., SDC300). Typical applications include camera gimbals, rotating LiDAR, small UAV pods, and precision rotary tables.
【For GB motors, our current solution is to use an external drive.】

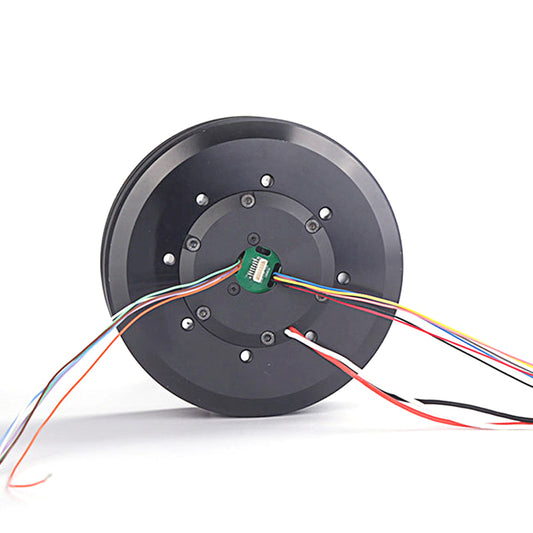

2. About Encoder

1) AS5600 encoder for PWM interface: Default connector type is SH1.0-3P.
2) 【Only AS5048a/AS5047p encoders are compatible with our external driver.】
3) AS5048A encoder for PWM interface: Default connector type is SH1.0-3P
(will be replaced with GH1.25-3P when used with our external driver).
4) AS5048A encoder for SPI interface: Default connector type is GH1.25-6P.

For other requirements, please contact: info@steadywin-motor.com

3. About the "only motor" option: It only includes the PM100 motor, without rear cover or encoder.

CAD Files Download:
PM100 2D Drawing
PM100 3D Model.STEP

More Information：
Gimbal Motor Selection Table

If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Redefine motion control with the PM100, a cutting-edge brushless DC motor engineered to deliver unmatched performance, efficiency, and reliability. Whether you're automating industrial processes, stabilizing gimbals for professional-grade footage, powering heavy-duty electric tools, enhancing smart home appliances, or propelling drones to new heights, the PM100 is your trusted partner for excellence.

With a 24V rated voltage and a maximum speed of 566RPM, the PM100 strikes the perfect balance between torque and speed, ensuring smooth and responsive operation in even the most demanding environments. Its robust torque constant of 0.39Nm guarantees consistent and reliable performance, empowering you to tackle tasks with confidence and precision.

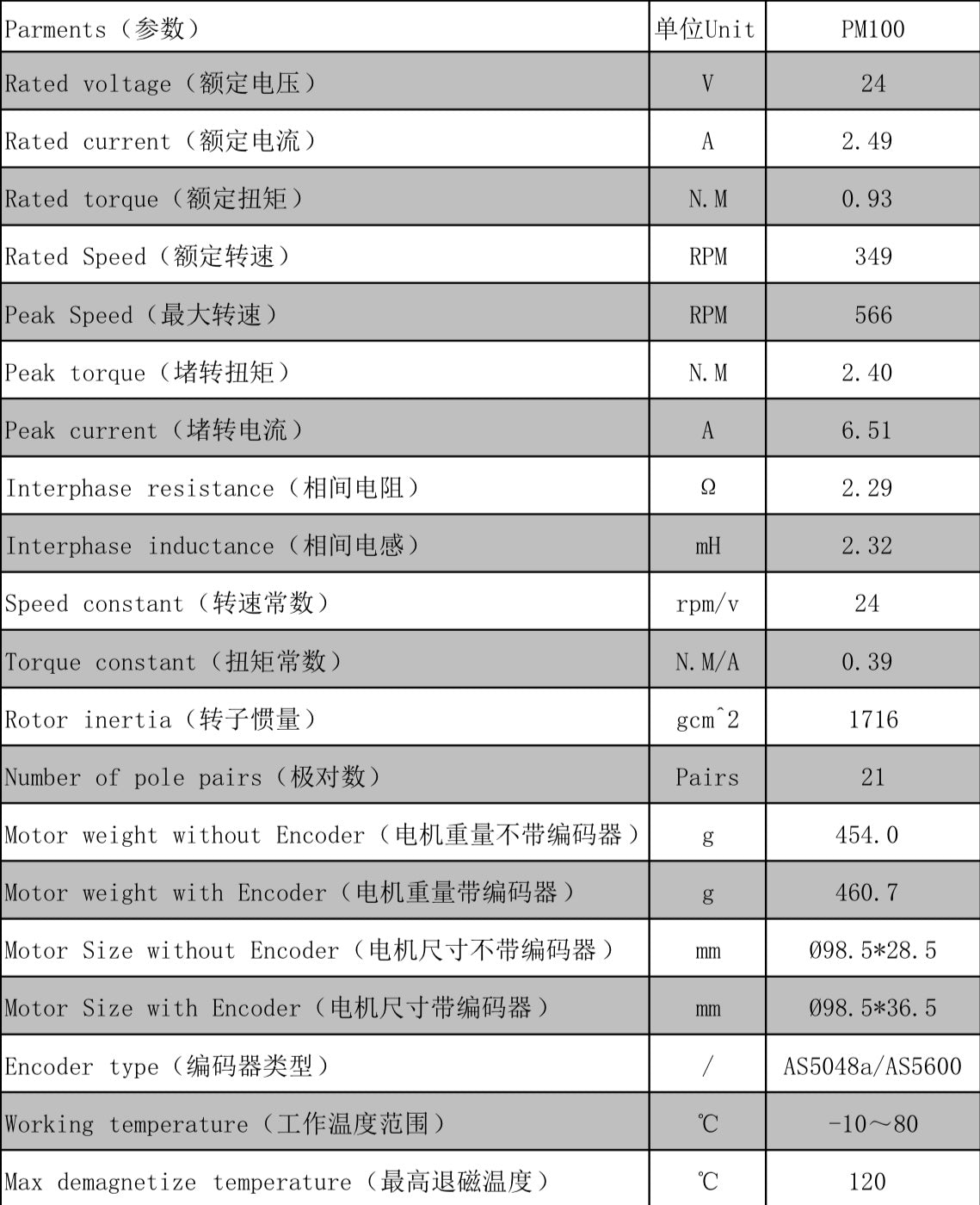

detailed parameters
