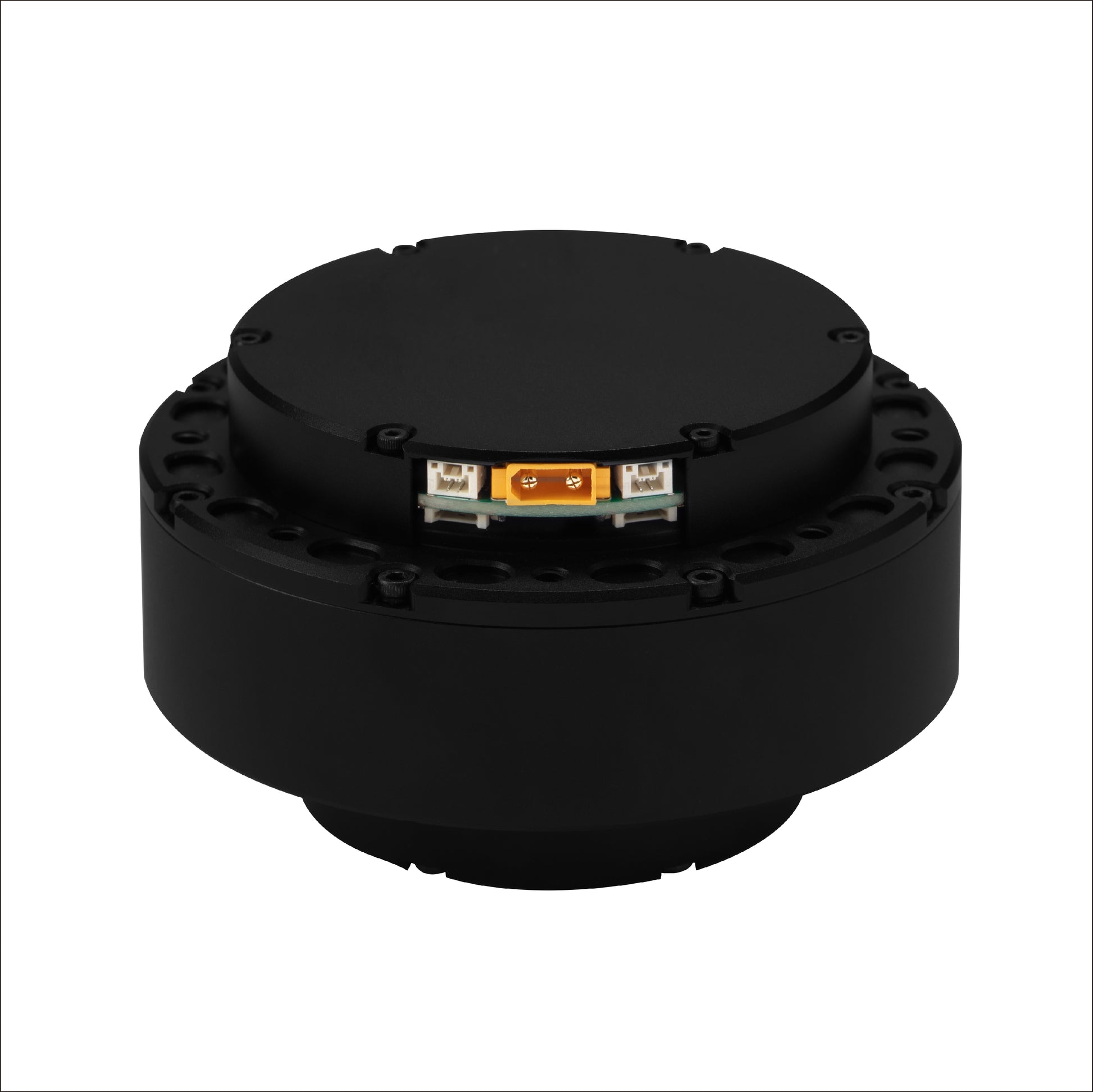

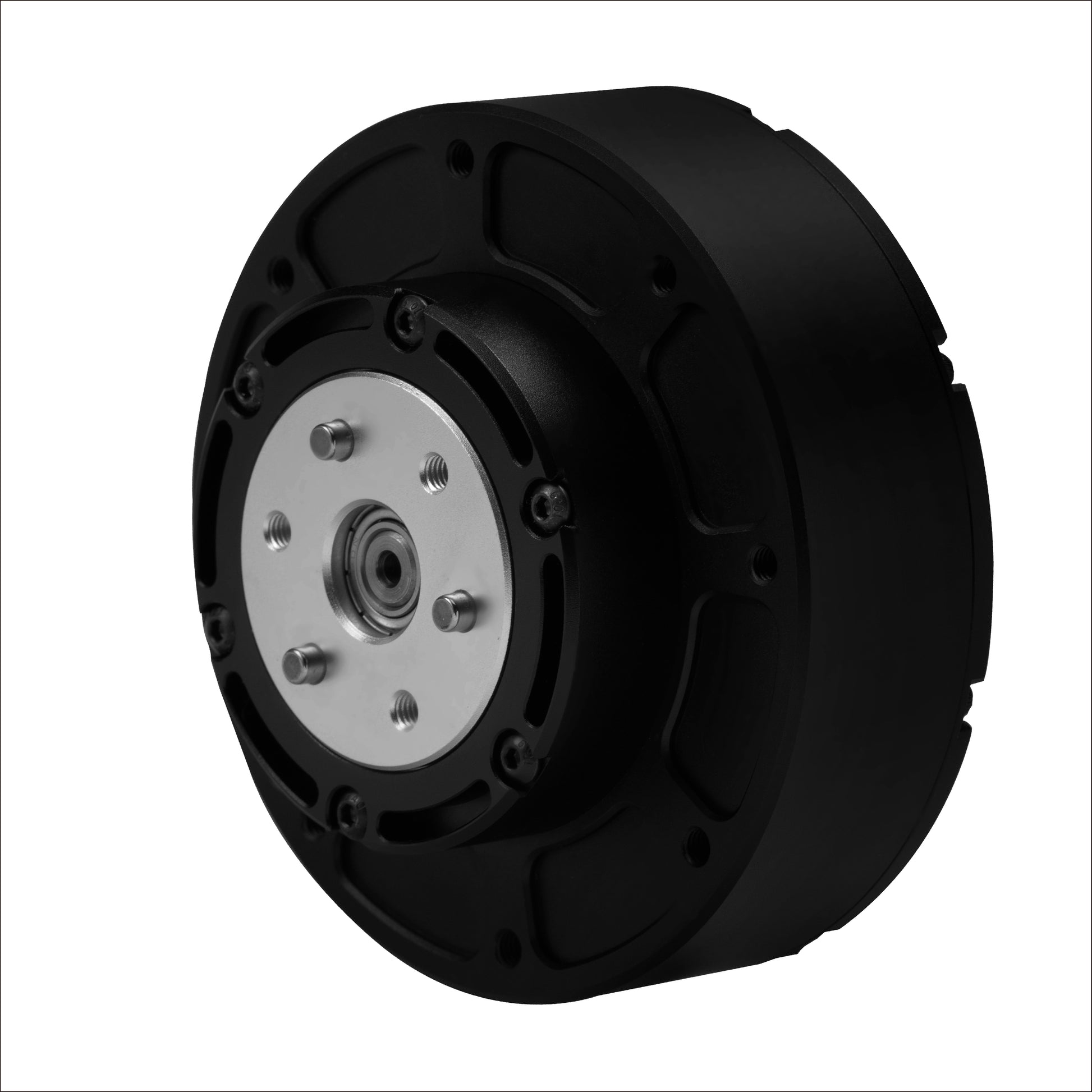

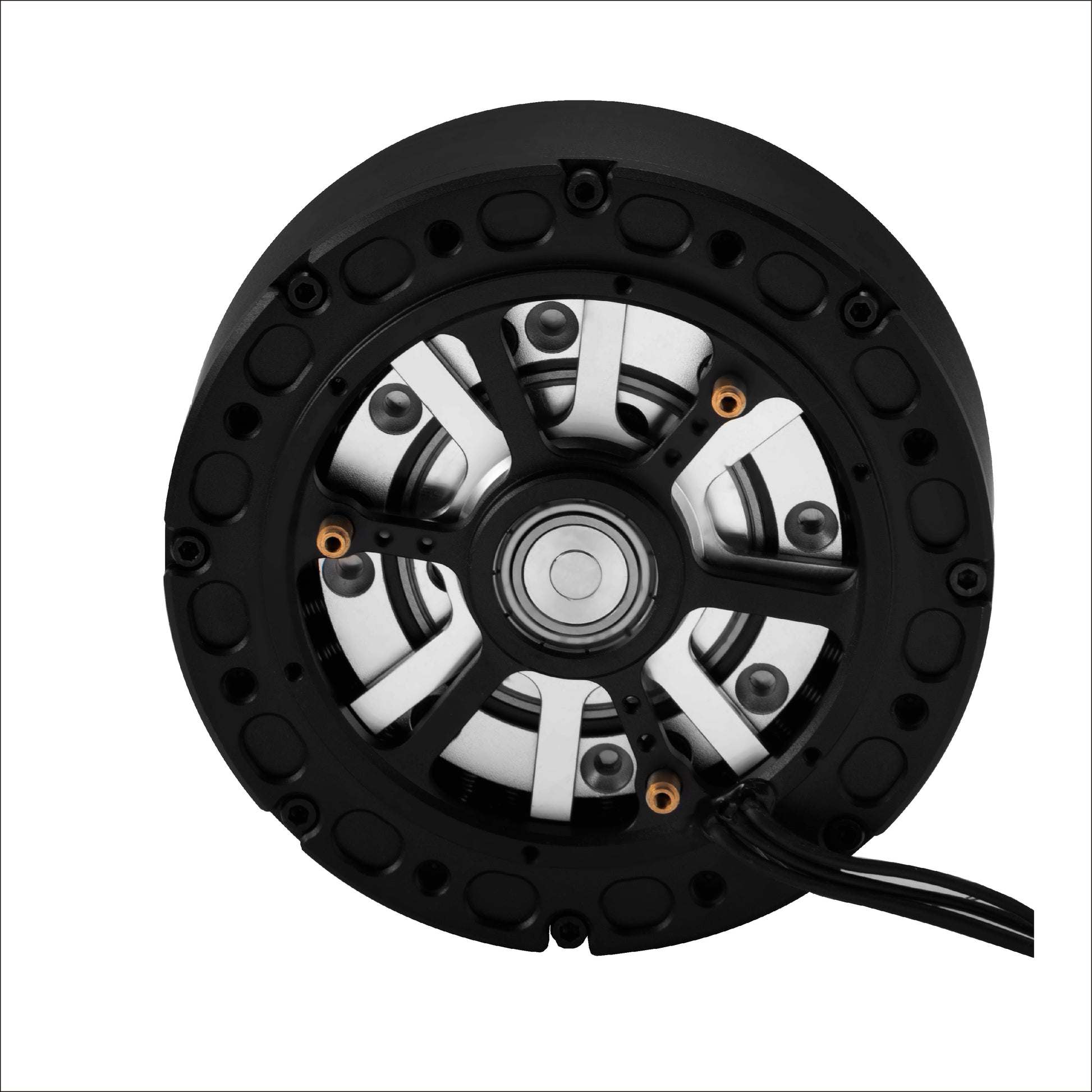

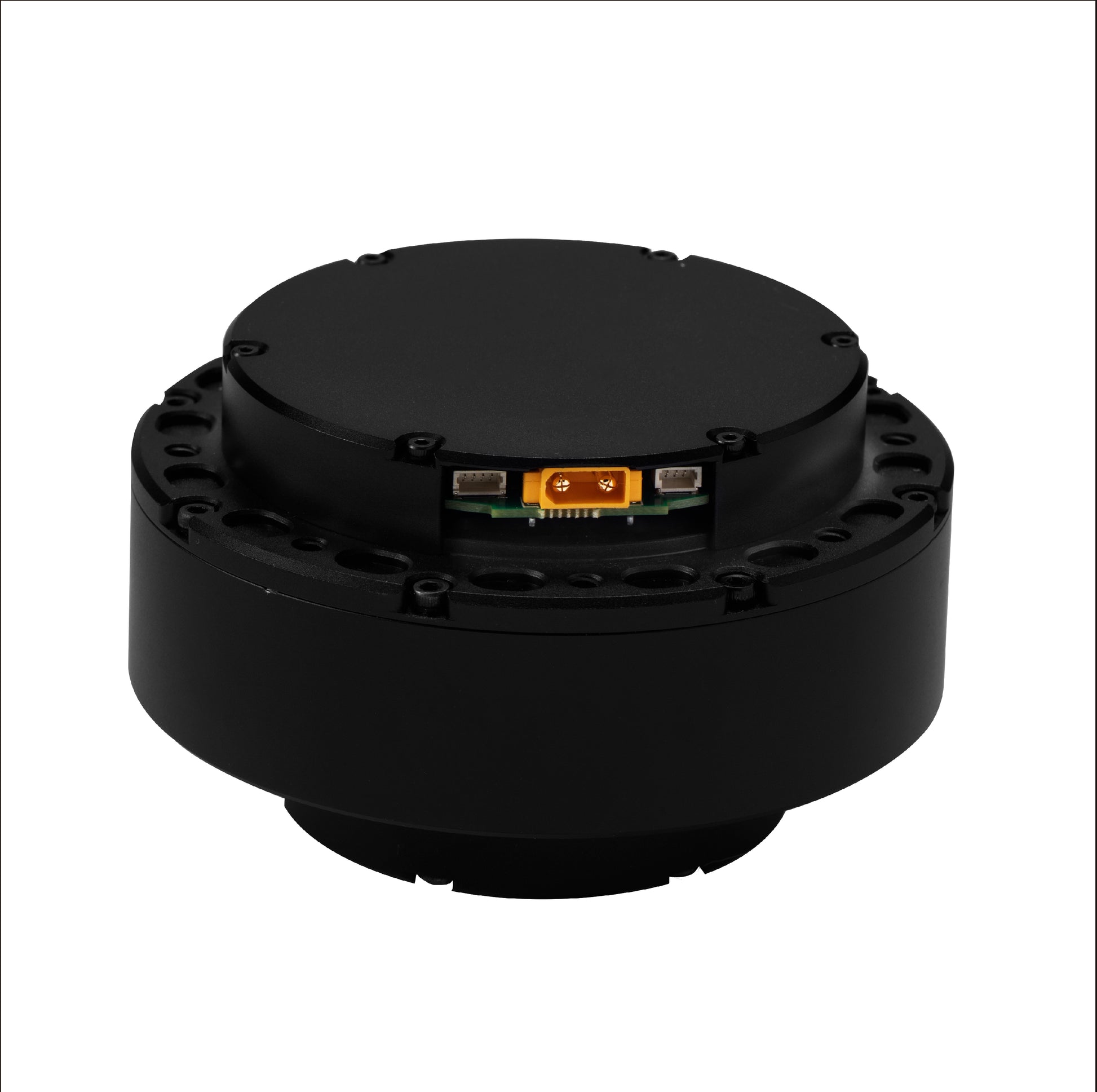

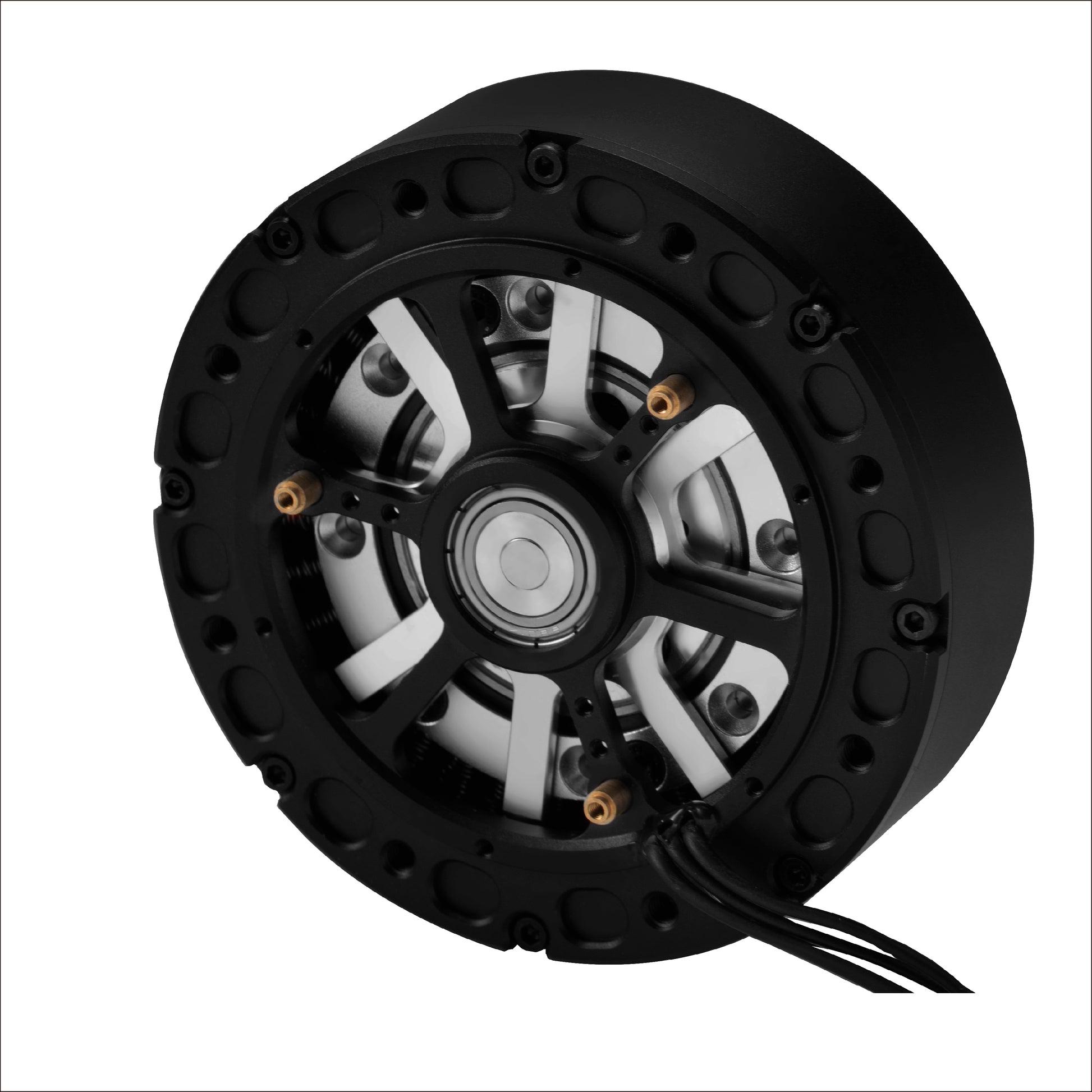

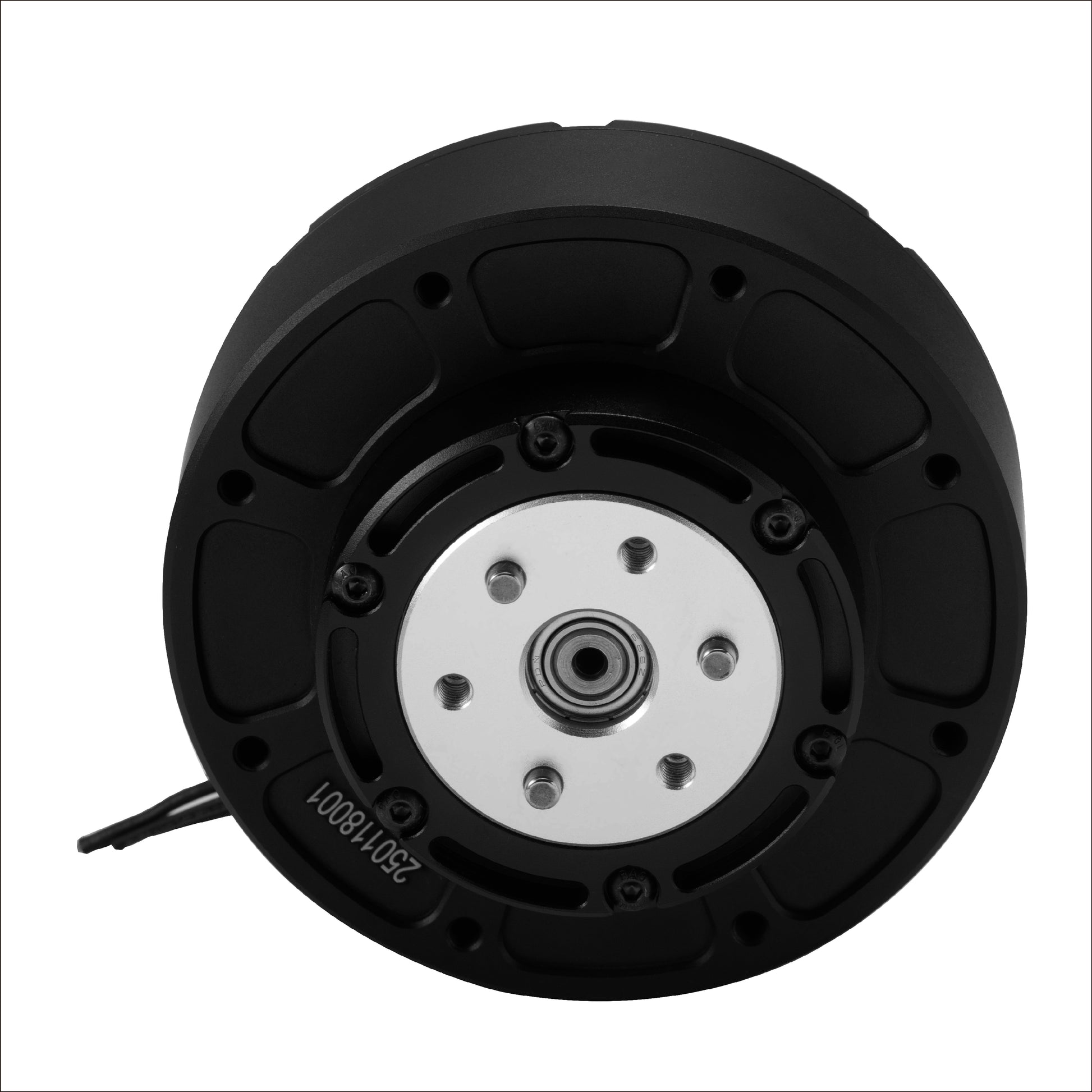

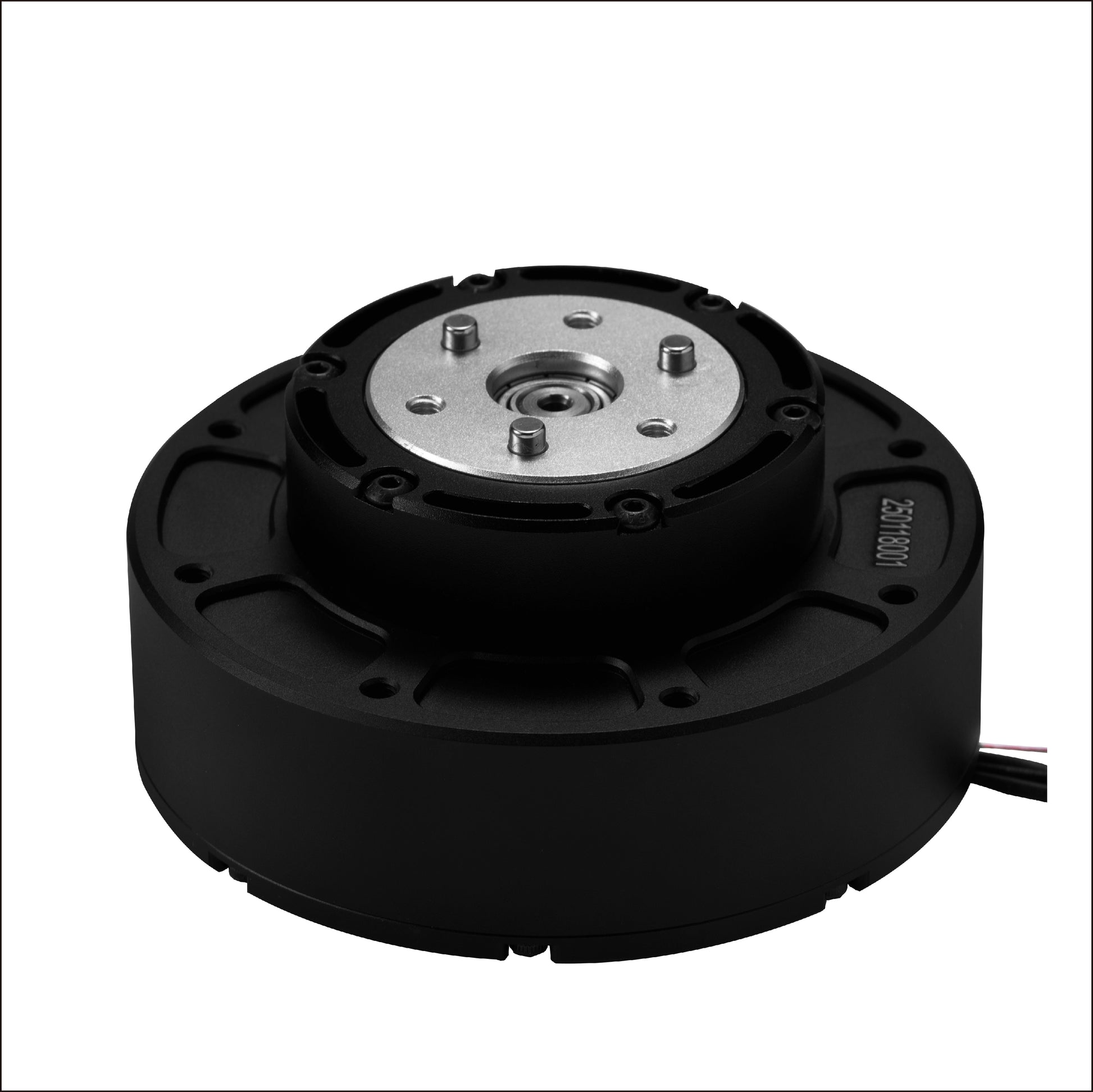

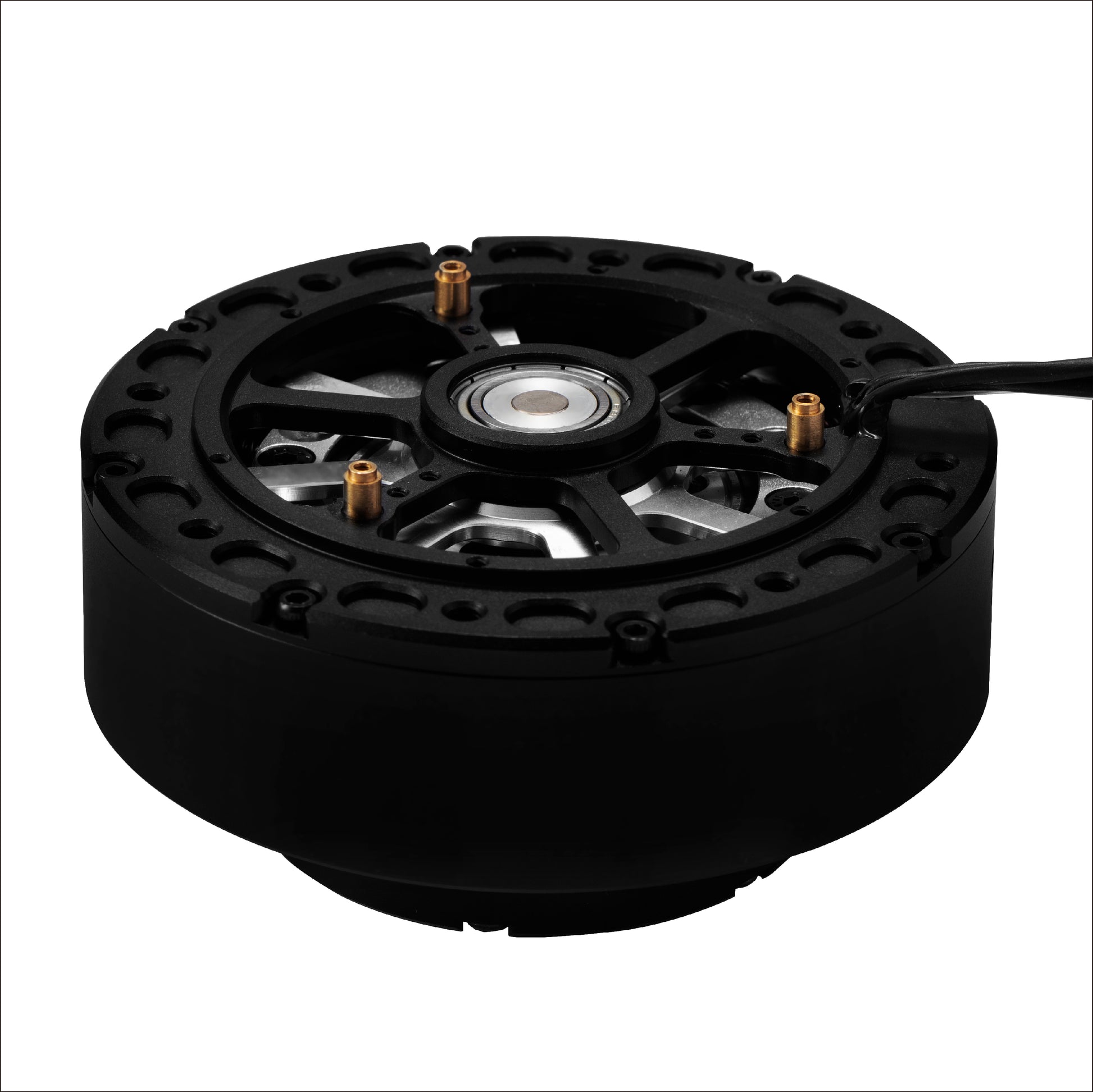

SteadyWin GIM8108-36 Biped wheeled large torque mechanical dog joint actuator high performance built-in driver

SteadyWin GIM8108-36 Biped wheeled large torque mechanical dog joint actuator high performance built-in driver

(100+ ratings)

$170.00

{price}% OFF

GIM8108-36 Motor

without driver
with GDZ810 Driver
with GDM810 Driver
with GDS810 Driver
with GDZ810 Driver with Secondary Encoder

Operating Voltage

Quantity

Must-Read Before Ordering !!!

Please note that the dimensions differ between this model with the secondary encoder and the version without it.

Q&A

Q 1 : What's the difference between GDZ810 driver, GDM810 driver and GDS810 driver?

A : The GDZ810 driver board supports three communication protocols: CAN, 485, and Modbus,
the GDS810 drive board supports CAN communication,
the GDM810 driver is MIT driver.

Q 2 : What's the function of the secondary encoder?

A: The sole function of the secondary encoder is to remember the single-turn position after a power loss. 【 not to mitigate the backlash】

Please Note：

1. The dimensions differ between this model with the secondary encoder and the version without it.

2. If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ810 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS810 driver board, a CP2102 is needed.
· For the GDM810 driver board, a USB2CAN adapter must be used.

CAD Files Download:
GIM8108-36 2D Drawing
GIM8108-36 3D Model.STEP

Document of Driver Download：
GDZ810 Driver
GDS810 Driver
GDM810 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

With an operating speed range of 48 - 60RPM, the GIM8108 - 36 strikes the perfect balance between speed and control. It provides just the right amount of rotational velocity to keep your machines moving efficiently while maintaining the precision needed for complex tasks. And when it comes to torque, this reducer truly shines. With a torque constant ranging from 1.25Nm to 2.33Nm, it can handle a wide range of loads, from light - duty applications to heavy - duty industrial work.

At the heart of the GIM8108 - 36 lies its advanced planetary reduction mechanism. This ingenious design ensures that speed is reduced smoothly and accurately, providing the kind of fine - tuned motion control that is essential for robot joints and mechanical dog joints. Whether your project demands delicate, precise movements or robust, high - force operations, this reducer is up to the task.
