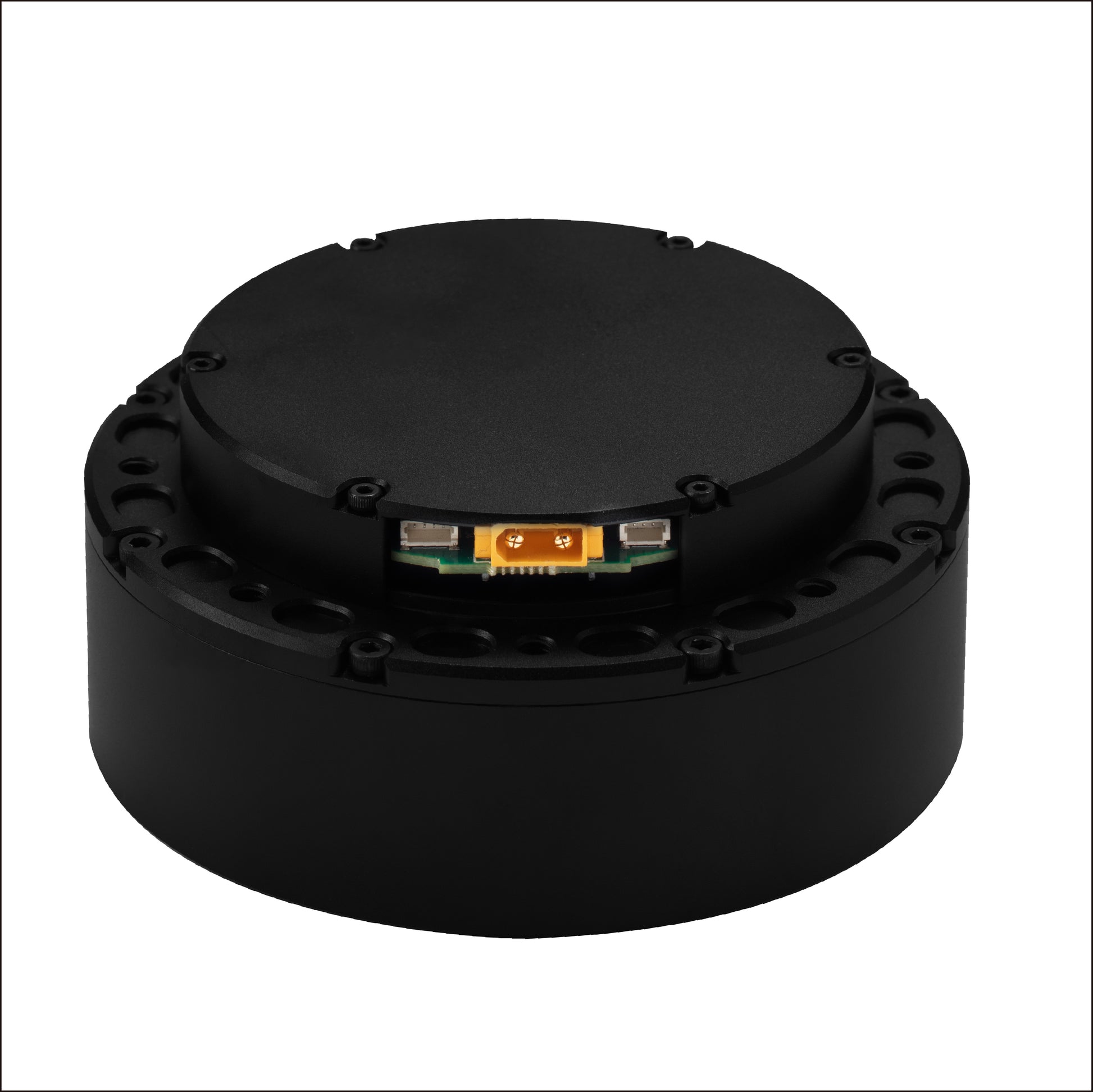

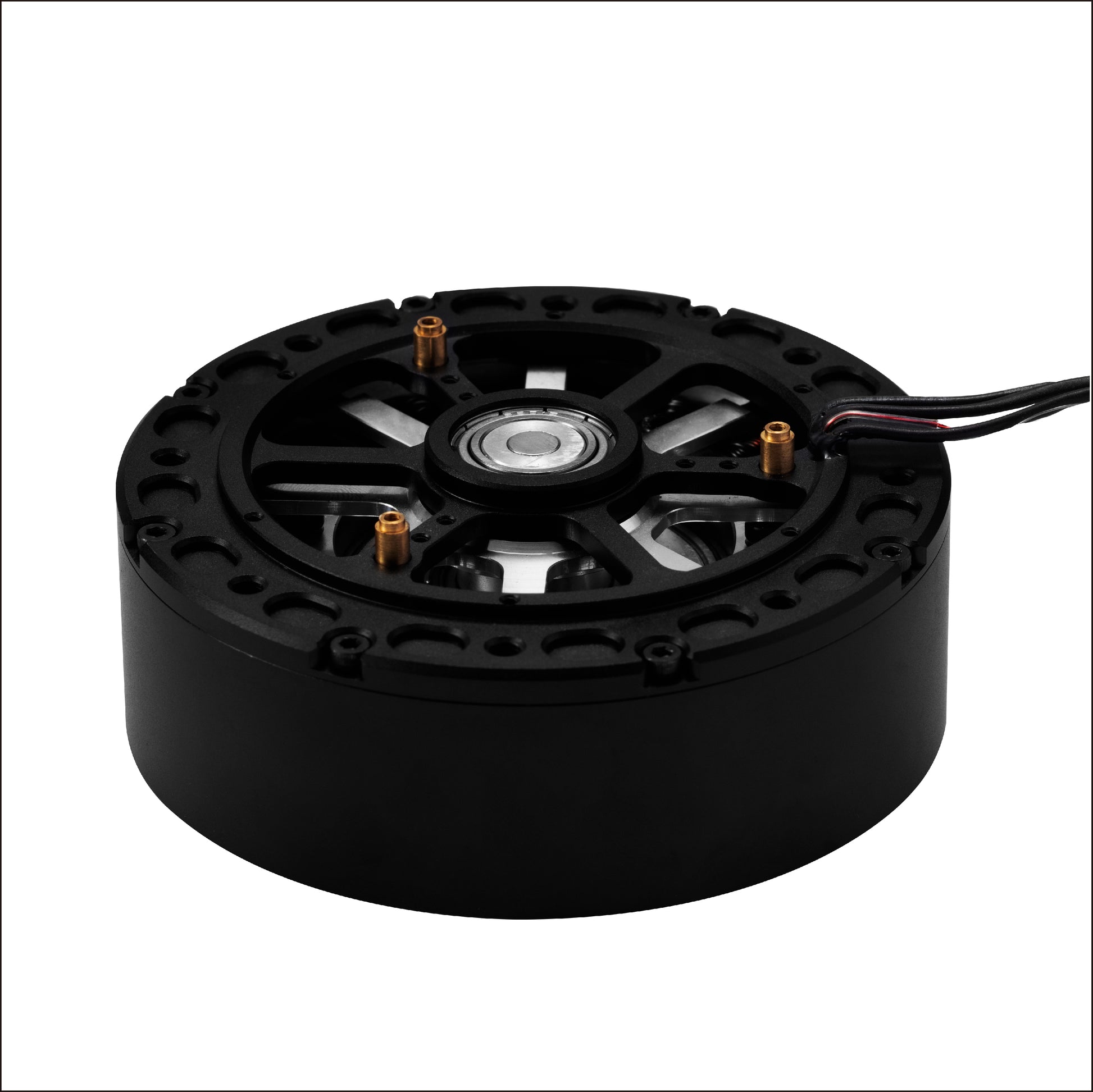

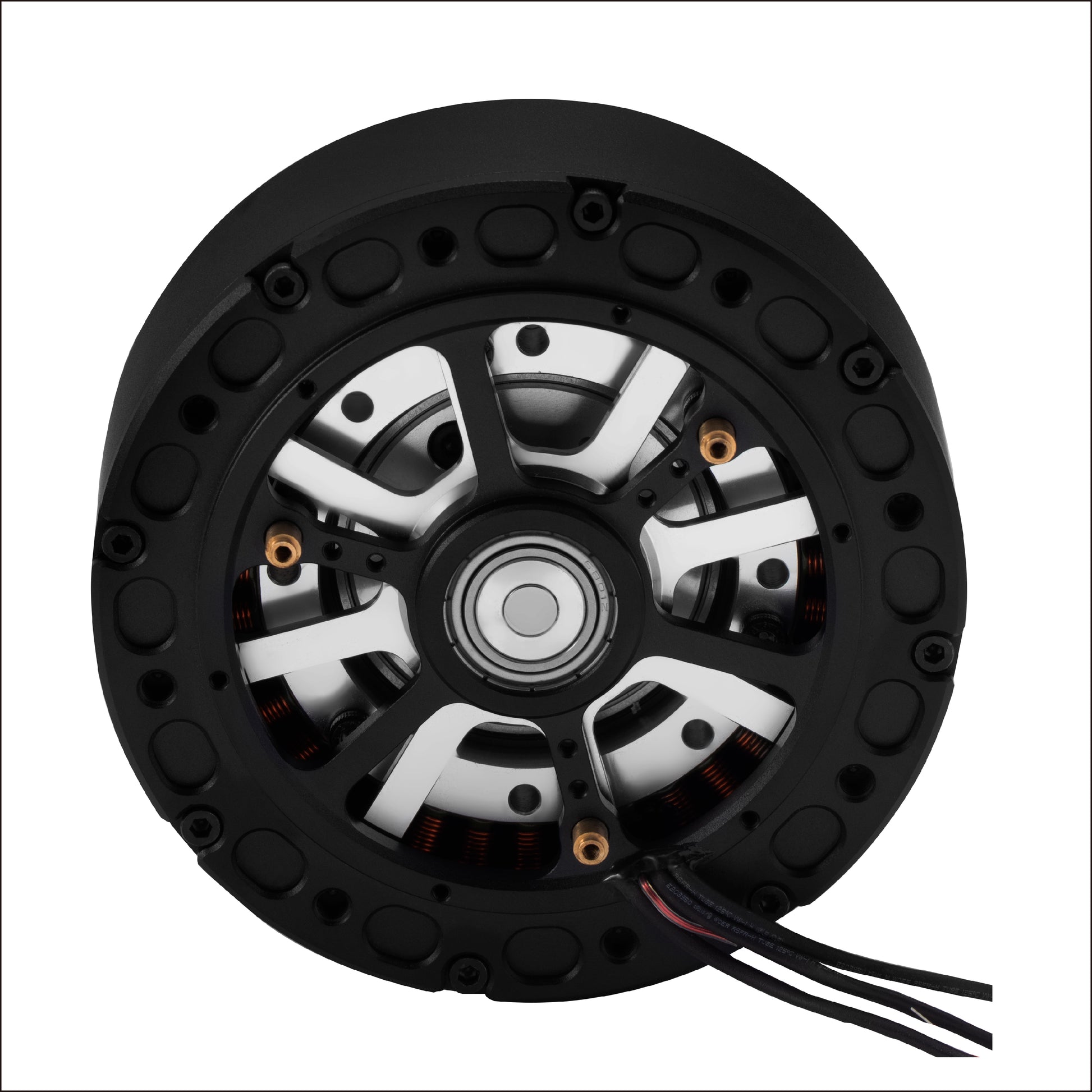

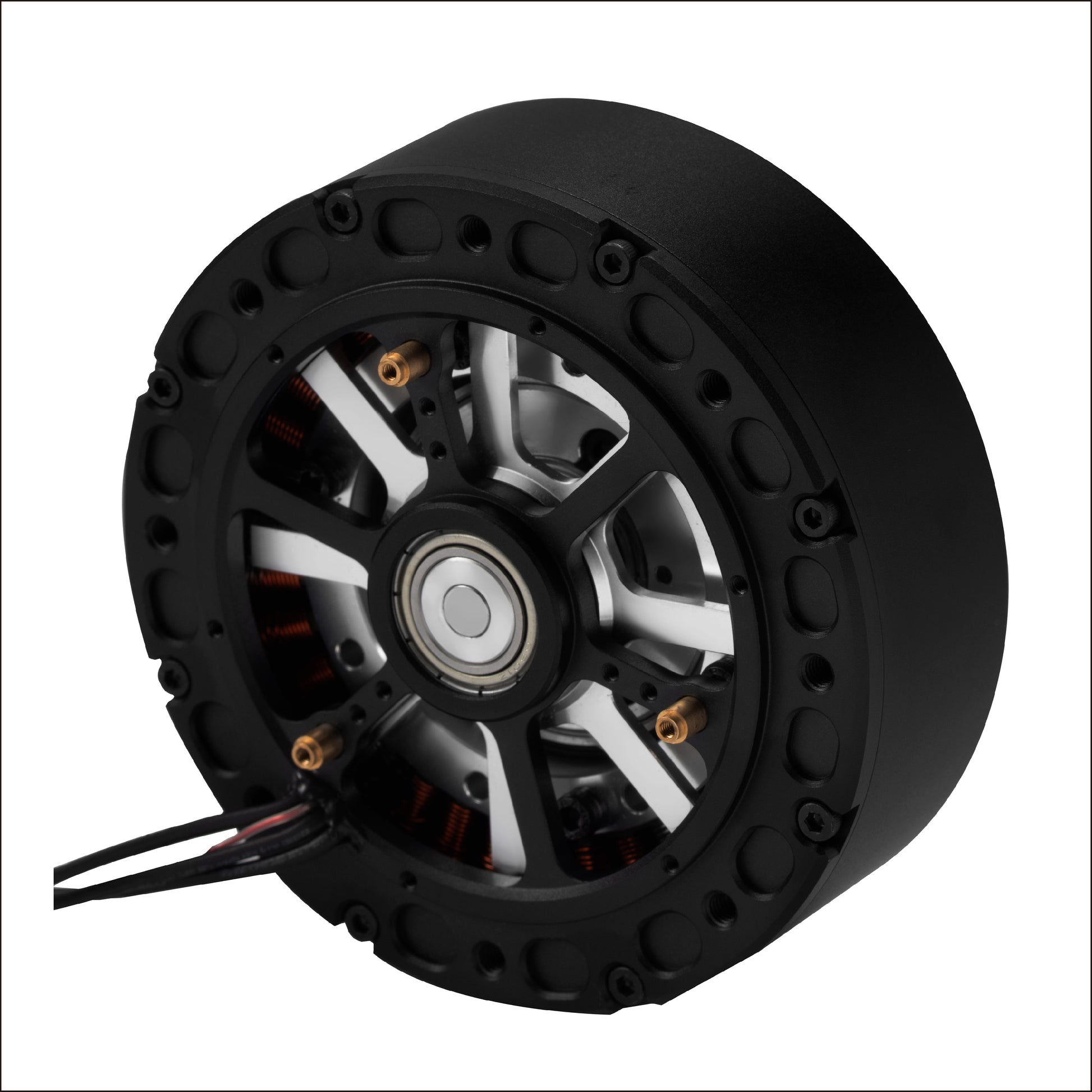

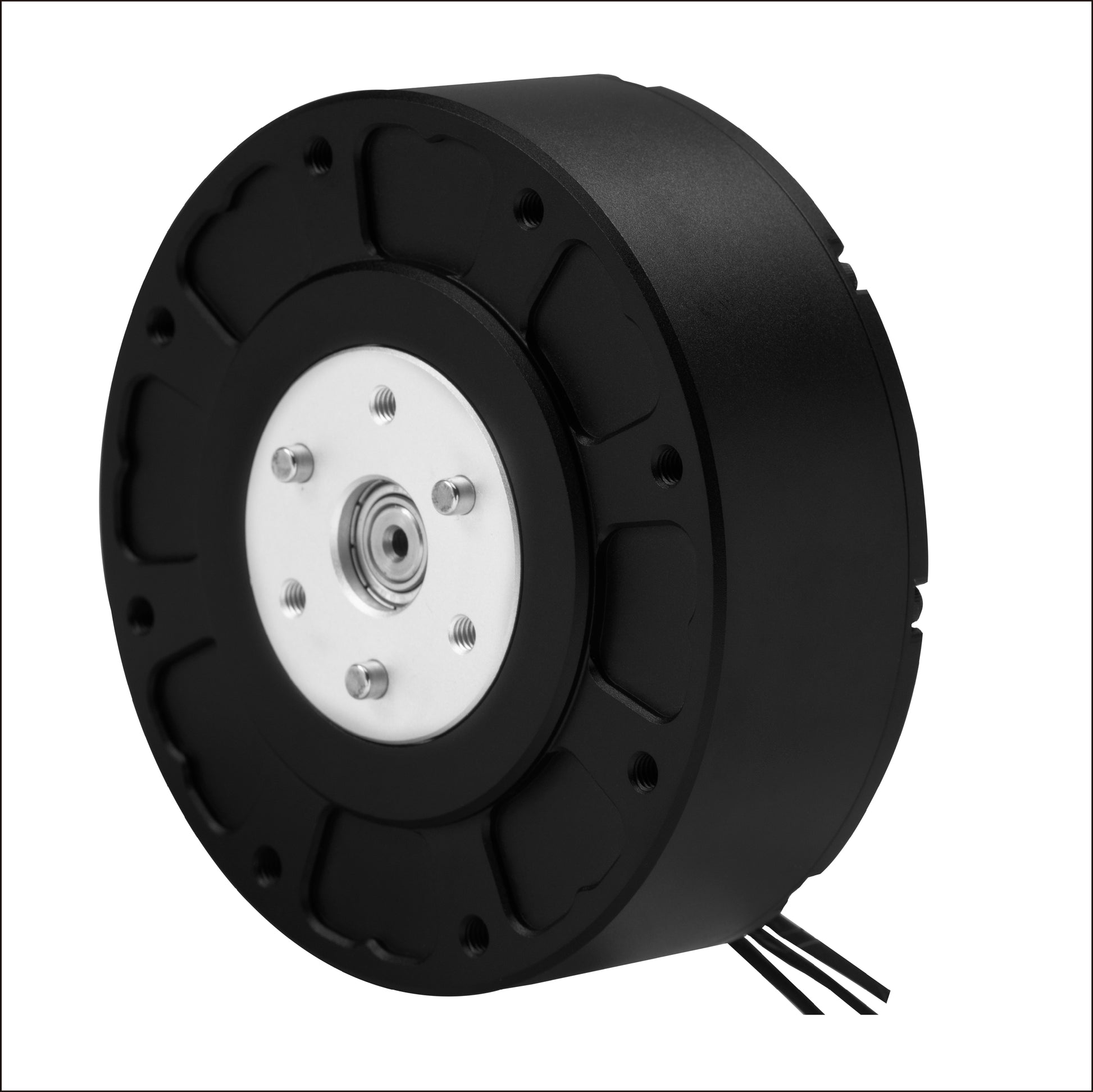

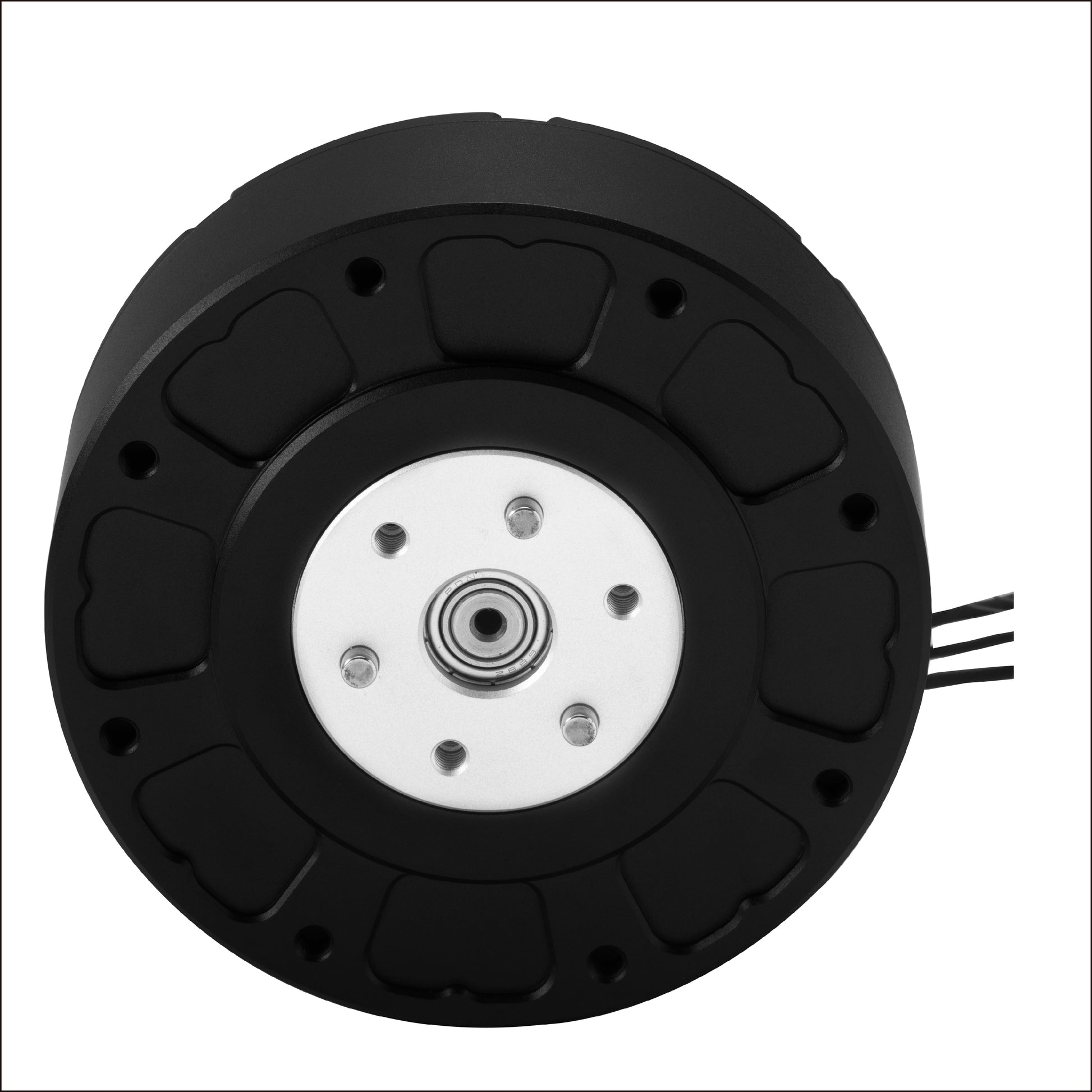

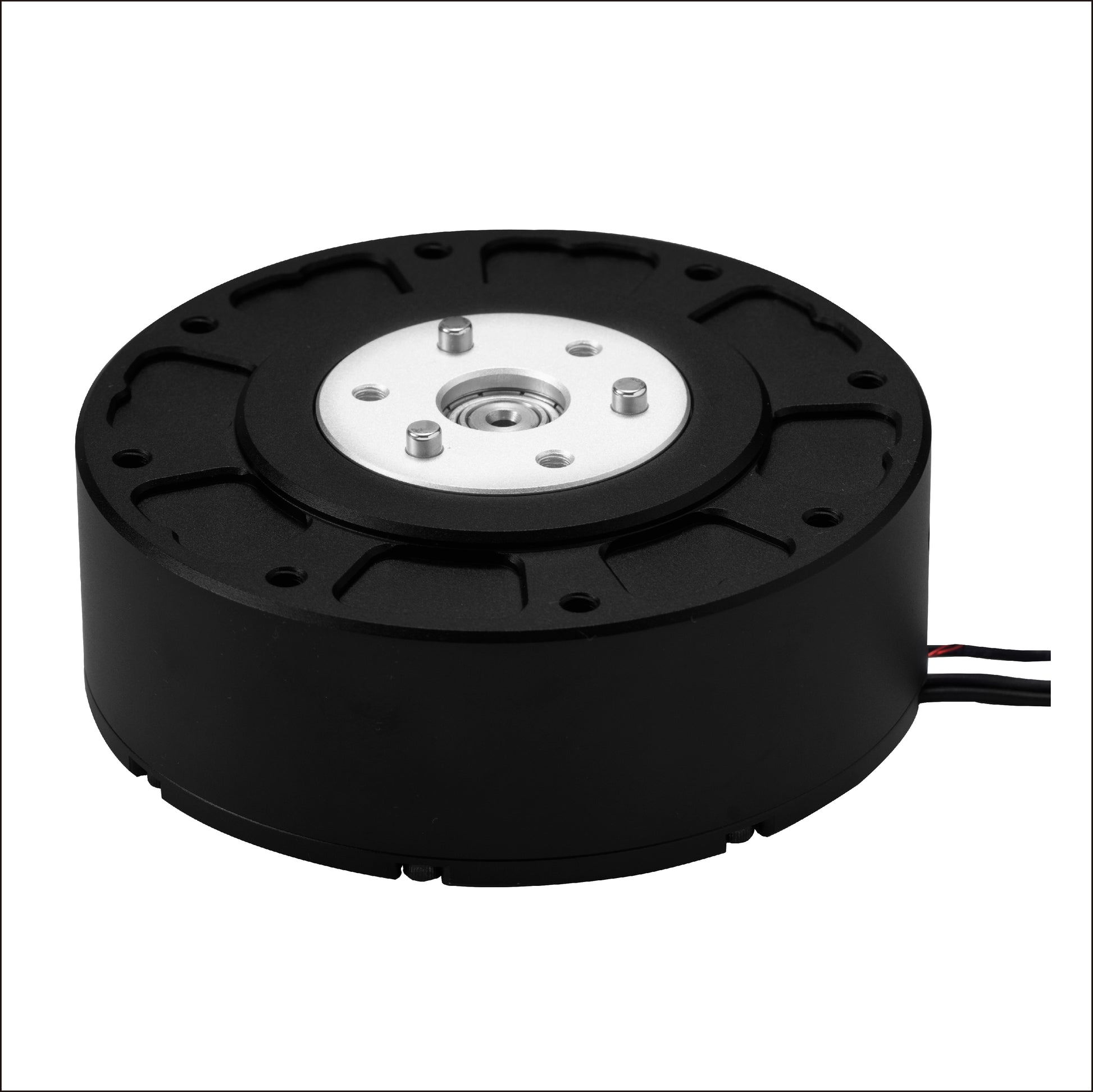

Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance
    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance

    Steadywin GIM8115-6 High Precision High Torque Mechanical Dog Joint Actuator High Performance

    (100+ ratings)
    $144.00
    $160.00
    GIM8115-6 Motor
    • without Driver
    • with GDM810 Driver
    • with GDS810 Driver
    • with GDZ810 Driver
    • with GDZ810 Driver with Secondary Encoder
    Operating Voltage
    • 24V
    • 48V

    Must-Read Before Ordering !!!

    Q&A

    Q 1 : What's the difference between GDZ810 driver, GDS810 driver and GDM810 driver?

    A : The GDZ810 driver board supports three communication protocols: CAN, 485, and Modbus,
    the GDS810 drive board supports CAN communication,
    the GDM810 driver is MIT driver.

    Q 2 : What's the function of the secondary encoder?

    A: The sole function of the secondary encoder is to remember the single-turn position after a power loss. 【 not to mitigate the backlash ! 】


    Please Note：

    If you need to use our host computer software to debug the motor, the following applies:

    · For the GDZ810 driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
    · For the GDS810 driver board, a CP2102 is needed.
    · For the GDM810 driver board, a USB2CAN adapter  must be used.



    CAD Files Download：
    GIM8115-6 2D Drawing
    GIM8115-6 3D Model.stp


    Document of Driver Download：
    GDZ810 Driver
    GDS810 Driver
    GDM810 Driver


    More Information：
    Planetary Reduction Motor Selection Table-GDZ Driver
    Planetary Reduction Motor Selection Table-GDS Driver.xlsx

    We apologize that some of the driver documentation is currently only available in Chinese.
    If you require additional materials, please visit:     http://steadywin.cn/.
    Should you be unable to find the necessary information or have any question,
    please contact us at
    Email：info@steadywin-motor.com
    Phone/ WeChat: (+86)13077918423
    WhatsApp: (+853)68619243

    Feel free to contact us for any needs.
    Customization is supported.

    Have a nice day!

    • Guarantee Safe
      Checkout

    trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4
    Estimate delivery times: 12-26 days (International)
    After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

    Description

    Shipping

    Returns

    Intelligence drives the future

    Unleash the power of precision and efficiency with the GIM8115-6 Planetary Gear Reducer – a game-changer in the world of robotics and automation! This state-of-the-art planetary reducer is engineered to deliver exceptional performance, boasting high power density and efficiency in a sleek, compact design that's perfect for space-constrained applications.

    Designed for robotic joints, mechanical dog joints, and other intricate motion systems, the GIM8115-6 operates seamlessly within a voltage range of 12-48V and a speed range of 159-245RPM. This wide operational range ensures that it can adapt to various project requirements, providing the flexibility you need to bring your ideas to life.

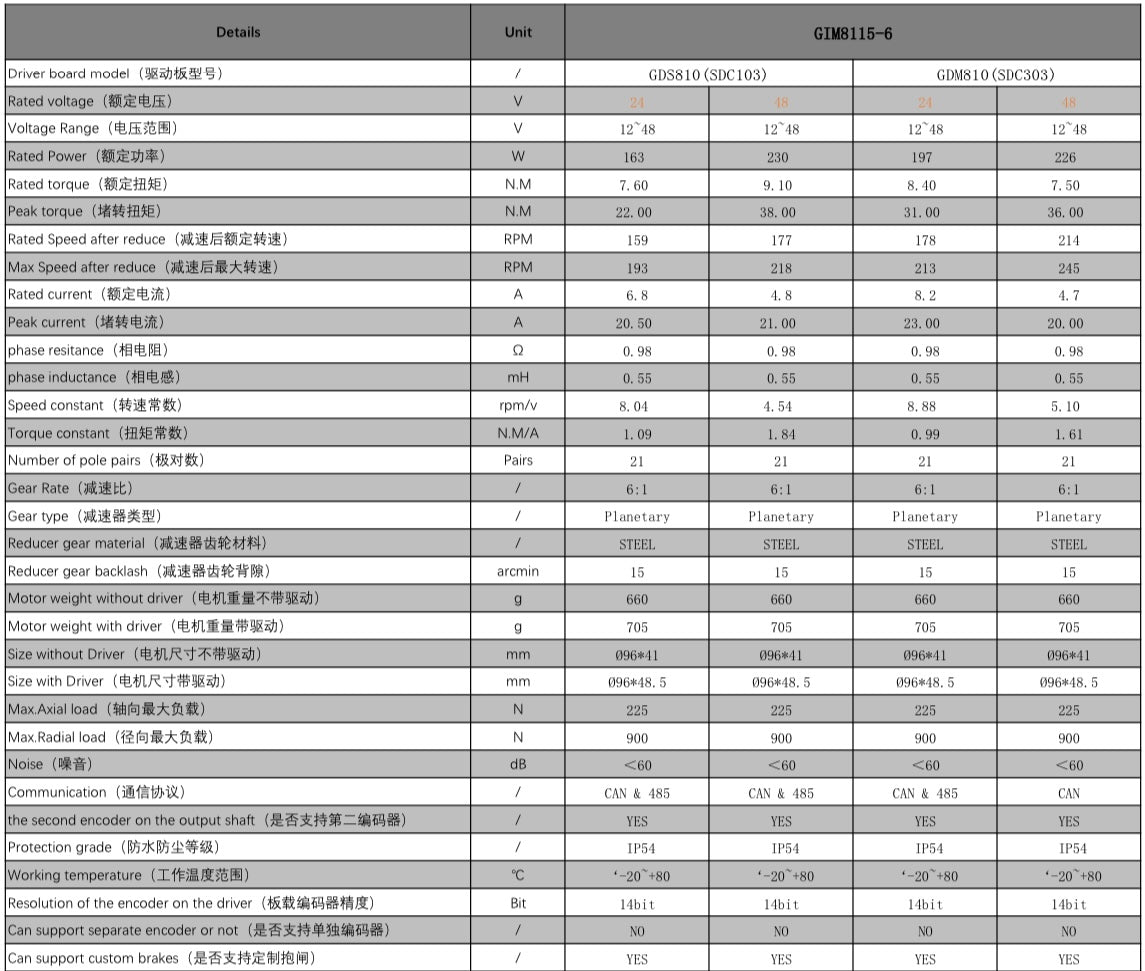

    detailed parameters

    Shipping

    • Delivery: 12–26 business days (we aim for 12–15 days but occasional delays occur).

    • Coverage: 150+ countries worldwide.

    • Tracking: Included! You’ll receive a tracking number via email once shipped.

    • Address accuracy: Double-check—we ship exactly where you tell us to!

    • No refunds for: Acts of God (storms, strikes), customs holds, or your typo in the address.

    • Questions: Drop us a line anytime—we’re here to help!

    Returns it

    The right of withdrawal may be exercised within 7 working days from the delivery date.


    In case that the reason for the return should not be related to a malfunction/defect of the product but rather to an afterthought/error of the measure chosen, the return costs are at the buyer's expences; he/she can then choose the shipping method he/she prefers.


    We remind you that the right of withdrawal lapses for personalized products.
