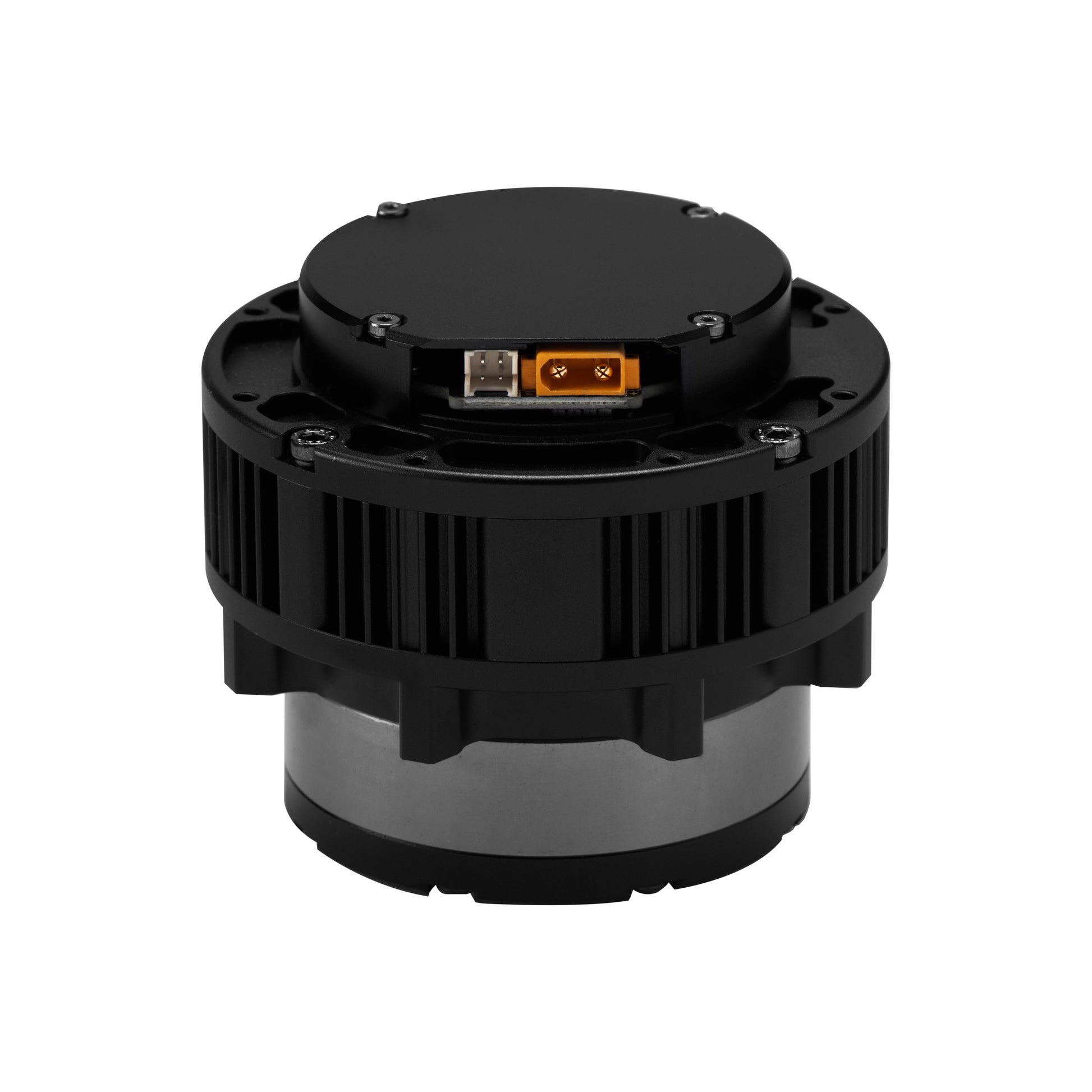

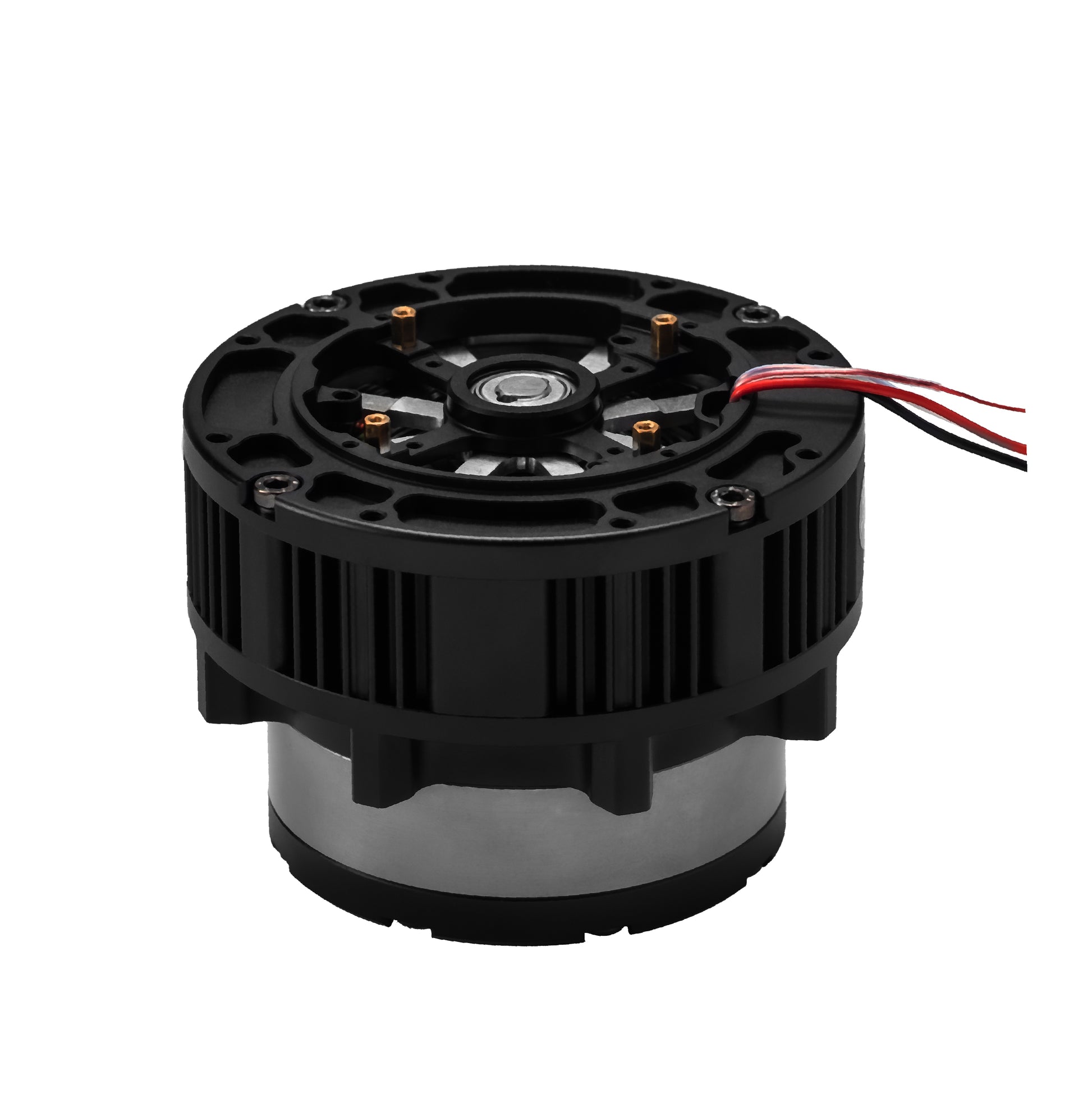

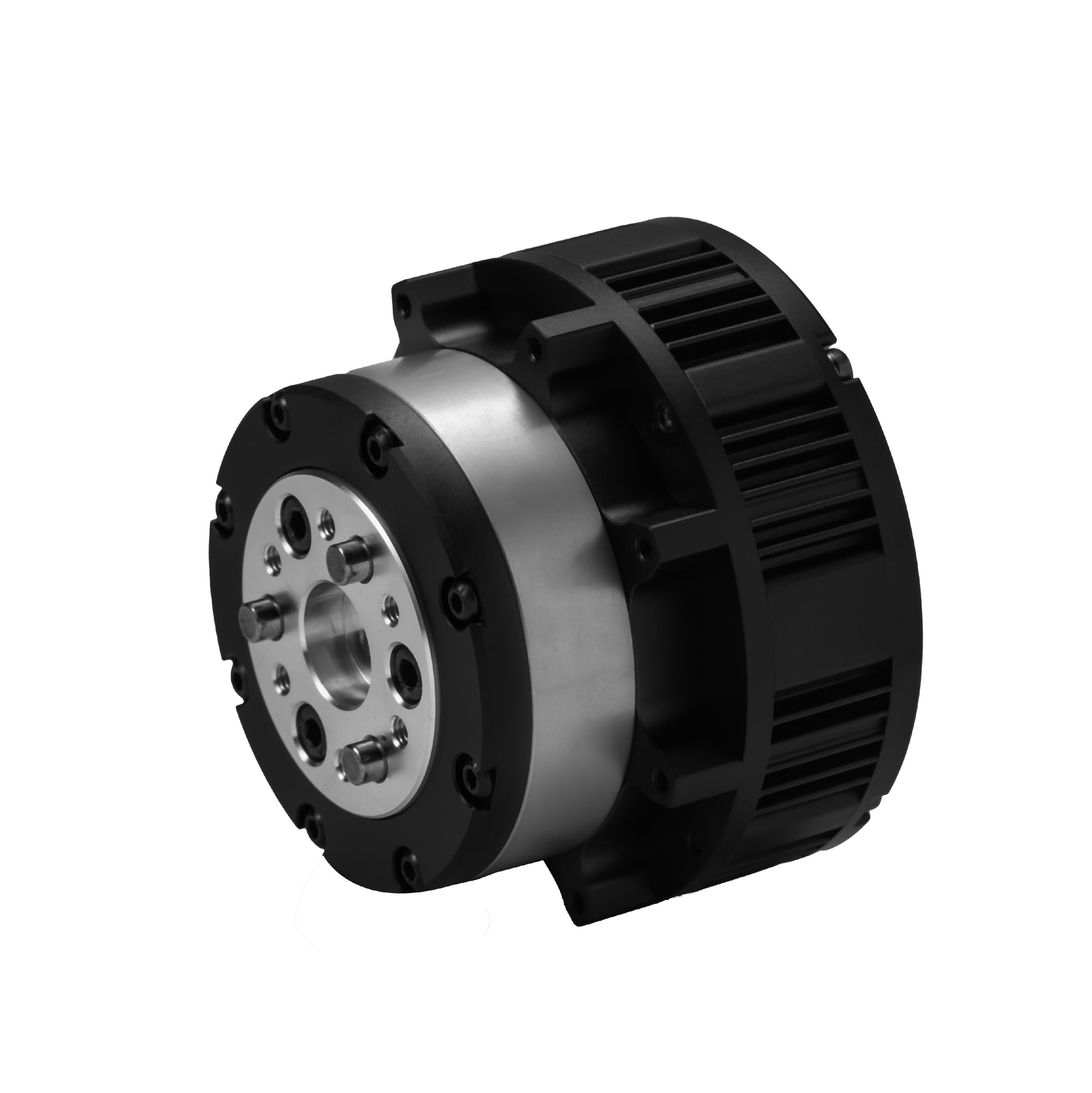

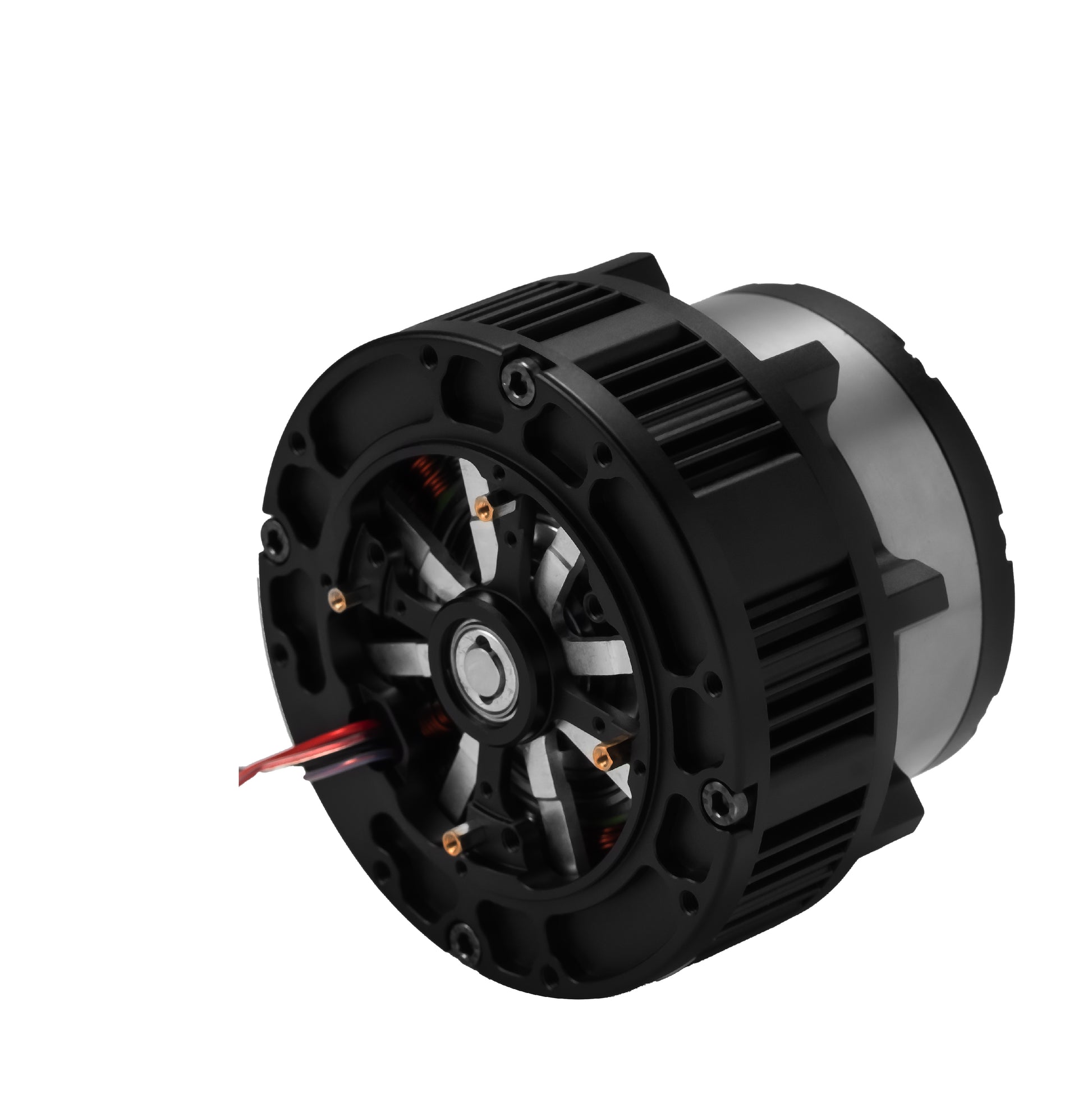

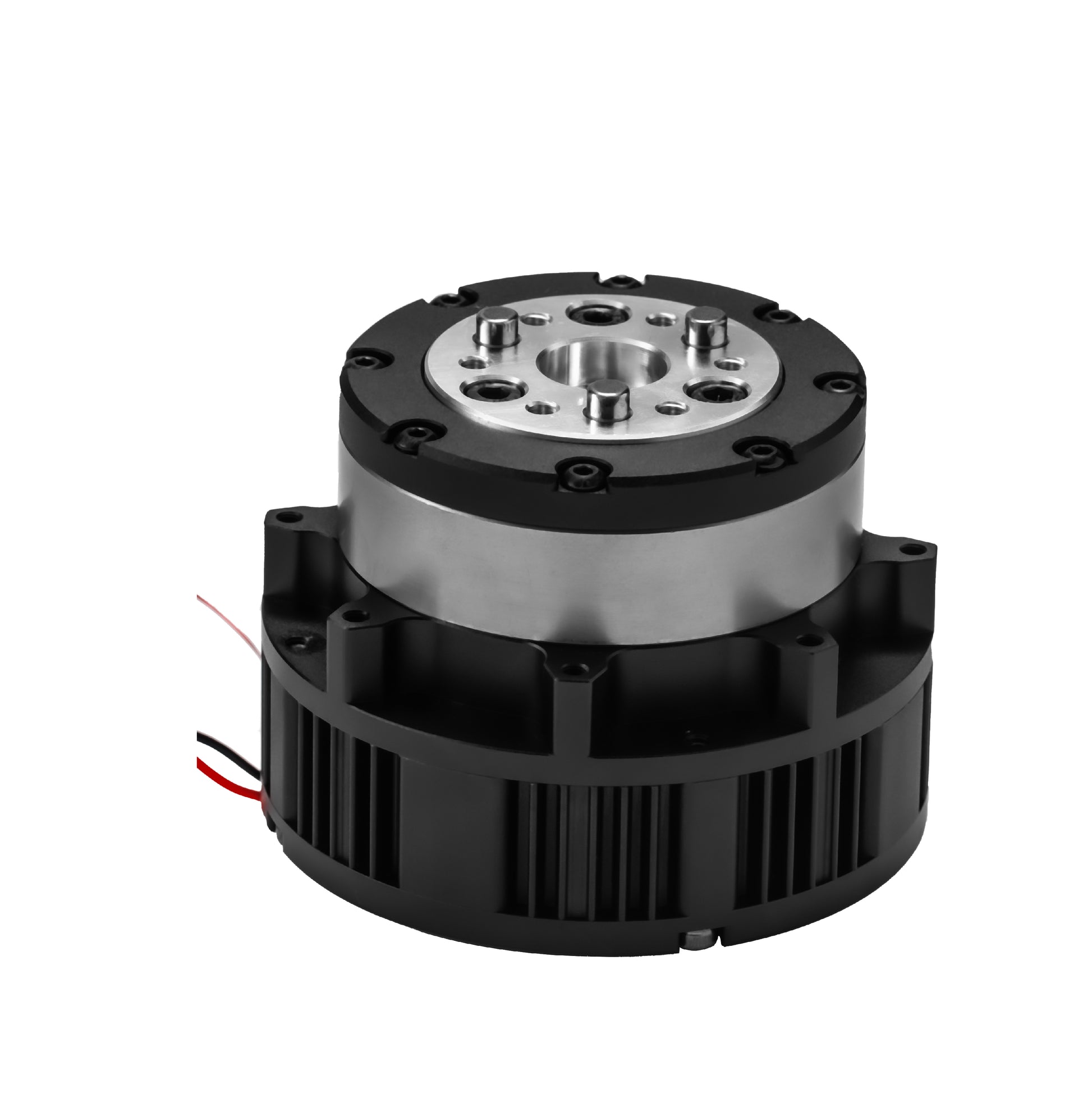

SteadyWin GIM6010-48 Two-stage Planetary Gear Reducer Robot Joint Module Industrial Robot Arm

SteadyWin GIM6010-48 Two-stage Planetary Gear Reducer Robot Joint Module Industrial Robot Arm

(100+ ratings)

$136.00

$185.00

GIM6010-48

without Driver
with GDS68 Driver
with GDZ468 Driver
with GDZ468 Driver with Secondary Encoder
with GDZ468H Driver
with GDZ468H Driver with Secondary Encoder
with GDZ468 Driver with Secondary Encoder（Brake Version)

Quantity

Must-Read Before Ordering !!!

Q&A

Q 1 : What's the difference between GDZ468/GDZ468H driver and GDS68 driver?

A : The GDZ468 or GDZ468H driver board supports three communication protocols: CAN, 485, and Modbus,
while the GDS68 drive board supports CAN communication.

Q 2 : What's the difference between GDZ468 driver and GDZ468H driver?

A : The only difference between GDZ468 and GDZ468H is that the operating voltage range of GDZ468 is 12-40V, while the operating voltage range of GDZ468H is 12-52V.

Q 3 : What's the function of the secondary encoder?

A: The sole function of the secondary encoder is to remember the single-turn position after a power loss. 【 not to mitigate the backlash】

Please Note：

If you need to use our host computer software to debug the motor, the following applies:

· For the GDZ468 or GDZ468H driver board, a USB-to-485 adapter is required (please note that some other brands may not be compatible; it is available for purchase if needed).
· For the GDS68 driver board, a Type-C cable is needed.

CAD Files Download：
GIM6010-48 2D Drawing
GIM6010-48 3D Model.STEP

Document of Driver Download：
GDZ468/GDZ468H Driver
GDS68 Driver

More Information：
Planetary Reduction Motor Selection Table-GDZ Driver
Planetary Reduction Motor Selection Table-GDS Driver.xlsx

We apologize that some of the driver documentation is currently only available in Chinese.
If you require additional materials, please visit: http://steadywin.cn/.
Should you be unable to find the necessary information or have any question,
please contact us at
Email：info@steadywin-motor.com
Phone/ WeChat: (+86)13077918423
WhatsApp: (+853)68619243

Feel free to contact us for any needs.
Customization is supported.

Have a nice day!

Guarantee Safe
Checkout

trust_2dea69ed-7223-44f3-828d-a80bc0f3aef4

Estimate delivery times: 12-26 days (International)

After receiving the product, if there are any quality issues, please apply for a refund within 7 days of receipt.

Intelligence drives the future

Introducing the revolutionary GIM6010-48 Planetary Gear Reducer – the ultimate solution for precision motion control in robotics and automation! Designed with cutting-edge technology, this planetary reducer offers unparalleled performance, combining high power density and efficiency in a compact, space-saving design.

Whether you're building robotic joints, mechanical dog joints, or any other intricate motion systems, the GIM6010-48 is your go-to choice. With a voltage range of 12-56V and an operating speed range of 20-70RPM, it provides the flexibility and versatility needed for a wide array of applications.
